Arclight Dynamics Arc Pro Ultra V3 5x10

Q: How much does the Arclight Dynamics Arc Pro Ultra V3 5x10 cost?

The price estimate for the Arclight Dynamics Arc Pro Ultra V3 5x10 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/arclight-dynamics-arc-pro-ultra-v3-5x10#price; the request is passed to Arclight Dynamics or an authorised dealer.

Specs verified 2026-10-05 · arclightcnc.com Updated 2026-10-05

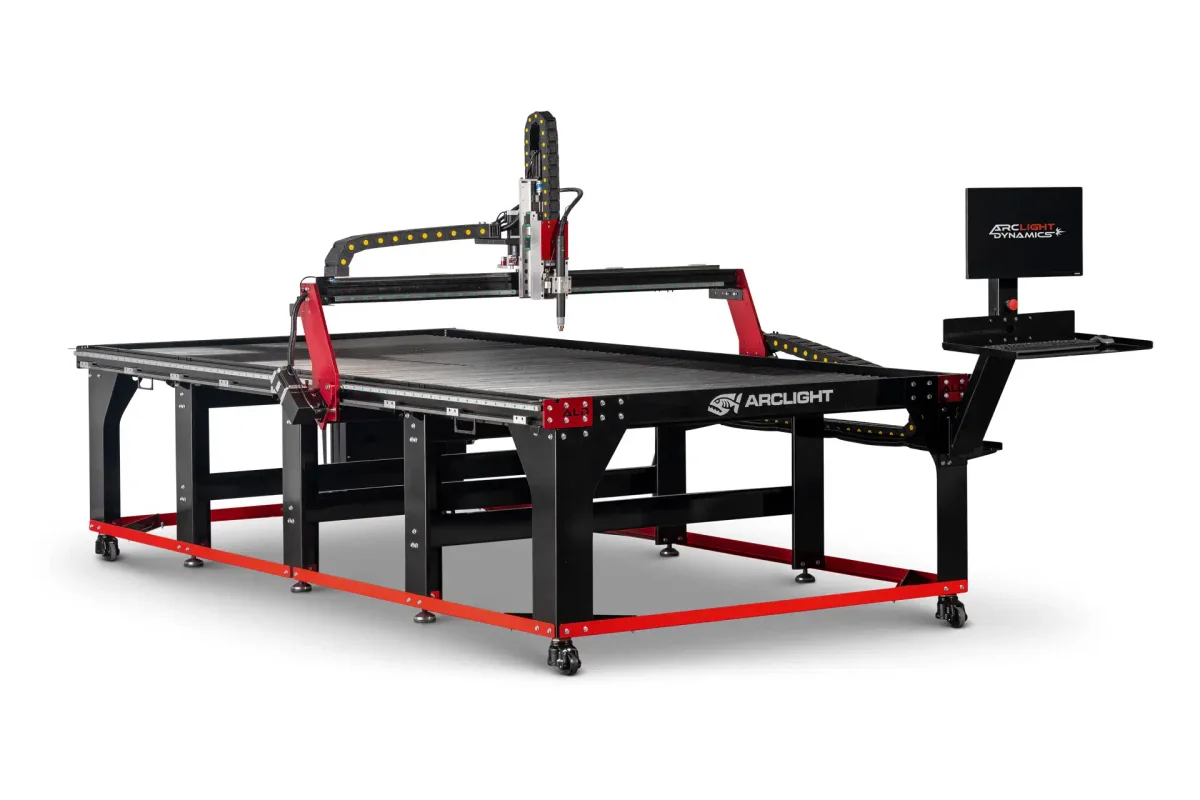

Arclight Dynamics Arc Pro Ultra V3 5x10 CNC plasma table

Image: arclightcnc.com, Arclight Dynamics

Key Specifications

Accuracy

0.001 in (0.025 mm)

cutting area

65 x 132 x 9 in (1,651 x 3,353 x 229 mm)

max plate thickness

1.5 in (38 mm) mild steel

machine dimensions

93 x 186 in and 74 in tall (2,362 x 4,724 x 1,880 mm)

base dimensions

73 x 145 in (1,854 x 3,683 mm)

machine weight

1,300 lb (590 kg)

How much does the Arclight Dynamics Arc Pro Ultra V3 5x10 cost?

Price estimate

Uncertain

We do not have a price for the Arclight Dynamics Arc Pro Ultra V3 5x10 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Arclight Dynamics Arc Pro Ultra V3 5x10 is the largest table in its series, with a 65 x 132 in cutting envelope and 9 in of Z. It is the Arc Pro platform running Arclight's own Arc CNC software. A 5 x 10 sheet fits with length to spare, and a 4 x 8 sheet leaves a full strip free down one side.

Arclight builds the Arc Pro Ultra V3 on a steel frame with leveling rollers as standard equipment and encloses the wiring. A dual-drive gantry on machined aluminum risers is pushed by NEMA 34 motors through planetary gear boxes, and it runs on Hiwin 20 mm linear guide rails. The torch is carried by a ball screw Z axis. The table is rated for 1.5 in mild steel and a positioning accuracy of 0.001 in.

Size shows up everywhere else too. The water pan holds 158.5 gallons, the base is 73 x 145 in, and overall dimensions are listed as 93 x 186 in and 74 in tall. The table weighs 1,300 lb. A 5 x 10 sheet is beyond hand loading in anything but thin gauge, so lifting gear belongs in the plan.

Arc CNC software drives the table from an industrial Linux system over Ethernet. An operator can rewind or fast forward along the cut path after a fault, pick up from the start point after a power-down, and run the laser along the path as a dry run before committing a sheet. A plate-skew angle is entered in the software, so a sheet that lands crooked does not have to be moved. Torch height control and dynamic voltage sampling are standard. A plasma cutter is not included in the base table.

Full Specifications

Parameter	Value
Cutting Area	65 x 132 x 9 in (1,651 x 3,353 x 229 mm)
Max Plate Thickness	1.5 in (38 mm) mild steel
Machine Dimensions	93 x 186 in and 74 in tall (2,362 x 4,724 x 1,880 mm)
Base Dimensions	73 x 145 in (1,854 x 3,683 mm)
Machine Weight	1,300 lb (590 kg)
Water Pan Capacity	158.5 gallons (600 L)
Positioning Accuracy	0.001 in (0.025 mm)
Frame	Steel
Gantry	Dual-drive gantry with machined aluminum risers
Motors	NEMA 34 stepper motors with planetary gear boxes
Z Axis Drive	Ball screw
Linear Guides	Hiwin 20 mm precision linear guide rails
CNC Control	Arc CNC software (industrial Linux, Ethernet communications)
Table Power	110 V / 15-20 A

Specifications sourced from arclightcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

NEMA 34 motors with planetary gear boxes and a ball screw Z axis
Arc CNC software with cut-path rewind, start point recovery after power-down and auto rip cut
Hiwin 20 mm precision linear guide rails with dual seals and scrapers
Largest envelope in the series: 65 x 132 in

Limitations

The plasma cutter is a separate choice and is not part of the base table
Stepper driven, with no servo option listed on the page
158.5 gallons of water to fill and maintain, and overall dimensions of 93 x 186 in and 74 in tall

Best For

Production nesting on 5 x 10 sheet Long parts such as rails, stringers and trailer components Fabricators who want the maker's own control with no third-party software

Frequently Asked Questions

01 What is the cutting area of the Arc Pro Ultra V3 5x10?

65 x 132 in, with 9 in of Z. That covers a 5 x 10 sheet with margin. The table is rated for 1.5 in mild steel and weighs 1,300 lb.

02 How thick can the Arc Pro Ultra V3 cut?

The table is rated for 1.5 in thick mild steel. What it actually cuts depends on the plasma cutter paired with it, which is selected separately. The cutting envelope allows 9 in in Z.

03 What space and services does the Arc Pro Ultra V3 5x10 need?

The base is 73 x 145 in and overall dimensions are 93 x 186 in and 74 in tall. The pan takes 158.5 gallons of water and the table runs on 110 V at 15 to 20 A. Add clear floor on one side for a 5 x 10 sheet.

04 What drive system does the Arc Pro Ultra V3 use?

NEMA 34 stepper motors with planetary gear boxes on a dual-drive gantry, Hiwin 20 mm precision linear guide rails and a ball screw Z axis. Arclight lists positioning accuracy as 0.001 in. The gantry risers are machined aluminum to keep the moving mass low.
