Emco Mecmill

Specs verified 2026-10-05 · emco-world.com Updated 2026-10-05

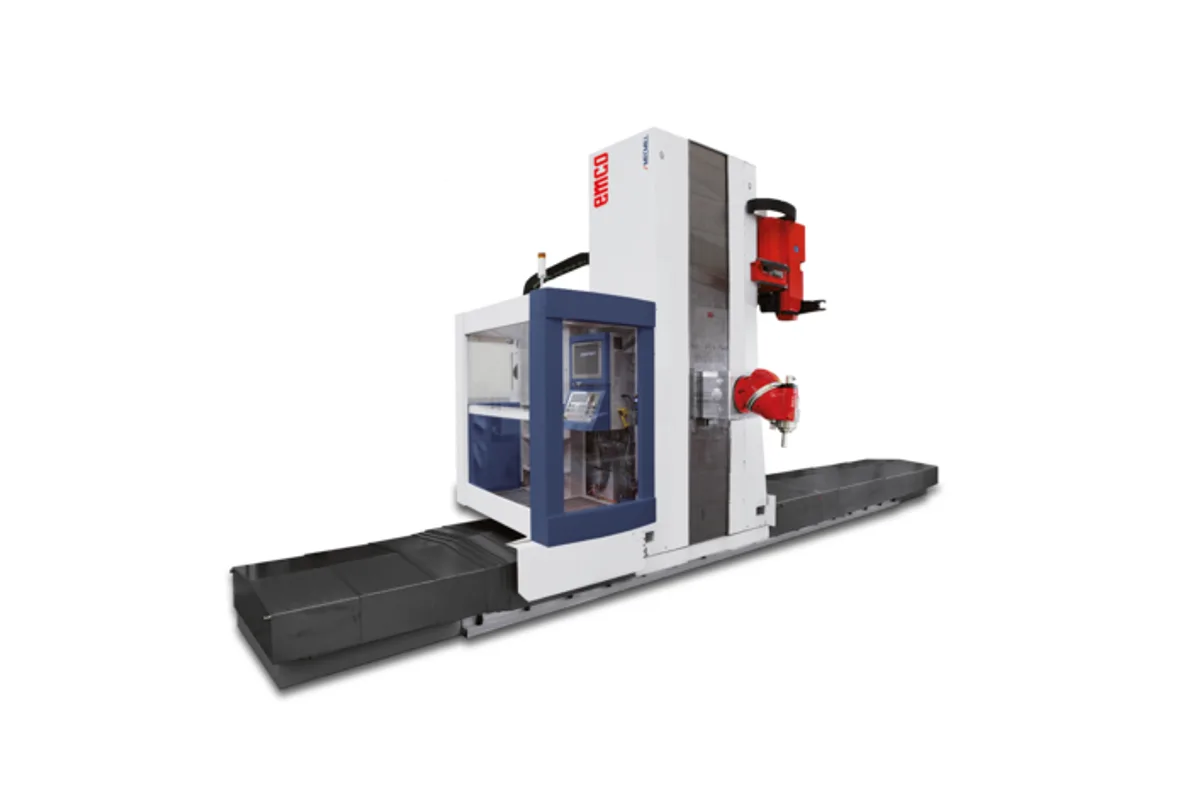

Image: emco-world.com, Emco

Key Specifications

Tool Capacity

40 / 60 / 80 / 100 / 120 / 203 pockets

x axis travel

6000 - 16000 mm

y axis travel

1,600 mm (63.0 in)

z axis travel

3500 - 4000 mm

ram dimensions

500 x 500 mm

feed rate

30 m/min (1,181 ipm)

How much does the Emco Mecmill cost?

Price estimate

Uncertain

We do not have a price for the Emco Mecmill that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Emco Mecmill is a large travelling-column machine with a cross axis: the column moves 6000 - 16000 mm along the bed and 1,600 mm (63.0 in) across it, and the head climbs 3500 - 4000 mm. It works in 3+2 axes as standard, with heads for 5 continuous axes available.

Emco describes the layout as a cross axis and a moving column in box-in-box design, which sets it apart from the horizontal-ram Ecomill models. The ram has a section of 500 x 500 mm. A square, fully enclosed ram of that size resists both bending and twist when it is extended, and on tall parts that keeps the cut more consistent from the bottom of the vertical travel to the top.

The spindle motor is 40 kW 1200 Nm. At the universal head the brochure lists 38 / 57 kW and 1000 / 1500 Nm at 15 ÷ 6000 rpm. That is roughing torque for big face mills and long boring tools. High-speed spindles handle the finishing, among them 45 / 58 kW, 300 / 372 Nm (S1 / S6), 12000 rpm, HSK 100-A and 42 / 55 kW, 67 / 87.5 Nm (S1 / S6), 24000 rpm, HSK 63-A, and fork-type heads reach 24,000 rpm.

Heads change from a magazine with 2 / 3 / 4 pockets, and tools from one with 40 / 60 / 80 / 100 / 120 / 203 pockets. Feed rate is 30 m/min (1,181 ipm), through-spindle coolant 20 l/min, 20/40/60/80 bar. The controls named are Heidenhain TNC7 / Siemens Sinumerik One.

Full Specifications

Parameter	Value
X Axis Travel	6000 - 16000 mm
Y Axis Travel	1,600 mm (63.0 in)
Z Axis Travel	3500 - 4000 mm
Ram Dimensions	500 x 500 mm
Feed Rate	30 m/min (1,181 ipm)
CNC Control	Heidenhain TNC7 / Siemens Sinumerik One
Spindle Motor	40 kW 1200 Nm
Coolant Low Pressure	28 l/min, 6 bar
Coolant Through Spindle	20 l/min, 20/40/60/80 bar
Universal Head Option Speed	6000 ÷ 8000 rpm
Offset Spindle Head Speed	3,000 rpm
Fork Head Speed	24,000 rpm
Tool Capacity	40 / 60 / 80 / 100 / 120 / 203 pockets
Head Magazine	2 / 3 / 4 pockets
Universal Head Power	38 / 57 kW
Universal Head Torque	1000 / 1500 Nm
Universal Head Speed	15 ÷ 6000 rpm
Universal Head Tool Taper	ISO 50 DIN 69871 (options: BIG PLUS, HSK-100-A DIN 69893)
High Speed Spindle 50 63 Kw	50 / 63 kW, 100 / 125 Nm (S1 / S6), 12000 / 20000 rpm, HSK 100-A / HSK 63-A
High Speed Spindle 45 58 Kw	45 / 58 kW, 300 / 372 Nm (S1 / S6), 12000 rpm, HSK 100-A
High Speed Spindle 42 55 Kw	42 / 55 kW, 67 / 87.5 Nm (S1 / S6), 24000 rpm, HSK 63-A

Specifications sourced from emco-world.com — verified 2026-10-05

Strengths & Limitations

Strengths

Vertical travel of 3500 - 4000 mm with 6000 - 16000 mm longitudinally
Cross axis of 1,600 mm (63.0 in) moving the whole column
Universal head with 1000 / 1500 Nm
Head magazine with 2 / 3 / 4 pockets
Tool magazine of 40 / 60 / 80 / 100 / 120 / 203 pockets

Limitations

The smallest version already has 6000 mm of longitudinal travel
Universal head speed is 15 ÷ 6000 rpm; finishing needs a high-speed spindle
The Mecmill Plus offers more vertical travel and a larger ram
The brochure prints two technical tables that differ in details such as coolant pressure and magazine size

Best For

Tall, heavy workpieces up to 3500 - 4000 mm high Large machine frames, housings and press parts Heavy roughing with a mechanical head Long parts set up along a bed of 6000 - 16000 mm

Frequently Asked Questions

01 What are the travels of the Mecmill?

Longitudinal travel is 6000 - 16000 mm, cross travel 1,600 mm (63.0 in) and vertical travel 3500 - 4000 mm. The ram measures 500 x 500 mm and the feed rate is 30 m/min (1,181 ipm).

02 Is the Mecmill a 5-axis machine?

The product page lists 3+2 axes for the basic machine and power milling heads with 5 continuous axes as an alternative. Fork-type heads with high-speed spindle are listed at 24,000 rpm.

03 How much torque does the head have?

The universal milling head is rated 38 / 57 kW and 1000 / 1500 Nm (S1/S6) at 15 ÷ 6000 rpm. The spindle motor is 40 kW 1200 Nm.

04 How does the Mecmill differ from the Mecmill Plus?

The Mecmill Plus has a vertical travel of 4000 - 5000 mm, a ram of 550 x 600 mm and a feed rate of 25 m/min (984 ipm). The Mecmill has 3500 - 4000 mm, a 500 x 500 mm ram and 30 m/min (1,181 ipm).
