Durma HD-TC 60350 MEGA
Key Specifications
Accuracy
max pipe diameter
max square profile
max rectangular profile
min pipe diameter
max material length
How much does the Durma HD-TC 60350 MEGA cost?
Price estimate
We do not have a price for the Durma HD-TC 60350 MEGA that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Durma HD-TC 60350 MEGA opens the heavy end of the HD-TC tube laser range. Its chucks take round tube up to Ø350 mm (13.8 in) and square or rectangular profile up to 350 x 350 mm (13.8 x 13.8 in), in material up to 6,500 mm (255.9 in) long. Compared with the HD-TC 60220, section weight more than doubles: 125 kg/m and 800 kg (1,764 lb) per workpiece.
Sections of that mass change how the machine is built and fed. A chain loader is standard and is described as a semi automatic loading unit for material 4,500-6,500 mm long, and a chain unloader is standard on the output side with an unloading length of 6,000 mm (236.2 in). The chuck centre sits at 1,400 mm (55.1 in).
The table lists the minimum length of remaining material as 0 mm. For structural tube at this weight per metre, bar-end loss is a real material saving, and it is the figure that most separates the MEGA machines from the smaller models.
Rotation is slower, as it has to be with this much mass in the chucks: 320 °/s on the A axis. The X axis runs at 80 m/min, Y and Z at 30 m/min. Positioning accuracy remains ±0.2 mm with ±0.05 mm positioning variation. The smallest tube is Ø20 mm (0.8 in). Open L, U and H sections can be cut with the slim-type head for H; the open-profile size row on this model's page is printed without a unit, so confirm it with Durma. The control is Durma CNC Aurora.
Full Specifications
| Parameter | Value |
|---|---|
| Max Pipe Diameter | Ø350 mm (13.8 in) |
| Max Square Profile | 350 x 350 mm (13.8 x 13.8 in) |
| Max Rectangular Profile | 350 x 350 mm (13.8 x 13.8 in) |
| Min Pipe Diameter | Ø20 mm (0.8 in) |
| Max Material Length | 6,500 mm (255.9 in) |
| Min Remaining Material Length | 0 mm |
| Unloading Length | 6,000 mm (236.2 in) |
| Automatic Unloading Unit | Standard (Chain Unloader) |
| Max Material Weight | 125 kg/m |
| Max Workpiece Weight | 800 kg (1,764 lb) |
| Semi Automatic Loading Length Range | 4,500-6,500 mm |
| Semi Automatic Loading Unit | Standard Chain Loader |
| Profile Types | Round, Square, Rectangular, Eliptic |
| Open Profile Types | L, U, H |
| Chuck Center Height | 1,400 mm (55.1 in) |
| X Axis Speed | 80 m/min |
| Y Axis Speed | 30 m/min |
| Z Axis Speed | 30 m/min |
| A Axis Speed | 320 °/s |
| Positioning Accuracy | ±0.2 mm |
| Positioning Variation | ±0.05 mm |
| Tube Center Search Capacitive Sensor | Yes |
| CNC Control | Durma CNC Aurora |
Specifications sourced from durmazlar.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- Ø350 mm (13.8 in) round and 350 x 350 mm (13.8 x 13.8 in) square capacity
- 125 kg/m material weight and 800 kg (1,764 lb) total workpiece weight
- Minimum remaining material listed as 0 mm
- Chain loader and chain unloader are both standard
- X axis travels at 80 m/min along the tube
Limitations
- A axis turns at 320 °/s, against 840 °/s on the HD-TC 60220
- Y axis speed is limited to 30 m/min
- Loading is semi automatic by chain, for material from 4,500 mm upward
- Laser power is not stated in the brochure table
Best For
Frequently Asked Questions
01
Round tube from Ø20 mm (0.8 in) to Ø350 mm (13.8 in) and square or rectangular profile up to 350 x 350 mm (13.8 x 13.8 in). Material length is up to 6,500 mm (255.9 in), material weight up to 125 kg/m and total workpiece weight up to 800 kg (1,764 lb).
02
Durma lists a standard chain loader as the semi automatic loading unit, for material 4,500-6,500 mm long, and a standard chain unloader as the automatic unloading unit. Unloading length is 6,000 mm (236.2 in).
03
The X axis runs at 80 m/min, the Y and Z axes at 30 m/min, and the A axis rotates at 320 °/s. Positioning accuracy is ±0.2 mm and positioning variation ±0.05 mm.
04
Yes. The HD-TC 120350 MEGA has the same section capacity and takes material up to 12,500 mm (492.1 in) with a total workpiece weight of 1,500 kg (3,307 lb). Durma's brochure also shows a further MEGA page for this section size, but it repeats the 6,500 mm (255.9 in) length of this model.
More from Durma
Other CNC Laser Cutting Machines

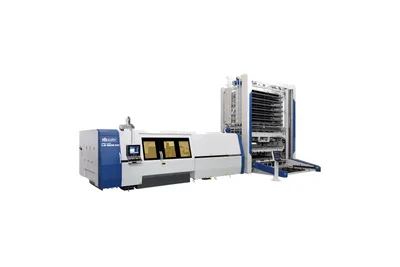

Muratec LS3015MC

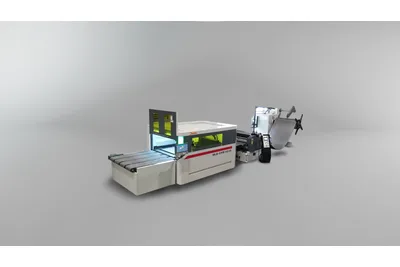

Baykal BLE CFS

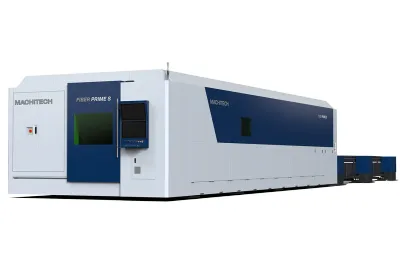

Machitech Fiber Prime S 5x10
Bodor C Series

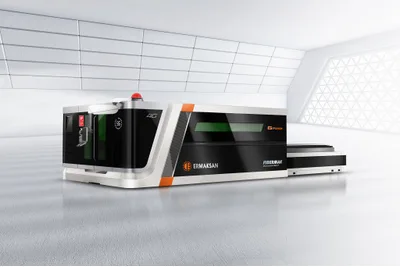

Ermak Fibermak Momentum Gen-5 SM 2.5x1.25
