Boschert FiberLaser

Specs verified 2026-10-05 · boschert.de Updated 2026-10-05

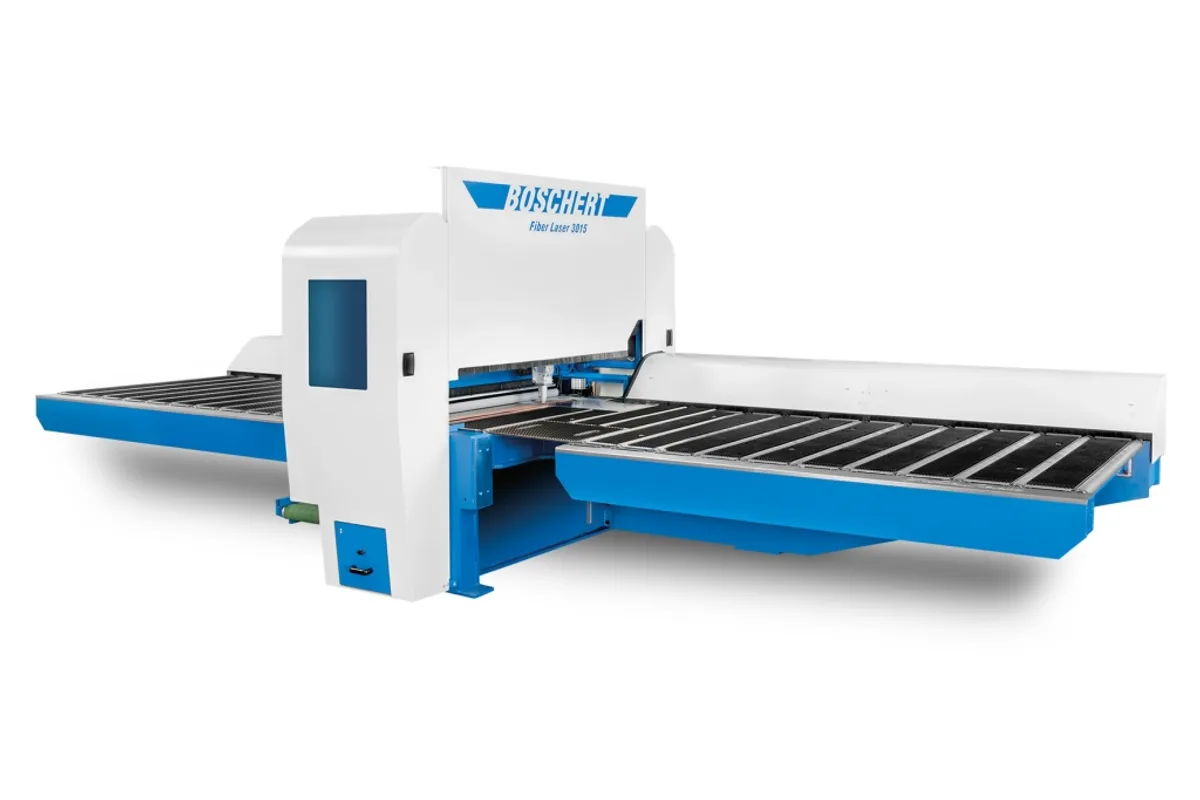

Image: boschert.de, Boschert

Key Specifications

Repeatability

+/- 0.10 mm when lasering contours

x axis travel

3015: 3,000 mm (118.1 in); 4020: 4,000 mm (157.5 in)

y axis travel

3015: 1,500 mm (59.1 in); 4020: 2,000 mm (78.7 in)

z axis travel

250 mm (9.8 in)

machine dimensions l x w x h

3015: 8,600 x 4,200 x 2,200 mm (338.6 x 165.4 x 86.6 in); 4020: 10,600 x 4,700 x 2,200 mm (417.3 x 185.0 x 86.6 in)

machine weight

3015: 8,000 kg (17,637 lb); 4020: 9,500 kg (20,944 lb)

How much does the Boschert FiberLaser cost?

Price estimate

Uncertain

We do not have a price for the Boschert FiberLaser that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Boschert FiberLaser is a flat-bed fiber laser cutting machine built in two sizes. The 3015 travels 3,000 mm in X and 1,500 mm in Y; the 4020 travels 4,000 mm and 2,000 mm. Z travel is 250 mm on both, and the laser source can be 1000 W, 2000 W, 3000 W or 4000 W.

Boschert's recommended cutting performance is conservative and worth reading closely. Mild steel is 6 mm at 1000 W and 10 mm from 2000 W upward. Stainless steel is 4 mm, 8 mm and then 10 mm. Aluminium runs 3 mm, 6 mm, 8 mm and 10 mm across the four sources, and copper 2 mm, 4 mm, 6 mm and 8 mm. Nothing in the table goes past 10 mm, and a footnote puts the maximum clamp opening at 12 mm. This is a sheet machine, and the larger sources pay off in non-ferrous metals and in speed, not in plate thickness.

The axes reach 100 m/min simultaneously in X and Y. Positioning difference and repeatability are both +/- 0.10 mm when lasering contours. The cutting head has automatic focus adjustment, integrated collision protection and process monitoring, and the control is a Schneider Touch with a 19" TFT touchscreen and data transfer by RJ 45 and USB.

For installation, the 3015 measures 8,600 x 4,200 x 2,200 mm and weighs 8,000 kg, and the 4020 measures 10,600 x 4,700 x 2,200 mm and weighs 9,500 kg. The electrical supply is 22 kVA, a figure that covers the laser, the machine, dust collection and cooling.

Full Specifications

Parameter	Value
X Axis Travel	3015: 3,000 mm (118.1 in); 4020: 4,000 mm (157.5 in)
Y Axis Travel	3015: 1,500 mm (59.1 in); 4020: 2,000 mm (78.7 in)
Z Axis Travel	250 mm (9.8 in)
Machine Dimensions L X W X H	3015: 8,600 x 4,200 x 2,200 mm (338.6 x 165.4 x 86.6 in); 4020: 10,600 x 4,700 x 2,200 mm (417.3 x 185.0 x 86.6 in)
Machine Weight	3015: 8,000 kg (17,637 lb); 4020: 9,500 kg (20,944 lb)
Max Speed Simultaneous X Y	100 m/min
Positioning Difference	+/- 0.10 mm when lasering contours
Repeatability	+/- 0.10 mm when lasering contours
CNC Control	Schneider Touch
Display	19" TFT Touchscreen
Data Transfer	RJ 45 and USB
Part Chute	3015: 350 x 1,500 mm; 4020: 350 x 2,000 mm
Laser Power	1000 W / 2000 W / 3000 W / 4000 W (Boschert Laser System BLS 1000 / 2000 / 3000 / 4000)
Recommended Cutting Performance Mild Steel	6 mm at 1000 W; 10 mm at 2000 W; 10 mm at 3000 W; 10 mm at 4000 W
Recommended Cutting Performance Stainless Steel	4 mm at 1000 W; 8 mm at 2000 W; 10 mm at 3000 W; 10 mm at 4000 W
Recommended Cutting Performance Aluminium	3 mm at 1000 W; 6 mm at 2000 W; 8 mm at 3000 W; 10 mm at 4000 W
Recommended Cutting Performance Copper	2 mm at 1000 W; 4 mm at 2000 W; 6 mm at 3000 W; 8 mm at 4000 W
Max Clamp Opening	12 mm
Electrical Power Supply	22 kVA (Fiberlaser, machine, dust collection, cooling)

Specifications sourced from boschert.de — verified 2026-10-05

Strengths & Limitations

Strengths

Two bed sizes: 3,000 x 1,500 mm on the 3015 and 4,000 x 2,000 mm on the 4020
Laser sources of 1000 W, 2000 W, 3000 W or 4000 W
100 m/min simultaneous speed in X and Y
Cutting head with automatic focus adjustment and integrated collision protection
Copper is included in the recommended cutting table, up to 8 mm at 4000 W

Limitations

Recommended thickness stops at 10 mm in every material, even at 4000 W
Maximum clamp opening is 12 mm
The 1000 W source is recommended for 6 mm mild steel and 4 mm stainless steel
No source above 4000 W is listed

Best For

Sheet up to 10 mm in mild steel, stainless steel and aluminium Copper and brass parts cut on a fiber source Shops needing a 3,000 x 1,500 mm or 4,000 x 2,000 mm bed

Frequently Asked Questions

01 What sizes does the Boschert FiberLaser come in?

Two. The 3015 has 3,000 mm of X and 1,500 mm of Y travel, measures 8,600 x 4,200 x 2,200 mm and weighs 8,000 kg. The 4020 has 4,000 mm and 2,000 mm, measures 10,600 x 4,700 x 2,200 mm and weighs 9,500 kg. Z travel is 250 mm on both.

02 How thick can the FiberLaser cut?

Boschert's recommended figures for 4000 W are 10 mm in mild steel, stainless steel and aluminium and 8 mm in copper. At 1000 W they are 6 mm, 4 mm, 3 mm and 2 mm in the same order. A footnote gives the maximum clamp opening as 12 mm.

03 What control does the FiberLaser use?

The table names a Schneider Touch control with a 19" TFT touchscreen. Data transfer is by RJ 45 and USB. Boschert describes the CNC interface as allowing fast setup and integration into existing CAD/CAM environments.

04 What electrical supply does the FiberLaser need?

22 kVA. Boschert's table notes that this covers the fiber laser, the machine, dust collection and cooling, so it is the figure for the whole installation and not for the source alone.
