DN Solutions Vertical Machining Centers (VMC)

DN Solutions DNM 5700 S

Est. $90,000 - $130,000 Specs verified 2026-10-02 · dn-solutions.com Updated 2026-10-02

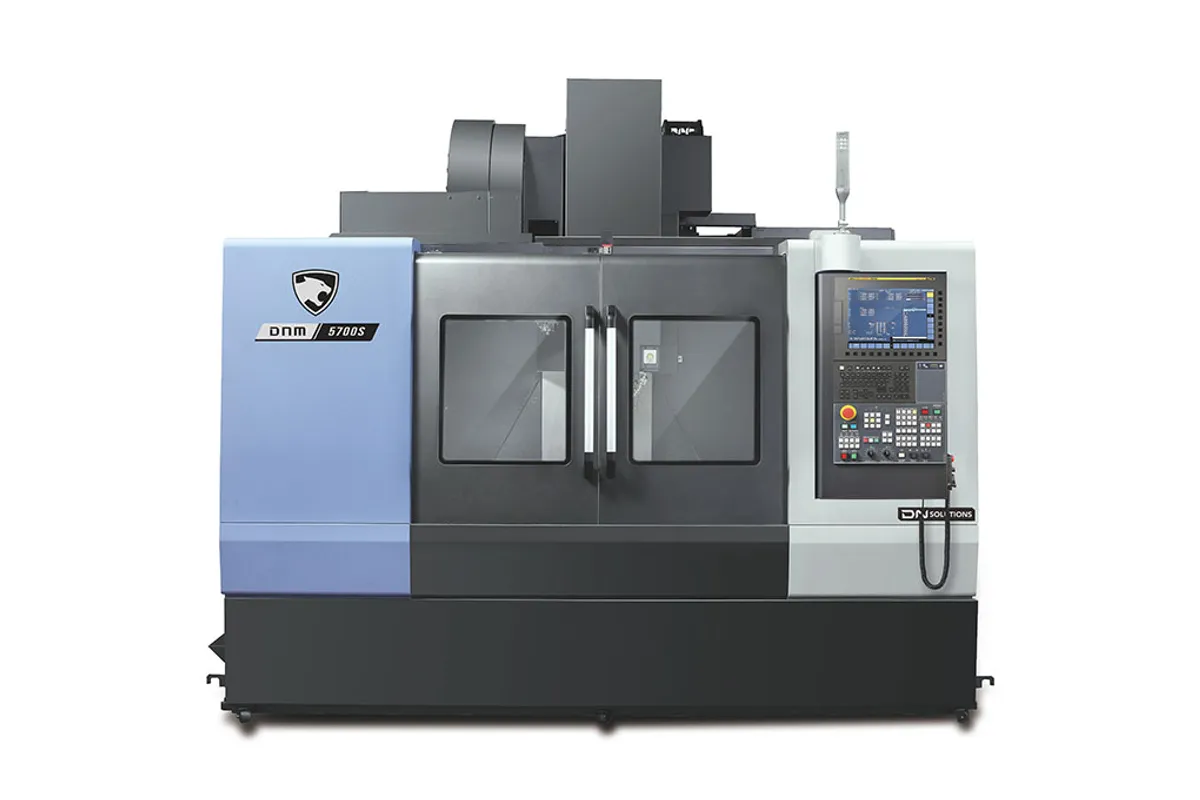

Image: dn-solutions.com, DN Solutions

Key Specifications

X Travel

1,050 mm (41 in)

Y Travel

570 mm (22 in)

Z Travel

510 mm (20 in)

Max Spindle

15,000 rpm

Spindle Taper

ISO 40

Table Size

1,300 × 570 mm (51 × 22 in)

How much does the DN Solutions DNM 5700 S cost?

Estimated price range

Est.$90,000 - $130,000

Our best estimate for a vertical machining centers (vmc) in this class — not a quote from DN Solutions. Configuration moves it a long way.

Overview

The DN Solutions DNM 5700 S combines a 15,000 rpm ISO 40 spindle with the DNM 5700 envelope: 1,050 mm (41 in) of X, 570 mm (22 in) of Y and 510 mm (20 in) of Z. The table is 1,300 × 570 mm (51 × 22 in) and the machine weighs 6,500 kg (14,330 lb).

Two trade-offs come with the fast spindle, and both show in DN's table. First, the table load is 800 kg (1,764 lb), lower than the 1,000 kg (2,205 lb) of the DNM 5700 4TH. Second, the table is longer than the X travel, so the spindle works over 1,050 mm of a 1,300 mm surface. Neither matters much for the work this machine suits: aluminium plates, housings and mould components are light for their size and rarely need the last stretch of the table.

Spindle power is 18.5 kW (25 hp) and torque 117.8 N·m (87 ft-lb), matching the figures of the 8,000 rpm DNM 5700 4TH. The extra speed is there for small-diameter tools and high feed rates in light alloys. With rapids of 42 m/min (1,654 ipm) on X and Y and 36 m/min (1,417 ipm) on Z, the axes keep pace on parts with many pockets and holes.

DN describes the spindle as direct-coupled and says the design improves on belt-driven types. Grease lubrication for the axis roller guideways is standard, and an EOP function is available from a pop-up window on the NC main screen.

If the job needs the full 1,300 mm in travel, the DNM 5700 L has 1,300 mm (51 in) of X, although DN lists it with slower rapids of 36 m/min (1,417 ipm) and no spindle speed. The DNM 5700 S measures 2,413 × 3,110 × 2,985 mm (95 × 122 × 118 in).

Full Specifications

Parameter	Value
X-Axis Travel	1,050 mm (41 in)
Y-Axis Travel	570 mm (22 in)
Z-Axis Travel	510 mm (20 in)
Rapid Traverse X	42 m/min (1,654 ipm)
Rapid Traverse Y	42 m/min (1,654 ipm)
Rapid Traverse Z	36 m/min (1,417 ipm)
Max Spindle Speed	15,000 rpm
Spindle Motor Power	18.5 kW (25 hp)
Spindle Torque	117.8 N·m (87 ft-lb)
Spindle Taper	ISO 40
Table Size	1,300 × 570 mm (51 × 22 in)
Max Table Load	800 kg (1,764 lb)
Floor Space Required	2,413 × 3,110 × 2,985 mm (95 × 122 × 118 in)
Machine Weight	6,500 kg (14,330 lb)

Specifications sourced from dn-solutions.com — verified 2026-10-02

Strengths & Limitations

Strengths

15,000 rpm ISO 40 spindle, against 8,000 rpm on the DNM 5700 4TH
18.5 kW (25 hp) and 117.8 N·m (87 ft-lb) are listed alongside the higher top speed
1,300 × 570 mm (51 × 22 in) table, longer than the 1,050 × 570 mm (41 × 22 in) table of the DNM 5700 4TH
Rapids of 42 m/min (1,654 ipm) on X and Y, faster than the 36 m/min (1,417 ipm) of the DNM 5700 L
Direct-coupled spindle and standard grease lubrication of the axis roller guideways

Limitations

Table load is 800 kg (1,764 lb), below the 1,000 kg (2,205 lb) of the DNM 5700 4TH and DNM 5700 L
X travel is 1,050 mm (41 in) on a 1,300 mm (51 in) table, so part of the table length cannot be reached
Z travel is 510 mm (20 in), which limits tall parts and long tools together
DN's table gives no tool capacity or tool-change figures for this model

Best For

Aluminium plates and housings up to 1,050 × 570 mm (41 × 22 in) High-speed pocketing with small end mills at 15,000 rpm Mould and die components within the 800 kg (1,764 lb) table limit Hole-intensive parts that benefit from 42 m/min (1,654 ipm) rapids

Frequently Asked Questions

01 What is the table load of the DNM 5700 S?

800 kg (1,764 lb). That is lower than the 1,000 kg (2,205 lb) DN lists for the DNM 5700 4TH, even though the DNM 5700 S table is longer at 1,300 × 570 mm (51 × 22 in). Add up fixtures and part weight before planning steel work on it.

02 How does the DNM 5700 S spindle compare with the DNM 5700 4TH?

Both are ISO 40 spindles listed at 18.5 kW (25 hp) and 117.8 N·m (87 ft-lb). The DNM 5700 S reaches 15,000 rpm and the DNM 5700 4TH reaches 8,000 rpm. The faster spindle suits small cutters and light alloys; the table does not show any loss of rated torque for it.

03 Can the DNM 5700 S machine the whole table?

No. X travel is 1,050 mm (41 in) and the table is 1,300 mm (51 in) long, so the spindle covers only part of the length. Y travel of 570 mm (22 in) matches the table depth. Use the uncovered ends for clamps and stops.

04 DNM 5700 S or DNM 5700 L for long parts?

The DNM 5700 L has 1,300 mm (51 in) of X travel, a 1,500 × 570 mm (59 × 22 in) table and a 1,000 kg (2,205 lb) load at 7,000 kg (15,432 lb). Its rapids are 36 m/min (1,417 ipm) on X and Y, and DN's table shows no spindle speed for it. The DNM 5700 S is the choice when 15,000 rpm matters more than the extra travel.

05 What are the overall dimensions of the DNM 5700 S?

DN lists 2,413 × 3,110 × 2,985 mm (95 × 122 × 118 in) as length, width and height and a machine weight of 6,500 kg (14,330 lb).
