DN Solutions DCM 2750 U

Est. $1,700,000 - $2,400,000 Specs verified 2026-10-02 · dn-solutions.com Updated 2026-10-02

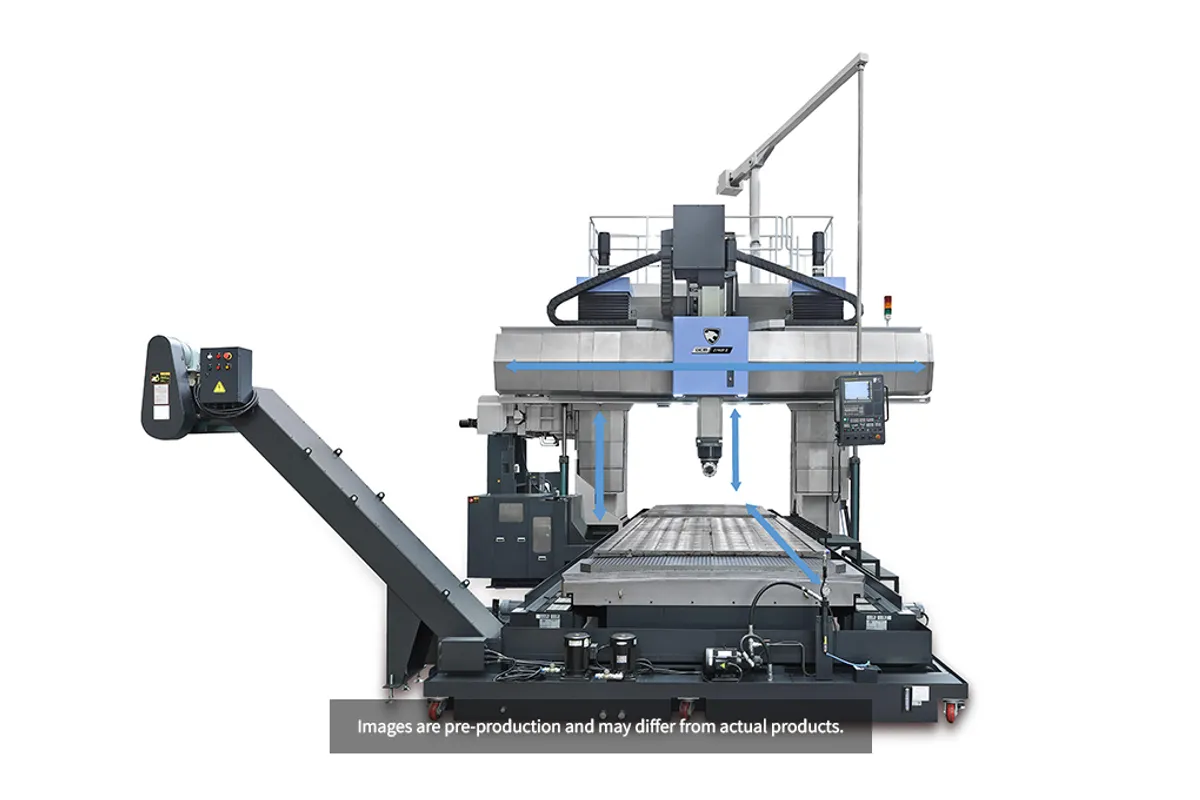

Image: dn-solutions.com, DN Solutions

Key Specifications

X Travel

5,250 mm (207 in)

Y Travel

3,200 mm (126 in)

Z Travel

1,000 mm (39 in)

Max Spindle

15,000 rpm

Spindle Taper

HSK-A100

Tool Capacity

How much does the DN Solutions DCM 2750 U cost?

Estimated price range

Est.$1,700,000 - $2,400,000

Our best estimate for a 5-axis machining center in this class — not a quote from DN Solutions. Configuration moves it a long way.

Overview

The DN Solutions DCM 2750 U puts a 30,000 kg (66,139 lb) table load under 5,250 mm (207 in) of X travel and 3,200 mm (126 in) of Y. Z travel is 1,000 mm (39 in) and the table measures 5,100 × 2,200 mm (201 × 87 in). The machine comes from DN's DCM line of heavy double-column machining centers and is listed in the five-axis range with a 15,000 rpm HSK-A100 spindle.

Load capacity is where this size makes its case. The DCM 2740 U is one step shorter, with a 4,100 × 2,200 mm (161 × 87 in) table, and is rated for 20,000 kg (44,093 lb). Going to the DCM 2750 U raises the rating by 50% while the machine's own weight goes from 70,000 kg (154,324 lb) on the DCM 2740 U to 73,000 kg (160,937 lb). For a shop whose parts are dense, such as solid die blocks or thick steel plates, that is the more useful step in the range. The next size along, the DCM 2760 U, lengthens the table to 6,100 mm (240 in) but stays at 30,000 kg (66,139 lb).

The spindle is the same across these sizes: 46/34 KW (62/46 hp) and 146 N·m (108 ft-lb). A heavy part therefore does not mean a heavy cut. The structure and table are sized for mass, while the spindle is sized for high-speed finishing with smaller tools, and the 40-tool magazine has to be planned with that tool mix in mind.

Axis rapids are 16 m/min (630 ipm) in X, 20 m/min (787 ipm) in Y and 15 m/min (591 ipm) in Z, with a W axis at 3 m/min (118 ipm). DN lists 1,610 mm (63 in) from spindle nose to table. The DCM 2750 F II has the same X and Y travels with 700 mm (28 in) of Z and weighs 68,000 kg (149,914 lb). Overall size of the DCM 2750 U is 13,375 × 7,730 × 7,700 mm (527 × 304 × 303 in).

Full Specifications

Parameter	Value
Spindle Nose to Table	1,610 mm (63 in)
X-Axis Travel	5,250 mm (207 in)
Y-Axis Travel	3,200 mm (126 in)
Z-Axis Travel	1,000 mm (39 in)
Rapid Traverse X	16 m/min (630 ipm)
Rapid Traverse Y	20 m/min (787 ipm)
Rapid Traverse Z	15 m/min (591 ipm)
Rapid Traverse W	3 m/min (118 ipm)
Max Spindle Speed	15,000 rpm
Spindle Motor Power	46/34 kW (62/46 hp)
Spindle Torque	146 N·m (108 ft-lb)
Spindle Taper	HSK-A100
Table Size	5,100 × 2,200 mm (201 × 87 in)
Max Table Load	30,000 kg (66,139 lb)
Tool Capacity	40
Floor Space Required	13,375 × 7,730 × 7,700 mm (527 × 304 × 303 in)
Machine Weight	73,000 kg (160,937 lb)

Specifications sourced from dn-solutions.com — verified 2026-10-02

Strengths & Limitations

Strengths

30,000 kg (66,139 lb) table load, 50% above the 20,000 kg (44,093 lb) of the DCM 2740 U
5,250 mm (207 in) of X travel over a 5,100 mm (201 in) long table
3,200 mm (126 in) of Y travel with a 20 m/min (787 ipm) Y rapid
1,000 mm (39 in) of Z, where the DCM 2750 F II has 700 mm (28 in)
73,000 kg (160,937 lb) machine weight for stability under a 15,000 rpm spindle

Limitations

Table width is 2,200 mm (87 in); the DCM 3250 U offers 2,700 mm (106 in) on the same table length
Spindle torque of 146 N·m (108 ft-lb) limits roughing on parts heavy enough to need a 30,000 kg (66,139 lb) table
40 tools, with no larger magazine shown in DN's table
W axis rapid is 3 m/min (118 ipm), and the W stroke is not published in the table

Best For

Dense, heavy workpieces up to 30,000 kg (66,139 lb) Die blocks and plates up to 5,100 × 2,200 mm (201 × 87 in) High-speed finishing at 15,000 rpm on parts too heavy for lighter double-column machines Shops moving up from the DCM 2740 U for table load

Frequently Asked Questions

01 How much more can the DCM 2750 U carry than the DCM 2740 U?

The DCM 2750 U is rated for 30,000 kg (66,139 lb) and the DCM 2740 U for 20,000 kg (44,093 lb). Table width is 2,200 mm (87 in) on both. The DCM 2750 U table is 5,100 mm (201 in) long and the DCM 2740 U table 4,100 mm (161 in).

02 What are the travels of the DCM 2750 U?

5,250 mm (207 in) in X, 3,200 mm (126 in) in Y and 1,000 mm (39 in) in Z. A W axis is also listed, with a 3 m/min (118 ipm) rapid but no stated stroke, and the distance from spindle nose to table is given as 1,610 mm (63 in).

03 Does the longer DCM 2760 U carry more weight?

No. The DCM 2760 U has 6,250 mm (246 in) of X and a 6,100 × 2,200 mm (240 × 87 in) table, but its table load is 30,000 kg (66,139 lb), the same as the DCM 2750 U. Choose between them on part length.

04 What spindle and tooling does the DCM 2750 U have?

A 15,000 rpm HSK-A100 spindle listed at 46/34 KW (62/46 hp) and 146 N·m (108 ft-lb), with a 40-tool magazine. DN's series description refers to a range of ram-type spindles and auto-change head attachments, so ask which heads are included in a given quotation.

05 How big is the DCM 2750 U installed?

13,375 mm (527 in) long, 7,730 mm (304 in) wide and 7,700 mm (303 in) high, at 73,000 kg (160,937 lb). With a full table the foundation carries the machine plus up to 30,000 kg (66,139 lb) of workpiece and fixture.
