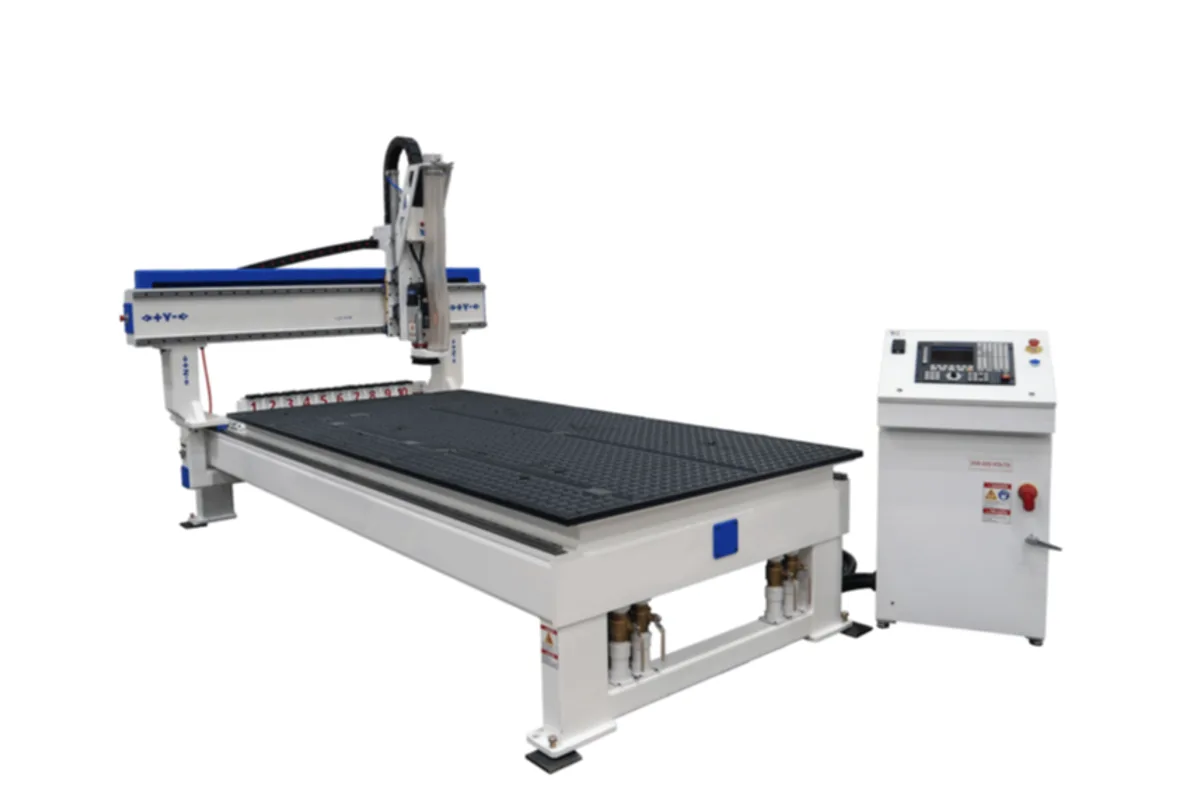

DMS Freedom10
Image: dmscncrouters.com, DMS
Key Specifications
Max Spindle
Spindle Power
x axis travel
y axis travel
cutting area
c axis
How much does the DMS Freedom10 cost?
Price estimate
We do not have a price for the DMS Freedom10 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The DMS Freedom10 is a 3-axis moving-gantry router with a 60 x 120 in (1,524 x 3,048 mm) cutting area, sized for the oversize sheets that cabinet shops buy. X stroke is 60 in (1,524 mm) and Y stroke 120 in (3,048 mm). DMS describes it as an upgrade in strength and weight over the smaller Freedom machines, with a steel frame meant to stay stable during extended cuts.
Cabinet work is where DMS places it: nested-based machining of Baltic Birch sheets and hardwoods, plus composite panels and thin aluminum. The extra width over a four-foot machine is what lets five-foot sheet stock go on without trimming, and the length gives room to nest a run of cabinet parts in one cycle.
The motion hardware matches the rest of the line. There is a recirculating ball screw assembly on all axes, Fagor industrial AC servo motors and amplifiers, laser-calibrated X and Y axes, and a Fagor 8070 OL 3-axis industrial controller with a 17 in LCD color monitor. A Hiteco 10 hp / 7.5 kW spindle is standard, the listed range is 4.5-8 kW to an 8 kW maximum at 24,000 rpm, and a C-axis is optional. A drill bank is offered as an option for shelf-pin and hardware holes.
The machine runs on 220 V 3-phase power at 60 Hz, the hood takes a 5 in dust collection line, and lubrication is manual. On Z stroke, bridge clearance, rapid feed rate and table material the product page and the data sheet do not agree, so those figures are left for DMS to confirm.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 60 in (1,524 mm) |
| Y Axis Travel | 120 in (3,048 mm) |
| Cutting Area | 60 x 120 in (1,524 x 3,048 mm) |
| C Axis | C-axis optional |
| Spindle Power Standard | Hiteco 10 hp / 7.5 kW standard (other hp options available) |
| Spindle Motor Power | 8 kW maximum (10.7 hp) |
| Max Spindle Speed | 24,000 rpm |
| Spindle Power Range | 4.5-8 kW (6.0-10.7 hp) |
| Spindle Units | Hiteco MT200, MT201, PT300, PT402 |
| Drive System | Recirculating ball screw assembly on all axes |
| CNC Control | Fagor 8070 OL 3-axis industrial controller with 17 in LCD color monitor |
| Dust Collection | Hood accepts a 5 in dust collection line from customer’s system |
| Power Requirement | 220 V, 3-phase, 60 Hz (amps determined by spindle option) |
| Lubrication | Manual |
| Connectivity | Ethernet TCP/IP, USB & serial port |
Specifications sourced from dmscncrouters.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 60 x 120 in (1,524 x 3,048 mm) cutting area for five-foot-wide sheet stock
- Recirculating ball screw assembly on all axes with Fagor industrial AC servo motors and amplifiers
- Fagor 8070 OL 3-axis industrial controller with a 17 in LCD color monitor
- Drill bank available as an option for cabinet work
- Steel frame that DMS describes as heavier and stronger than the 4 ft x 8 ft Freedom machine
Limitations
- Maximum spindle power is 8 kW, below the 13 kW / 15 kW listed for the Freedom8
- Lubrication is manual, so greasing the axes is an operator task
- DMS publishes conflicting Z stroke, clearance and rapid feed figures for this model
- The drill bank is an option, not standard equipment
Best For
Frequently Asked Questions
01
The cutting area is 60 x 120 in (1,524 x 3,048 mm). The data sheet lists an X axis stroke of 60 in (1,524 mm) and a Y axis stroke of 120 in (3,048 mm). DMS publishes more than one Z stroke figure for this model, so confirm Z and the clearance under the bridge with the maker.
02
DMS positions it for nested-based machining and larger woodworking jobs such as cabinet systems, and says it is also good at machining hardwoods, Baltic Birch sheets, thin aluminum and composite panels. A drill bank is available as an option.
03
A Hiteco 10 hp / 7.5 kW electro spindle is standard, with other hp options available. The comparison table gives a spindle range of 4.5-8 kW, a maximum of 8 kW and a maximum speed of 24,000 rpm, and lists the Hiteco MT200, MT201, PT300 and PT402.
04
The control is a Fagor 8070 OL 3-axis industrial controller with a 17 in LCD color monitor. Fagor industrial AC servo motors and amplifiers drive a recirculating ball screw assembly on all axes, and the machine connects by Ethernet TCP/IP, USB and serial port.
