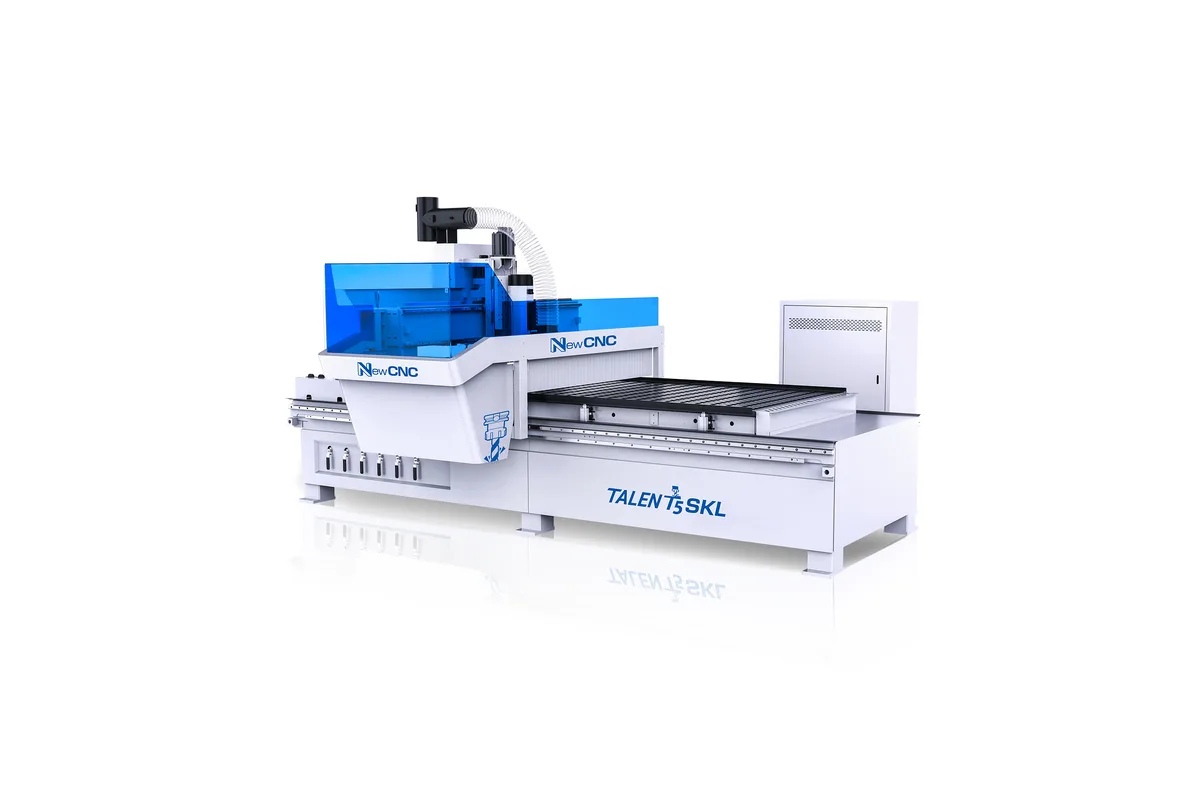

NEW CNC Talent T5SKL
Image: newcnc.com, NEW CNC
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Spindle Power
available sizes
spindle speed range
How much does the NEW CNC Talent T5SKL cost?
Price estimate
We do not have a price for the NEW CNC Talent T5SKL that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
One table size, 4 x 9 ft, and a machine weight of 9,000 lb (4,082 kg) define the NEW CNC Talent T5SKL. It is the single-size member of the Talent T5 family, built for shops that cut standard and slightly over-length sheet and want an automatic tool changer and automatic unloading without the drill block and larger tables of the Talent T5D.
The spindle is rated 16 hp (11.9 kW) and is programmable up to 21,000 rpm, with a listed range of 5,000 - 21,000 rpm. It takes ISO 30 tool holders, where the T5D uses HSK 63. Twelve tools ride along with the gantry in a rack, which keeps tool changes short because the head does not travel to the end of the table to fetch a cutter.
Weight is the figure to notice. 9,000 lb (4,082 kg) on a 4 x 9 ft table is a heavy structure, and it is paired with a rapid speed of 3,673 ipm (93.3 m/min) in X and Y on helical rack and pinion. The Z axis uses a ball screw. NEW CNC describes an industrial PC control with closed-loop encoders that runs standard G-code and shows diagnostics and maintenance reminders.
Sheet handling is partly automatic as delivered. Pop-up pins and locator fences on three edges square the panel, a single 10 HP Becker vacuum pump holds it through a 7 zone programmable vacuum table, and the Clean Sweep unload pushes the finished nest off. Dual lubrication pumps feed the linear guides. An automatic loading table, an unload conveyor and label printing are optional.
There is no boring block in the specification list, so every hole is drilled with the routing spindle. Travels, Z stroke and electrical supply are not published on the page.
Full Specifications
| Parameter | Value |
|---|---|
| Available Sizes | 4 x 9 ft |
| Spindle Motor Power | 16 hp (11.9 kW) |
| Spindle Taper | ISO 30 |
| Max Spindle Speed | Programmable up to 21,000 rpm |
| Spindle Speed Range | 5,000 - 21,000 rpm |
| Tool Capacity | 12 Position Ride Along Automatic Tool Changer Rack |
| Rapid Traverse Xy | 3,673 ipm (93.3 m/min) |
| Xy Drive | Helical Rack & Pinion |
| Z Drive | Ball Screw |
| Vacuum Pumps | Single 10 HP Becker Vacuum Pump |
| Vacuum Table | 7 Zone Programmable Vacuum Table |
| Unloading | Clean Sweep Unload |
| Panel Alignment | Automatic Panel Alignment |
| Machine Weight | 9,000 lb (4,082 kg) |
Specifications sourced from newcnc.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 9,000 lb (4,082 kg) machine weight on a 4 x 9 ft table
- 16 hp (11.9 kW) spindle, programmable up to 21,000 rpm, with ISO 30 tool holders
- 12-position ride-along tool changer rack travels with the gantry
- Rapid speed of 3,673 ipm (93.3 m/min) in X and Y
- 7 zone programmable vacuum table with Clean Sweep unload and automatic panel alignment
Limitations
- Only one size, 4 x 9 ft; larger tables are offered on the Talent T5D
- No boring block is listed, so hole patterns are drilled one at a time with the main spindle
- A single 10 HP Becker vacuum pump, where the Talent T5D has dual 10 HP Becker vacuum pumps
- Travels, Z stroke, footprint and power supply are not stated on the page
Best For
Frequently Asked Questions
01
The machine is offered in one size, 4 x 9 ft. NEW CNC does not publish the exact X and Y travels or the Z stroke on the product page, so the usable cutting area should be confirmed before purchase if your sheets are at the limit.
02
No boring block appears in its specification list. The Talent T5D is the model with a 10 independent spindle boring block. On the T5SKL, holes are made with the 16 hp routing spindle and a tool from the 12-position rack.
03
The spindle takes ISO 30 tool holders and runs up to 21,000 rpm. Tools are stored in a 12-position ride-along automatic tool changer rack, which moves with the gantry so the spindle changes tools close to where it is cutting.
04
The specification list gives a machine weight of 9,000 lb (4,082 kg). Floor loading, rigging and the access route should be planned for that figure; the weight of the vacuum pump and any loading or unloading equipment is not stated separately.
05
NEW CNC describes an industrial PC interface with closed-loop encoders. It runs standard G-code and displays real-time diagnostics with automated maintenance reminders. The page does not name the control maker or the CAD/CAM software supplied.
