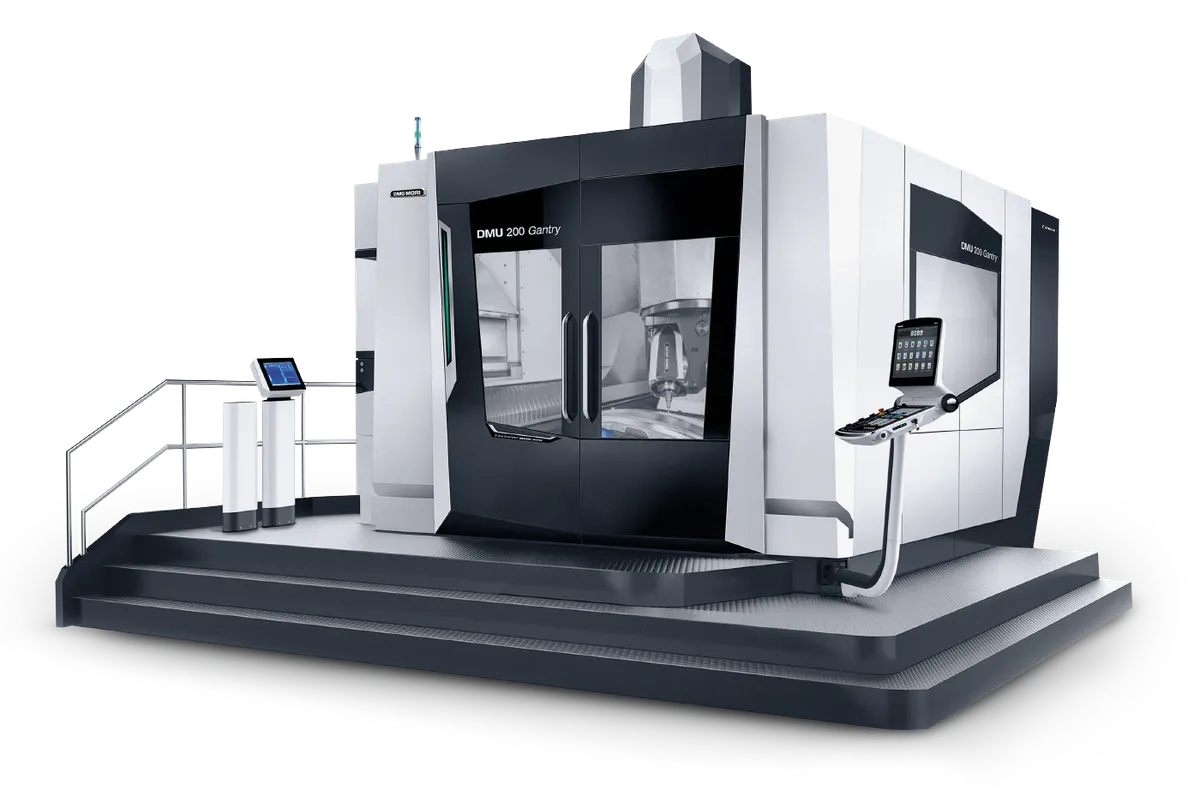

DMG Mori DMU 200 Gantry

$1,200,000 - $2,000,000 Updated 2026-03-13

Key Specifications

X Travel

4,000 mm (157.5 in) modularly expandable

Y Travel

2,000 mm (78.7 in)

Z Travel

1,200 mm (47.2 in)

Max Spindle

20,000 RPM

Table Size

2,250 x 2,000 mm (88.6 x 78.7 in)

Rapid Traverse

50 m/min (1,969 ipm)

Overview

The DMG Mori DMU 200 Gantry is the entry-level machine in the gantry-style 5-axis lineup, purpose-built for large workpieces that exceed the capacity of rotary-table platforms like the duoBLOCK series. With 4,000 x 2,000 x 1,200 mm (157.5 x 78.7 x 47.2 in) of travel and a modularly expandable X-axis, this machine handles large aerospace structural components, energy sector parts, and tooling that demand a massive work envelope.

The fixed-table gantry design supports workpieces up to 20,000 kg (44,092 lb) on a 2,250 x 2,000 mm (88.6 x 78.7 in) T-slot table. That is an order of magnitude more capacity than even the largest duoBLOCK, opening up applications in large mold manufacturing, wind turbine component machining, and heavy structural fabrication. T-slots across the table provide flexible workholding options and easy chip removal.

The gantry construction moves the spindle head over the stationary workpiece, which means the machine footprint scales with part size rather than requiring a massive rotary table to handle weight. Rapid traverse reaches 50 m/min (1,969 ipm) on all axes. The machine offers both 45-degree and 90-degree head options for 5-axis machining capability, with spindle speeds up to 20,000 RPM.

Head options include the powerMASTER motor spindle for high material removal and the torqueMASTER gear spindle delivering up to 1,000 Nm (737 ft-lb) of torque. The 5-axis heads provide B and C axis rotation for full simultaneous 5-axis machining of complex contoured surfaces on large workpieces.

Chip conveyors on both sides of the table handle the high chip volumes generated during aggressive roughing of large parts. The band filter coolant system holds 2,500 liters. Control options include SIEMENS SINUMERIK ONE and HEIDENHAIN TNC7.

The modularly expandable X-axis up to 4,000 mm allows shops to configure the machine for their specific part mix. For manufacturers that have outgrown rotary-table 5-axis machines and need to machine parts in the 2-4 meter range, the DMU 200 Gantry provides the work envelope and rigidity needed. Specs sourced from DMG Mori published data.

Full Specifications

Parameter	Value
X-Axis Travel	4,000 mm (157.5 in) modularly expandable
Y-Axis Travel	2,000 mm (78.7 in)
Z-Axis Travel	1,200 mm (47.2 in)
Table Size	2,250 x 2,000 mm (88.6 x 78.7 in)
Max Workpiece Length	4,300 mm (169.3 in)
Max Workpiece Width	2,000 mm (78.7 in)
Max Workpiece Height	1,250 mm (49.2 in)
Max Workpiece Weight	20,000 kg (44,092 lb)
Table Load	10,000 kg (22,046 lb)
Max Spindle Speed	20,000 RPM
Spindle Heads	45-degree and 90-degree head options
Rapid Traverse Rate	50 m/min (1,969 ipm)
Coolant Capacity	2,500 L band filter
CNC Control	SIEMENS SINUMERIK ONE / HEIDENHAIN TNC7
Chip Conveyors	Dual side conveyors
4000 Mm	157.5 in.
2000 Mm	78.7 in.
1200 Mm	47.2 in.
1250 Mm	49.2 in.
20000 Kg	44092.5 lbs.
4300 Mm	169.3 in.
Customer Benefits	MPC Graph: aktuelle und angelernte Prozesswerte. / MPC Diagnostics: Lagerzustand, Anzahl von Stoß und Crash.

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

20,000 kg workpiece capacity dwarfs any rotary-table 5-axis machine, opening up applications in large aerospace and energy components
4,000 mm modularly expandable X-axis accommodates workpieces up to 4.3 meters in length
Fixed T-slot table design simplifies workholding and provides flexible fixturing options for diverse part geometries
Gantry construction delivers consistent accuracy across the full work envelope
Dual chip conveyors handle high chip volumes during aggressive roughing of large parts
Both 45-degree and 90-degree head options enable full simultaneous 5-axis machining on large workpieces
SIEMENS and HEIDENHAIN control options with CELOS X integration

Limitations

Entry price above $1.2M puts this in the range of major capital equipment purchases
Large floor space requirement limits installation options in existing facilities
Gantry design means longer tool reach distances that can affect rigidity at full Z-depth
Limited spindle options compared to the duoBLOCK lineup
Workpiece setup and fixturing on the large T-slot table requires experienced operators

Best For

Aerospace manufacturers machining large structural components, wing skins, and fuselage panels Wind energy manufacturers machining turbine hub components and large bearing housings Mold and die shops producing large automotive body panel dies and structural molds Shipbuilding and marine manufacturers machining large propulsion components Defense contractors machining large structural components for vehicles and naval vessels General heavy industry needing 5-axis capability on workpieces exceeding 2 meters

Frequently Asked Questions

01 What does a DMG Mori DMU 200 Gantry cost?

New DMU 200 Gantry machines typically run $1,200,000 to $2,000,000 depending on X-axis length, spindle head selection, tool magazine configuration, and automation options.

02 How does the Gantry compare to the duoBLOCK platform?

The Gantry uses a fixed-table design where the spindle head moves over the workpiece, while the duoBLOCK moves the workpiece on a rotary table. The Gantry handles much larger and heavier parts (20 tons vs 4.5 tons for the largest duoBLOCK) but does not offer the same accessibility from all sides.

03 Can the X-axis be expanded after installation?

The DMU 200 Gantry is designed with modular X-axis expansion capability. However, expanding after initial installation requires DMG Mori service involvement and additional foundation work.

04 What head options are available for 5-axis work?

The DMU 200 Gantry offers both 45-degree and 90-degree head options for 5-axis machining. Both heads support simultaneous 5-axis interpolation for complex contoured surfaces.
