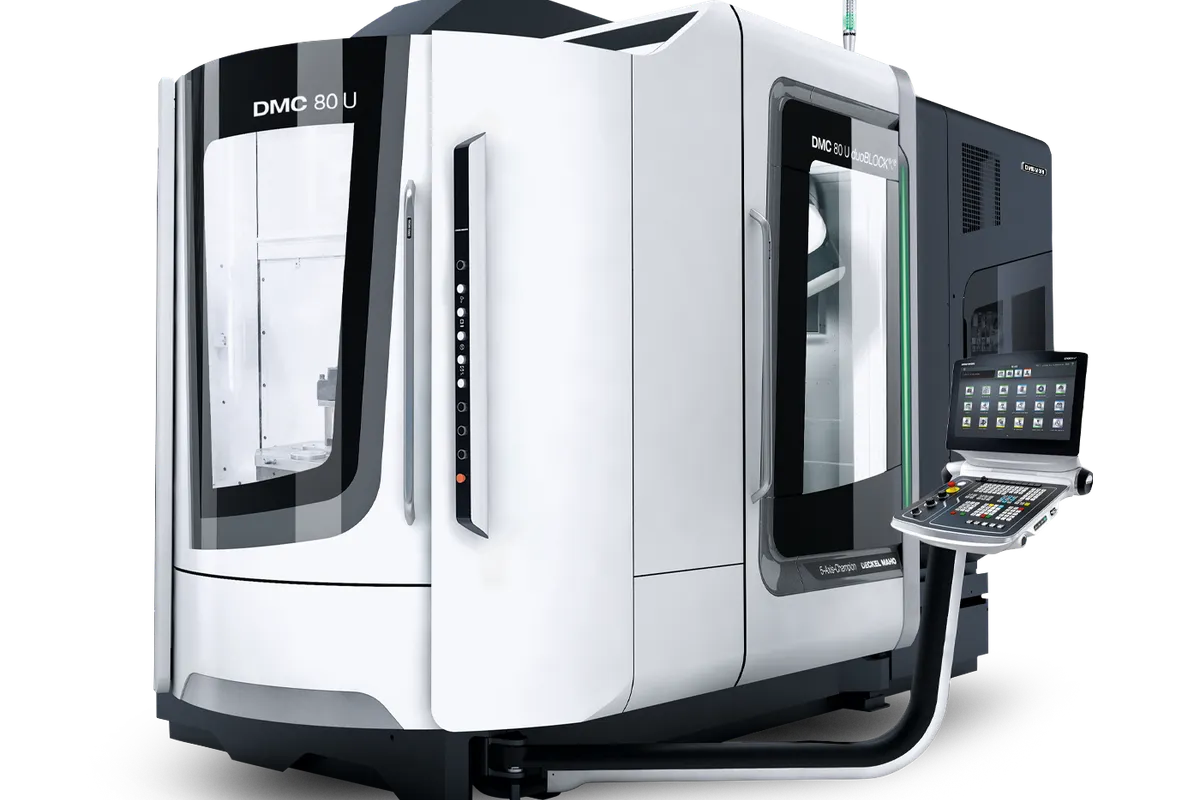

DMG Mori DMC 80 u FD duoBLOCK

$650,000 - $1,000,000 Updated 2026-03-19

Key Specifications

X Travel

800 mm (31.5 in)

Y Travel

1,050 mm (41.3 in)

Z Travel

850 mm (33.5 in)

Max Spindle

12,000 RPM (15,000 / 20,000 RPM optional)

Spindle Taper

HSK-A100

Tool Capacity

60 tools standard (up to 453)

Overview

The DMG Mori DMC 80 u FD duoBLOCK is the mill-turn variant of the compact duoBLOCK platform, adding a DirectDrive rotary table capable of turning operations at speeds up to 800 RPM to the proven 5-axis milling foundation of the DMC 80 U. The FD designation — Fras-Dreh, German for Mill-Turn — transforms this machine from a pure 5-axis machining center into a complete machining platform that eliminates secondary lathe operations for parts with both milled and turned features.

Travel dimensions match the standard DMC 80 U at 800 x 1,050 x 850 mm (31.5 x 41.3 x 33.5 in), providing a work envelope suited for medium-sized aerospace structural components, medical implant fixtures, and complex mold cavities. Maximum workpiece dimensions reach 900 mm (35.4 in) diameter and 1,450 mm (57.1 in) height, with a table load capacity of 1,400 kg (3,087 lb).

Spindle options carry over from the duoBLOCK family. The powerMASTER motor spindle delivers 77 kW (103 hp) and 1,000 Nm (738 ft-lb) of torque through an HSK-A100 taper. The 5X torqueMASTER gear spindle pushes 1,300 Nm (959 ft-lb) at 37 kW (50 hp) for maximum metal removal in titanium and Inconel. The DirectDrive C-axis table spins at up to 800 RPM — notably faster than the larger duoBLOCK FD models — enabling efficient turning of smaller-diameter features.

The tool magazine holds up to 453 pockets with 5.6-second chip-to-chip tool changes, supporting complex multi-operation parts that combine milling, drilling, and turning in a single setup. The completely water-cooled feed drives maintain thermal stability during extended production runs, while the Spindle Growth Sensor compensates for spindle thermal expansion in real time.

Control options include SIEMENS SINUMERIK ONE and HEIDENHAIN TNC7, both running under the CELOS X platform with integrated mill-turn programming cycles. The rotating pallet changer comes standard for main-time-parallel setup, and DMG Mori rates machine availability at 95%. For shops machining parts that straddle the boundary between milling and turning, the DMC 80 u FD duoBLOCK delivers complete machining in the most compact duoBLOCK envelope. Specs sourced from DMG Mori published data.

Full Specifications

Parameter	Value
X-Axis Travel	800 mm (31.5 in)
Y-Axis Travel	1,050 mm (41.3 in)
Z-Axis Travel	850 mm (33.5 in)
B Axis Swivel	-30 to +180 degrees (210 total)
C Axis Rotation	360 degrees continuous (turning-capable)
Turning Speed	Up to 800 RPM (FD mill-turn)
Max Spindle Speed	12,000 RPM (15,000 / 20,000 RPM optional)
Spindle Taper	HSK-A100
Spindle Motor Power	77 kW / 103 hp (powerMASTER)
Spindle Torque	1,000 Nm / 738 ft-lb (powerMASTER)
Torquemaster Torque	1,300 Nm / 959 ft-lb (5X torqueMASTER)
Torquemaster Power	37 kW / 50 hp
Tool Capacity	60 tools standard (up to 453)
Tool Change Time	5.6 seconds chip-to-chip
Max Workpiece Diameter	900 mm (35.4 in)
Max Workpiece Height	1,450 mm (57.1 in)
Max Table Load	1,400 kg (3,087 lb)
Rapid Traverse Rate	60 m/min (2,362 ipm)
CNC Control	SIEMENS SINUMERIK ONE / HEIDENHAIN TNC7
Coolant System	Water-cooled feed drives, SGS spindle compensation
Availability	95%
800 Mm	31.5 in.
1050 Mm	41.3 in.
850 Mm	33.5 in.
900 Mm	35.4 in.
1450 Mm	57.1 in.
1400 Kg	3086.5 lbs.
Customer Benefits	User Interface

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

DirectDrive table at 800 RPM provides the fastest turning speed in the duoBLOCK FD family, enabling efficient turning of smaller-diameter features
DuoBLOCK construction with three guide ways on Y-axis delivers exceptional rigidity for combined mill-turn operations in titanium and Inconel
PowerMASTER spindle at 1,000 Nm torque and 103 hp sustains aggressive milling between turning passes without compromise
453-tool magazine supports complex multi-operation mill-turn parts without manual tool loading intervention
Rotating pallet changer comes standard for main-time-parallel workpiece setup and higher spindle utilization
Water-cooled feed drives and SGS maintain thermal stability through extended combined milling and turning cycles

Limitations

FD mill-turn option adds $50,000-$100,000 over the standard DMC 80 U duoBLOCK, requiring strong utilization to justify
Table load of 1,400 kg limits the weight of workpieces suitable for turning operations compared to larger duoBLOCK FD models
HSK-A100 tooling plus dedicated turning tool holders represent a significant combined tooling investment
Combined mill-turn programming demands operators skilled in both milling and turning CAM strategies

Best For

Aerospace manufacturers machining medium-sized components with both milled pockets and turned diameters in a single setup Medical device manufacturers producing orthopedic implants and surgical instruments requiring combined mill-turn features Mold and die shops needing turned runner systems and milled cavities on the same workpiece Job shops looking to consolidate lathe and 5-axis mill operations to reduce setup time and improve accuracy Production cells requiring automated mill-turn capability with pallet changer for higher throughput

Frequently Asked Questions

01 What does a DMG Mori DMC 80 u FD duoBLOCK cost?

New DMC 80 u FD duoBLOCK machines typically price between $650,000 and $1,000,000 depending on spindle selection, tool magazine size, and automation. The FD mill-turn option adds roughly $50,000-$100,000 over the standard DMC 80 U. Used units from 2018-2020 occasionally appear in the $400,000-$550,000 range.

02 How does the FD variant differ from the standard DMC 80 U duoBLOCK?

The FD adds a DirectDrive rotary table capable of turning at up to 800 RPM, enabling combined mill-turn operations. The standard DMC 80 U provides 5-axis milling only with a positioning-only C-axis. The FD table delivers sufficient torque for facing, boring, and cylindrical turning operations on workpieces up to 1,400 kg.

03 Why is the FD turning speed 800 RPM versus 400-500 RPM on larger duoBLOCK FD models?

The DMC 80 u has a smaller, lighter rotary table than the DMU 125 P or DMU 160 P, allowing it to spin faster with less rotational inertia. The 800 RPM capability makes it more efficient for turning smaller-diameter features that benefit from higher surface speeds.

04 Can the DMC 80 u FD replace a dedicated lathe?

For parts that need both milled and turned features, yes — the FD eliminates the lathe operation. For pure turning work at high volumes, a dedicated CNC lathe remains more efficient. The FD excels at complete machining where 60-80% of the cycle is milling with integrated turning features.
