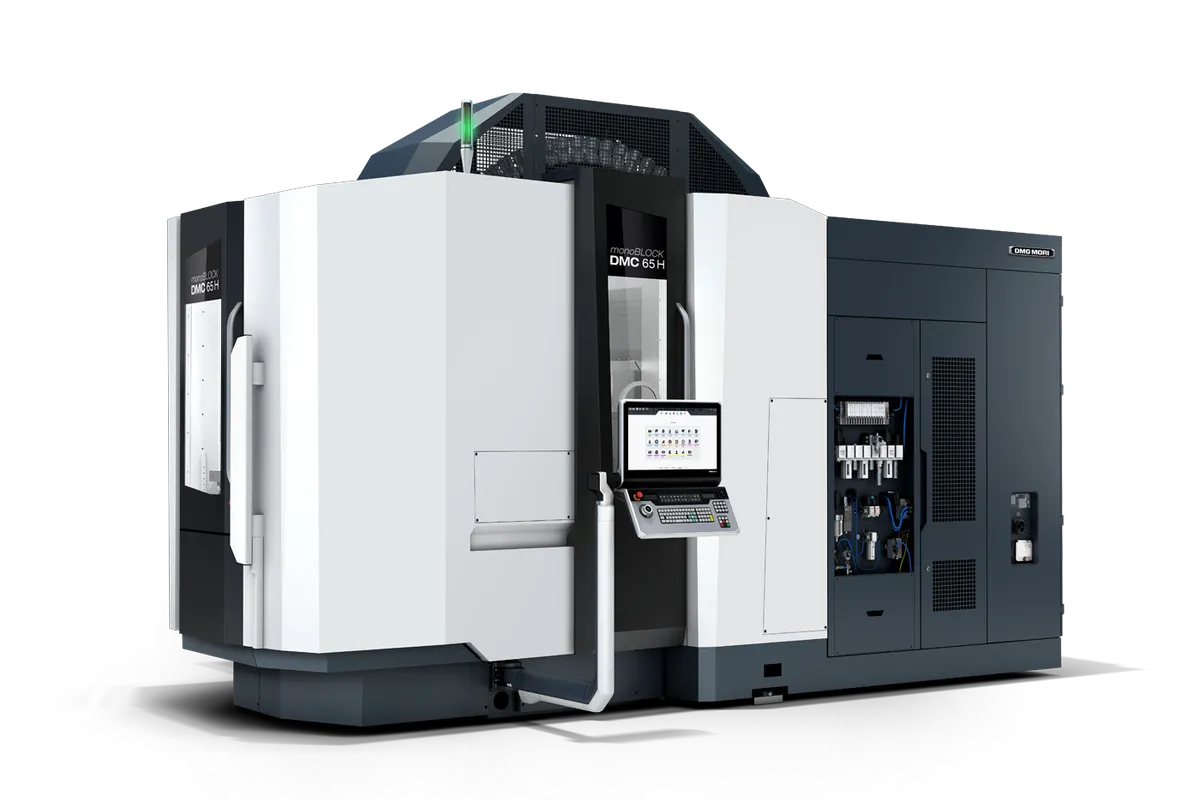

DMG Mori DMC 65 h FD monoBLOCK

$400,000 - $575,000 Updated 2026-03-19

Key Specifications

X Travel

650 mm (25.6 in)

Y Travel

950 mm (37.4 in)

Z Travel

700 mm (27.6 in)

Max Spindle

12,000 RPM (15,000; 20,000 RPM optional)

Spindle Taper

HSK-A63 (HSK-A100 optional)

Tool Capacity

30 tools standard (60, 120 optional)

Overview

The DMG Mori DMC 65 h FD monoBLOCK is a horizontal-spindle 5-axis machining center with integrated mill-turn capability, combining the chip evacuation advantages of horizontal machining with full 5-axis access and FD (FreeDrive) turning. The h monoBLOCK platform uses a monolithic one-piece cast iron machine bed with 3-point support for maximum rigidity and thermosymmetric stability, while the horizontal spindle orientation lets gravity pull chips away from the workpiece during deep-cavity machining.

Travel sits at 650 x 950 x 700 mm (25.6 x 37.4 x 27.6 in) with a swivelling rotary table supported on both sides for simultaneous 5-axis machining. Maximum workpiece dimensions reach 630 mm (24.8 in) diameter and 700 mm (27.6 in) height at a maximum table load of 600 kg (1,323 lb). The FD turning function enables rotational speeds up to 1,200 RPM for facing, boring, and OD turning operations without transferring parts to a lathe.

The speedMASTER spindle runs through an HSK-A63 taper standard with an HSK-A100 option supporting tools up to 280 mm (11 in) diameter and 22 kg (48.5 lb). Multiple spindle configurations are available from 12,000 to 20,000 RPM. The DMC designation indicates pallet-changer capability for load-while-cutting production, and the tool magazine supports configurations up to 120 positions.

The machine occupies approximately 13 m² (140 sq ft) of floor space including chip conveyor, making it compact for a horizontal 5-axis mill-turn platform. Control options include SIEMENS SINUMERIK ONE or HEIDENHAIN TNC7 with CELOS X interface. The DMC 65 h FD monoBLOCK competes with few direct rivals in the horizontal 5-axis mill-turn niche. New machines price between $400,000 and $575,000. Specs sourced from DMG Mori published data.

Full Specifications

Parameter	Value
X-Axis Travel	650 mm (25.6 in)
Y-Axis Travel	950 mm (37.4 in)
Z-Axis Travel	700 mm (27.6 in)
Max Spindle Speed	12,000 RPM (15,000; 20,000 RPM optional)
Spindle Taper	HSK-A63 (HSK-A100 optional)
Spindle Motor Power	22 kW (30 hp)
Spindle Torque	157 Nm (116 ft-lb)
Max Workpiece Diameter	630 mm (24.8 in)
Max Workpiece Height	700 mm (27.6 in)
Max Table Load	600 kg (1,323 lb)
Turning Speed Max	1,200 RPM (FD mode)
Tool Capacity	30 tools standard (60, 120 optional)
Rapid Traverse Rate	42 m/min (1,654 ipm)
Positioning Accuracy	5 µm
Machine Weight	12,000 kg (26,455 lb)
Floor Space	13 m² (140 sq ft)
CNC Control	SIEMENS SINUMERIK ONE / HEIDENHAIN TNC7 (CELOS X)
650 Mm	25.6 in.
950 Mm	37.4 in.
700 Mm	27.6 in.
630 Mm	24.8 in.
600 Kg	1322.8 lbs.
Customer Benefits	MPC Graph: aktuelle und angelernte Prozesswerte. / MPC Diagnostics: Lagerzustand, Anzahl von Stoß und Crash.

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

Horizontal spindle orientation provides gravity-assisted chip evacuation for deep-cavity 5-axis and turning work
FD mill-turn capability at up to 1,200 RPM eliminates separate lathe operations for combined-feature parts
One-piece cast iron monoBLOCK construction with 3-point support delivers exceptional rigidity and thermal stability
HSK-A100 option supports large-diameter tooling up to 280 mm for heavy material removal
DMC pallet-changer capability enables load-while-cutting production for high spindle utilization
Compact 13 m² footprint fits horizontal 5-axis mill-turn capability into tight shop floor layouts

Limitations

600 kg table load limits workpiece size compared to duoBLOCK horizontal platforms rated at 1,000+ kg
FD turning at 1,200 RPM max is supplementary -- dedicated lathes deliver higher speeds for pure turning work
Niche horizontal 5-axis mill-turn market means limited resale options and fewer direct competitor benchmarks
Premium pricing over $400K requires sufficient combined-operation work to justify versus separate machines

Best For

Aerospace manufacturers producing housings and brackets with both milled pockets and turned bores in one setup Medical device production requiring multi-sided machining with horizontal chip evacuation on combined-feature parts Mold shops machining inserts with turned sealing surfaces and milled cavity details where chip packing is a concern Job shops consolidating separate milling and turning operations to reduce setup time and re-chucking errors Production cells needing pallet-change automation with full 5-axis mill-turn capability

Frequently Asked Questions

01 What does a DMC 65 h FD monoBLOCK cost?

New machines price $400,000-$575,000 depending on spindle selection, tool magazine size, and control choice. The FD turning option and HSK-A100 upgrade add to the base configuration cost.

02 DMC 65 h FD vs DMU 65 H monoBlock -- what is the difference?

The DMC 65 h FD adds two key capabilities: FD mill-turn for integrated turning operations at up to 1,200 RPM, and DMC pallet-changer support for load-while-cutting production. The DMU 65 H is milling-only with a single table. Choose the FD if your parts need both milled and turned features.

03 What makes the horizontal configuration better than vertical 5-axis?

The horizontal spindle lets gravity pull chips away from the workpiece, preventing chip packing in deep cavities and improving tool life. This is critical for steel and cast iron work with deep pockets where vertical machines struggle with chip clearance.

04 What control options are available?

SIEMENS SINUMERIK ONE or HEIDENHAIN TNC7, both running under the CELOS X interface. Both controls support unified mill-turn programming for seamless transitions between milling and turning operations.
