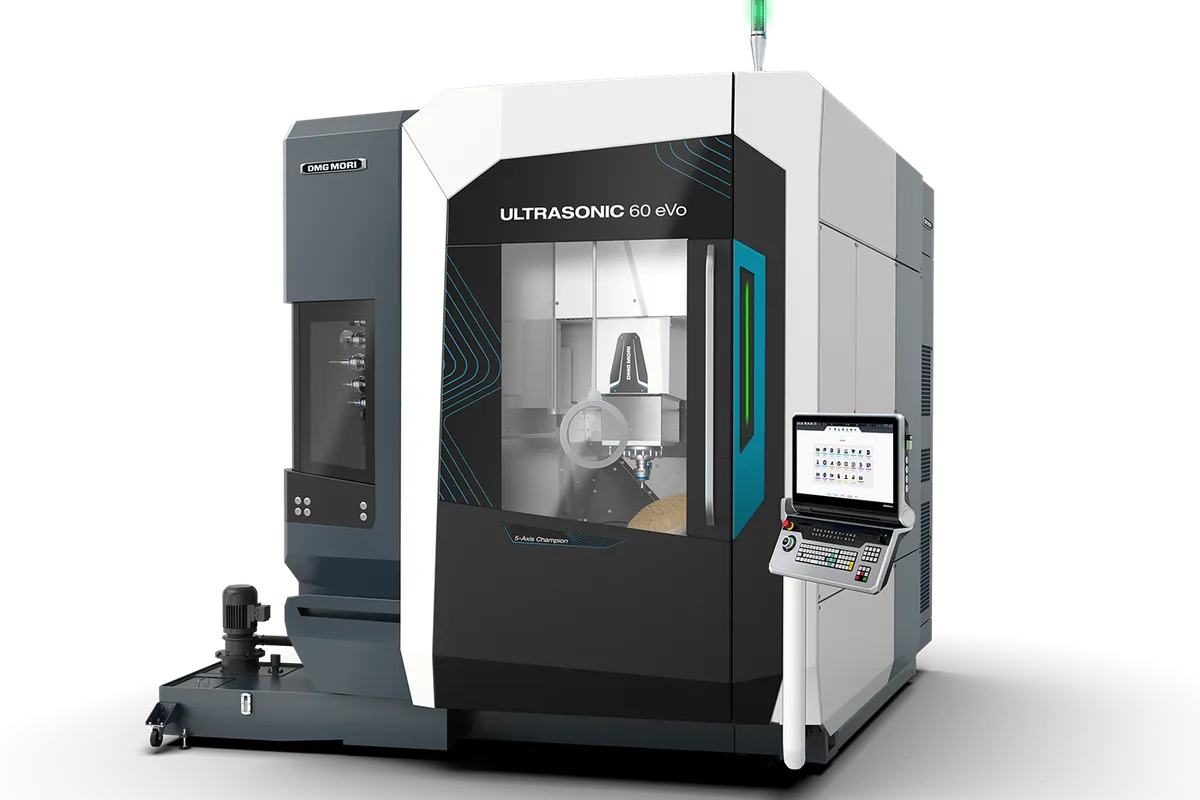

DMG Mori ULTRASONIC 60 eVo linear
Image: dmgmori.com, DMG Mori
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Max Workpiece ⌀
max workpiece height
How much does the DMG Mori ULTRASONIC 60 eVo linear cost?
Estimated price range
Our best estimate for a 5-axis machining center in this class — not a quote from DMG Mori. Configuration moves it a long way.
Overview
The DMG MORI ULTRASONIC 60 eVo linear has the proportions of a universal 5-axis machine: 750 mm (29.5 in) of X travel with 550 mm (21.7 in) in both Y and Z, and a swivel rotary table for parts up to 700 mm (27.6 in) in diameter and 550 mm (21.7 in) high. Ultrasonic machining, milling and mill-turn operation share that one table.
Two load figures appear for this machine and they are not the same. The technical data gives a maximum workpiece weight of 500 kg (1,102.3 lb). The Highlights for the swivel rotary table give a table load of up to 400 kg. Until DMG MORI confirms which applies to the configuration on the quotation, plan fixtures and parts around the lower number. The B-axis swivel range is -5° to +110°.
Spindle choice depends on which of the machine's jobs comes first. As standard there is a speedMASTER with 20,000 rpm. For roughing, the optional speedMASTER brings 200 Nm with a 15,000 rpm top speed; for fine tools, the optional motorspindle reaches 24,000 rpm. Mill-turn operation is listed with a C-axis speed of up to 1,200 rpm and a motorspindle with 18,000 rpm, 130 Nm and HSK A63. On a part near the 700 mm diameter limit that table speed is far more than turning needs, so its use is on small diameters.
The ultrasonic actuator system is HSK-A63 on this model. Frequency is detected and adapted automatically, amplitude is regulated and the feed is adjusted automatically, and DMG MORI puts the reduction in process forces at up to 50%. Cooling covers the table unit with its bearings and drives, the bearings and spindle nuts of the ball screw drives, and the guideways of X, Y and Z. The ULTRASONIC 80 eVo linear has 800 mm (31.5 in) of X and 650 mm (25.6 in) of Y on the same 550 mm (21.7 in) of Z.
Full Specifications
| Parameter | Value |
|---|---|
| Max Workpiece Diameter | 700 mm (27.6 in) |
| Max Workpiece Height | 550 mm (21.7 in) |
| Max Workpiece Weight | 500 kg (1,102.3 lb) |
| X-Axis Travel | 750 mm (29.5 in) |
| Y-Axis Travel | 550 mm (21.7 in) |
| Z-Axis Travel | 550 mm (21.7 in) |
| Max Spindle Speed | 20,000 rpm (speedMASTER, standard version); 24,000 rpm motorspindle (option) |
| B Axis Swivel | -5° / +110° |
| Spindle Torque | 200 Nm with speedMASTER 15,000 rpm (option) |
| Mill Turn Spindle | Motorspindle with 18,000 rpm, 130 Nm and HSK A63 |
| Table Speed | Up to 1,200 rpm (C-axis, mill-turn operation) |
| Ultrasonic Interface | HSK-A63 actuator system |
Specifications sourced from dmgmori.com — verified 2026-10-02
Strengths & Limitations
Strengths
- 750 mm (29.5 in) of X travel with 550 mm (21.7 in) in Y and Z, for parts up to 700 mm (27.6 in) in diameter
- Standard speedMASTER spindle with 20,000 rpm; 200 Nm and 24,000 rpm versions are options
- Mill-turn operation with a C-axis speed of up to 1,200 rpm and a motorspindle with 18,000 rpm and 130 Nm
- Automatic frequency detection, amplitude regulation and automatic feed adjustment for the ultrasonic process
- Cooling of the table unit, of the ball screw bearings and spindle nuts, and of the guideways in X, Y and Z
Limitations
- The Highlights give a table load of up to 400 kg while the technical data gives 500 kg (1,102.3 lb) as maximum workpiece weight; the applicable figure needs confirming
- The 200 Nm spindle is optional and tops out at 15,000 rpm
- The ultrasonic actuator system is listed for HSK-A63 only on this model
- The B-axis swivels just 5° in the negative direction
Best For
Frequently Asked Questions
01
DMG MORI states two figures. The technical data gives a maximum workpiece weight of 500 kg (1,102.3 lb), and the Highlights for the swivel rotary table say table load up to 400 kg. Ask DMG MORI which one applies to the table being quoted, and work to 400 kg until that is answered.
02
The standard version is a speedMASTER with 20,000 rpm, a general-purpose choice. The optional speedMASTER with 15,000 rpm and 200 Nm suits heavier cuts, and the optional motorspindle with 24,000 rpm suits small tools. For mill-turn operation a motorspindle with 18,000 rpm, 130 Nm and HSK A63 is listed.
03
Yes, DMG MORI lists mill-turn operation with a C-axis speed of up to 1,200 rpm. The spindle named for it is a motorspindle with 18,000 rpm, 130 Nm and HSK A63. The Highlights do not state whether mill-turn is part of the base machine, so check that on the quotation.
04
Travels are 750 mm (29.5 in) in X, 550 mm (21.7 in) in Y and 550 mm (21.7 in) in Z. The workpiece can be up to 700 mm (27.6 in) in diameter and 550 mm (21.7 in) high. Maximum height equals the Z travel, so the tallest parts leave no stroke to spare for long tools.
05
The ULTRASONIC 60 precision has 600 mm (23.6 in) of travel in X and Y and 510 mm (20.1 in) in Z. The eVo linear trades Y for X, with 750 mm (29.5 in) of X and 550 mm (21.7 in) of Y, and has 550 mm (21.7 in) of Z. Its Highlights list mill-turn operation and three spindle choices.
