CHMER RV1283L

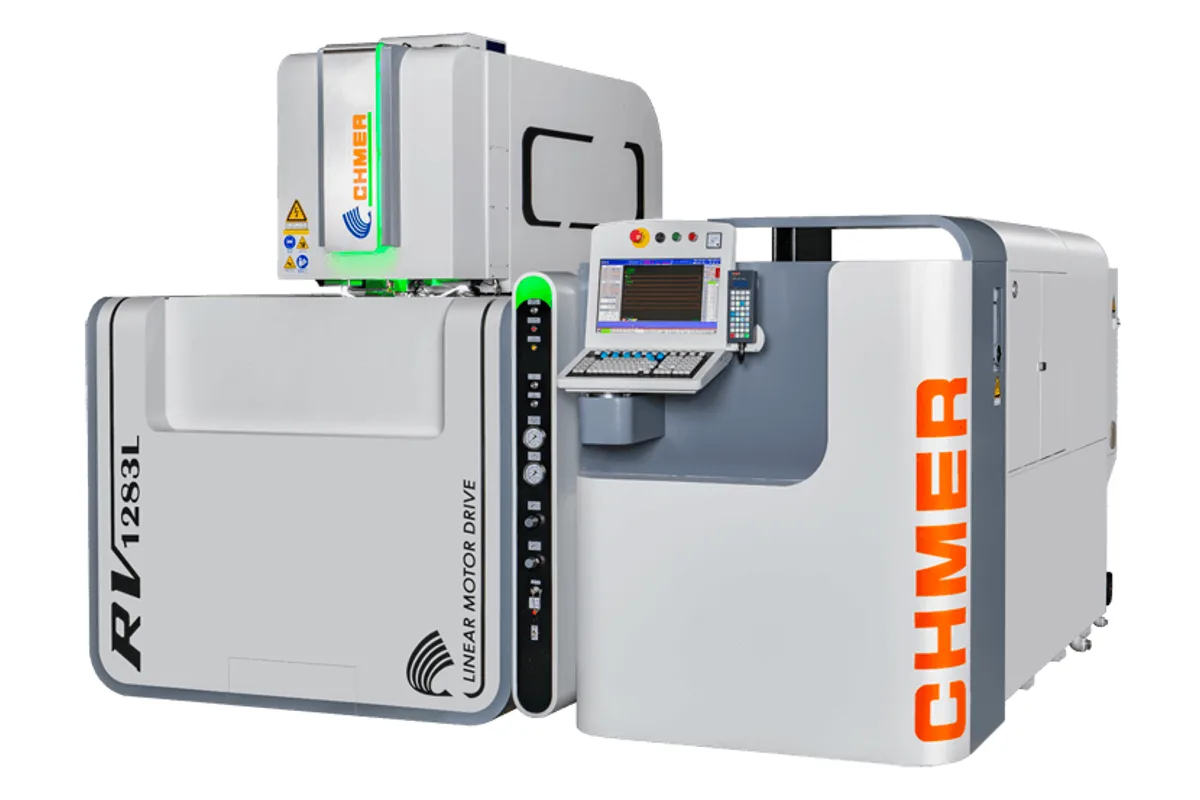

Image: chmer.com, CHMER
Key Specifications
x axis travel
y axis travel
z axis travel
uv axis travel
max workpiece size
max workpiece weight
How much does the CHMER RV1283L cost?
Price estimate
We do not have a price for the CHMER RV1283L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The CHMER RV1283L is the widest wire EDM in the RV series at standard height: 1,200 x 800 mm (47.2 x 31.5 in) of X and Y travel with 300 mm (11.8 in) of Z. The fixed table takes a workpiece of 1,600 x 1,100 x 295 mm (63.0 x 43.3 x 11.6 in) weighing up to 5,000 kg (11,023 lb).
The Y axis is the reason to choose it. At 800 mm it is a third longer than the 600 mm of the RV1063L, which matters for square mould bases and for plates with openings spread across their full width. The load rating is the same on both machines, so the larger frame buys reach, not capacity.
Linear motors drive X and Y, and the maximum feed is 1,800 mm/min (70.9 ipm). Crossing 1,200 mm at that rate takes the better part of a minute, so on a plate with many openings the order of the cuts is worth planning. U, V and Z run on AC servo motors; U and V travel 150 x 150 mm (5.9 x 5.9 in), for a taper rating of ±21°/80mm.
CHMER lists the machine at 8,800 kg (19,400 lb) with outside dimensions of 4,830 x 3,835 x 2,250 mm (190.2 x 151.0 x 88.6 in). The series description names moulds and spare parts for aerospace, automobile, energy and electronics as the intended work.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,200 mm (47.2 in) |
| Y Axis Travel | 800 mm (31.5 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| Uv Axis Travel | 150 x 150 mm (5.9 x 5.9 in) |
| Max Workpiece Size | 1,600 x 1,100 x 295 mm (63.0 x 43.3 x 11.6 in) (W x D x H) |
| Max Workpiece Weight | 5,000 kg (11,023 lb) |
| Xy Feed Rate | Max. 1,800 mm/min (70.9 ipm) |
| Axis Drive System | X,Y axis by linear Motor; U,V,Z axis by AC Servo |
| Wire Diameter | 0.15-0.3 mm (0.006-0.012 in); standard 0.25 mm (0.010 in) |
| Wire Feed Rate Max | 300 mm/sec (11.8 in/sec) |
| Wire Tension | 300-2,500 gf |
| Taper Angle | ±21°/80mm (Wide Angle Nozzle DA+DB=15mm) |
| Machine Dimensions | 4,830 x 3,835 x 2,250 mm (190.2 x 151.0 x 88.6 in) (W x D x H) |
| Machine Weight | 8,800 kg (19,400 lb) |
Specifications sourced from chmer.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,200 x 800 mm (47.2 x 31.5 in) of X and Y travel
- Workpieces up to 1,600 x 1,100 x 295 mm (63.0 x 43.3 x 11.6 in) and 5,000 kg (11,023 lb)
- Fixed table with X and Y linear motors
- Standard-height frame at 2,250 mm (88.6 in)
- i8 power supply and IVC regulated power supply, as described for the series
Limitations
- 4,830 x 3,835 mm (190.2 x 151.0 in) footprint
- Z travel limited to 300 mm (11.8 in); the RV1285L has 500 mm
- Load rating is no higher than on the smaller RV1063L
- 1,800 mm/min (70.9 ipm) is slow across 1,200 mm of travel
Best For
Frequently Asked Questions
01
X travel is 1,200 mm (47.2 in) and Y travel 800 mm (31.5 in), with 300 mm (11.8 in) of Z. The maximum workpiece is 1,600 x 1,100 x 295 mm (63.0 x 43.3 x 11.6 in).
02
No. Both are rated for 5,000 kg (11,023 lb). The RV1283L offers 1,200 x 800 mm of travel against 1,000 x 600 mm on the RV1063L, and weighs 8,800 kg (19,400 lb) against 8,000 kg (17,637 lb).
03
4,830 x 3,835 x 2,250 mm (190.2 x 151.0 x 88.6 in), width by depth by height, and 8,800 kg (19,400 lb). Allow for a workpiece of up to 5,000 kg (11,023 lb) and the water when checking the floor.
04
The taper row reads ±21°/80mm (Wide Angle Nozzle DA+DB=15mm). U and V axis travel is 150 x 150 mm (5.9 x 5.9 in).
