CHMER RX1063F

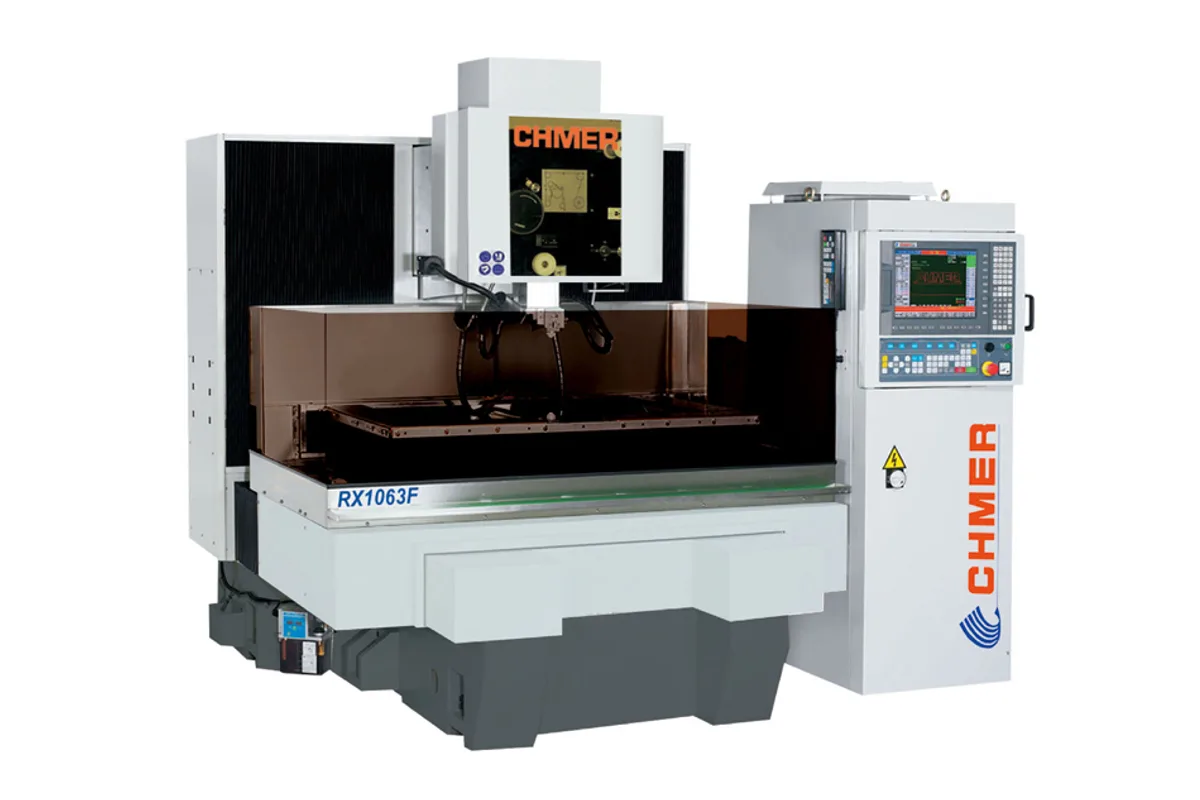

Image: chmer.com, CHMER
Key Specifications
x axis travel
y axis travel
z axis travel
uv axis travel
max workpiece size
max workpiece weight
How much does the CHMER RX1063F cost?
Price estimate
We do not have a price for the CHMER RX1063F that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The CHMER RX1063F is the metre-class wire EDM of the RX series: 1,000 mm (39.4 in) of X travel, 600 mm (23.6 in) of Y and 300 mm (11.8 in) of Z, with a workpiece rating of 3,000 kg (6,614 lb). A plate of 1,430 x 900 x 295 mm (56.3 x 35.4 x 11.6 in) fits the work area.
Those figures put it a full size above the RX853F, which stops at 800 x 500 mm of travel and 2,000 kg (4,409 lb). The tank grows too, to 650 L (172 gal), and CHMER fits four paper filters as standard to match. Machine weight is 6,500 kg (14,330 lb) on a 2,700 x 3,000 mm (106.3 x 118.1 in) footprint, so a fully loaded machine with water and a maximum-weight part comes to about ten tonnes on the floor.
Taper capability is ±21°/140 with the wide-angled nozzle, and U and V travel is 150 x 150 mm (5.9 x 5.9 in). The axes run on AC servo motors with a maximum X Y feed rate of 800 mm/min (31.5 ipm). That is slow for repositioning across a metre of travel, so cycle planning on plates with many scattered openings should allow for it. CHMER lists Auto Wire Threading (AWT) as an option; on work of this size it is hard to do without.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,000 mm (39.4 in) |
| Y Axis Travel | 600 mm (23.6 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| Uv Axis Travel | 150 x 150 mm (5.9 x 5.9 in) |
| Max Workpiece Size | 1,430 x 900 x 295 mm (56.3 x 35.4 x 11.6 in) (W x D x H) |
| Max Workpiece Weight | 3,000 kg (6,614 lb) |
| Xy Feed Rate | Max. 800 mm/min (31.5 ipm) |
| Axis Drive System | AC Servo Motor |
| Wire Diameter | 0.15-0.3 mm (0.006-0.012 in); standard 0.25 mm (0.010 in) |
| Wire Feed Rate Max | 300 mm/sec (11.8 in/sec) |
| Wire Tension | 300-2,500 gf |
| Taper Angle | ±21°/140 (wide-angled nozzle, DA+DB=15mm) |
| Machine Dimensions | 2,700 x 3,000 x 2,200 mm (106.3 x 118.1 x 86.6 in) (W x D x H) |
| Machine Weight | 6,500 kg (14,330 lb) |
| Tank Capacity | 650 L (172 gal) |
Specifications sourced from chmer.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,000 x 600 mm (39.4 x 23.6 in) of X and Y travel for metre-class mould plates
- 3,000 kg (6,614 lb) workpiece rating
- Workpiece envelope of 1,430 x 900 x 295 mm (56.3 x 35.4 x 11.6 in)
- Four paper filters, a swinging panel and two 2T water chillers are standard
- ±21°/140 taper rating with 150 x 150 mm (5.9 x 5.9 in) U and V travel
Limitations
- Z travel is 300 mm (11.8 in), the same as the smaller RX853F
- 800 mm/min (31.5 ipm) maximum feed is slow across 1,000 mm of X travel
- Auto Wire Threading (AWT) is not standard
- 6,500 kg (14,330 lb) machine weight before water and workpiece
Best For
Frequently Asked Questions
01
X is 1,000 mm (39.4 in), Y is 600 mm (23.6 in) and Z is 300 mm (11.8 in). The U and V axes travel 150 x 150 mm (5.9 x 5.9 in). The largest workpiece listed is 1,430 x 900 x 295 mm (56.3 x 35.4 x 11.6 in).
02
It is the next size up. The RX1063F offers 1,000 x 600 mm of travel, 3,000 kg (6,614 lb) of load and a 650 L (172 gal) tank. The RX853F offers 800 x 500 mm, 2,000 kg (4,409 lb) and 340 L (90 gal). Z travel, taper rating and the wire system are the same.
03
The machine weighs 6,500 kg (14,330 lb) and measures 2,700 x 3,000 x 2,200 mm (106.3 x 118.1 x 86.6 in). The tank adds 650 L (172 gal) of water and the table can carry up to 3,000 kg (6,614 lb).
04
Wire diameters from 0.15 to 0.3 mm (0.006-0.012 in), with 0.25 mm (0.010 in) standard. Wire tension is 300-2,500 gf and the maximum wire feed rate is 300 mm/sec (11.8 in/sec). Diamond guides are on the standard accessory list.
