CHMER G64F

Q: How much does the CHMER G64F cost?

The price estimate for the CHMER G64F is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/chmer-g64f#price; the request is passed to CHMER or an authorised dealer.

Specs verified 2026-10-05 · chmer.com Updated 2026-10-05

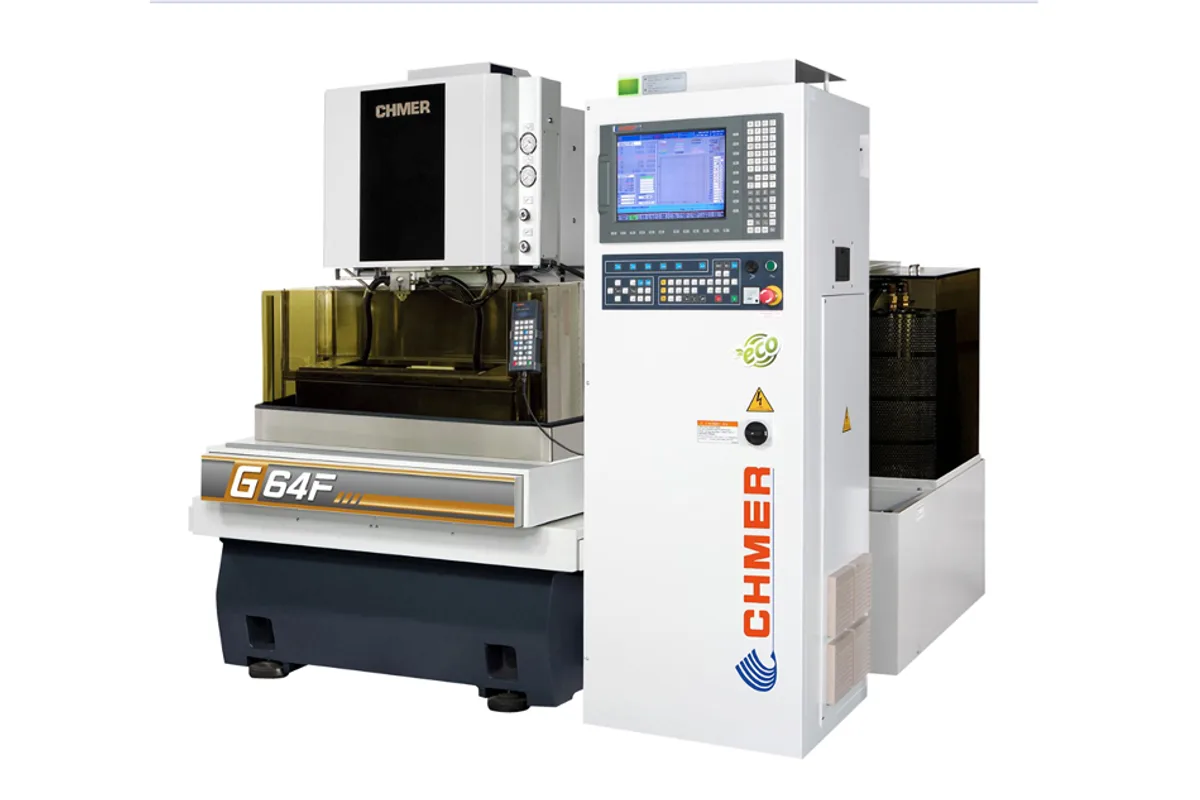

Image: chmer.com, CHMER

Key Specifications

x axis travel

600 mm (23.6 in)

y axis travel

400 mm (15.7 in)

z axis travel

300 mm (11.8 in)

uv axis travel

100 x 100 mm (3.9 x 3.9 in)

max workpiece size

910 x 700 x 295 mm (35.8 x 27.6 x 11.6 in) (W x D x H)

max workpiece weight

600 kg (1,323 lb)

How much does the CHMER G64F cost?

Price estimate

Uncertain

We do not have a price for the CHMER G64F that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The CHMER G64F wire EDM pairs the 600 x 400 mm (23.6 x 15.7 in) travel of the largest G-series frame with the highest workpiece rating in that series, 600 kg (1,323 lb). Z travel is 300 mm (11.8 in). Its tank capacity is listed at 340 L (90 gal), less than half of the 760 L (201 gal) given for the G64S on the same travels.

Heavy plates are the reason to pick this variant. A 910 x 700 x 295 mm (35.8 x 27.6 x 11.6 in) steel block can weigh more than the 450 kg (992 lb) the G64S is rated for, and the G64F is the variant with the margin for it. Taper capability is unchanged at ±21°/100 with the wide-angled nozzle, on 100 x 100 mm (3.9 x 3.9 in) of U and V travel.

Axis drives are AC servo motors and feed is limited to 800 mm/min (31.5 ipm). The wire range is 0.15-0.3 mm with 0.25 mm standard, fed at up to 300 mm/sec. Standard equipment includes a 1T chiller on the flushing circuit and a 2T chiller on the submerged circuit, plus ion exchange resins for both. If long unattended runs are planned, note that Auto Wire Threading (AWT), the 30kgs wire feeder and the wire chopper all sit on the option list. CHMER publishes two different sets of outside dimensions and weights for this model; they are left out of the table here until CHMER confirms them.

Full Specifications

Parameter	Value
X Axis Travel	600 mm (23.6 in)
Y Axis Travel	400 mm (15.7 in)
Z Axis Travel	300 mm (11.8 in)
Uv Axis Travel	100 x 100 mm (3.9 x 3.9 in)
Max Workpiece Size	910 x 700 x 295 mm (35.8 x 27.6 x 11.6 in) (W x D x H)
Max Workpiece Weight	600 kg (1,323 lb)
Xy Feed Rate	Max. 800 mm/min (31.5 ipm)
Axis Drive System	AC Servo Motor
Wire Diameter	0.15-0.3 mm (0.006-0.012 in); standard 0.25 mm (0.010 in)
Wire Feed Rate Max	300 mm/sec (11.8 in/sec)
Wire Tension	300-2,500 gf
Taper Angle	±21°/100 (wide-angled nozzle, DA+DB=15mm)
Tank Capacity	340 L (90 gal)

Specifications sourced from chmer.com — verified 2026-10-05

Strengths & Limitations

Strengths

600 kg (1,323 lb) workpiece rating, the highest in the G series
600 x 400 x 300 mm (23.6 x 15.7 x 11.8 in) of X, Y and Z travel
±21°/100 taper rating with 100 x 100 mm (3.9 x 3.9 in) U and V travel
Smaller 340 L (90 gal) tank means less water to fill, chill and deionise

Limitations

Tank capacity of 340 L (90 gal) is well below the 760 L (201 gal) of the G64S
Feed rate tops out at 800 mm/min (31.5 ipm) on AC servo drives
AWT, 30kgs wire feeder and wire chopper are all options
Outside dimensions and machine weight are published inconsistently and need confirming

Best For

Heavy die plates up to 600 kg (1,323 lb) Cut areas up to 600 x 400 mm (23.6 x 15.7 in) Tapered openings up to ±21° Workpieces up to 295 mm tall

Frequently Asked Questions

01 Why choose the G64F over the G64S?

For workpiece weight. The G64F is rated for 600 kg (1,323 lb) and the G64S for 450 kg (992 lb), with the same 600 x 400 x 300 mm travels and the same ±21°/100 taper rating. The G64F's tank is listed at 340 L (90 gal) and the G64S's at 760 L (201 gal).

02 What size workpiece fits the G64F?

Up to 910 x 700 x 295 mm (35.8 x 27.6 x 11.6 in) and 600 kg (1,323 lb). X and Y travel is 600 x 400 mm, so a plate at the full listed size cannot be reached everywhere by the wire in one clamping.

03 What wire does the G64F use?

Wire from 0.15 to 0.3 mm (0.006-0.012 in) in diameter, with 0.25 mm (0.010 in) as standard. The maximum wire feed rate is 300 mm/sec (11.8 in/sec) and wire tension is 300-2,500 gf. Diamond guides and a spool of brass wire are standard accessories.

04 Are chillers included with the G64F?

Yes. The standard accessory list names a 1T water chiller for flushing and a 2T water chiller for submerged work. A DC inverter chiller is offered as an option. Paper filters and ion exchange resins for both circuits are also standard.
