CHMER RV1063L
Image: chmer.com, CHMER
Key Specifications
x axis travel
y axis travel
z axis travel
uv axis travel
max workpiece size
max workpiece weight
How much does the CHMER RV1063L cost?
Price estimate
We do not have a price for the CHMER RV1063L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

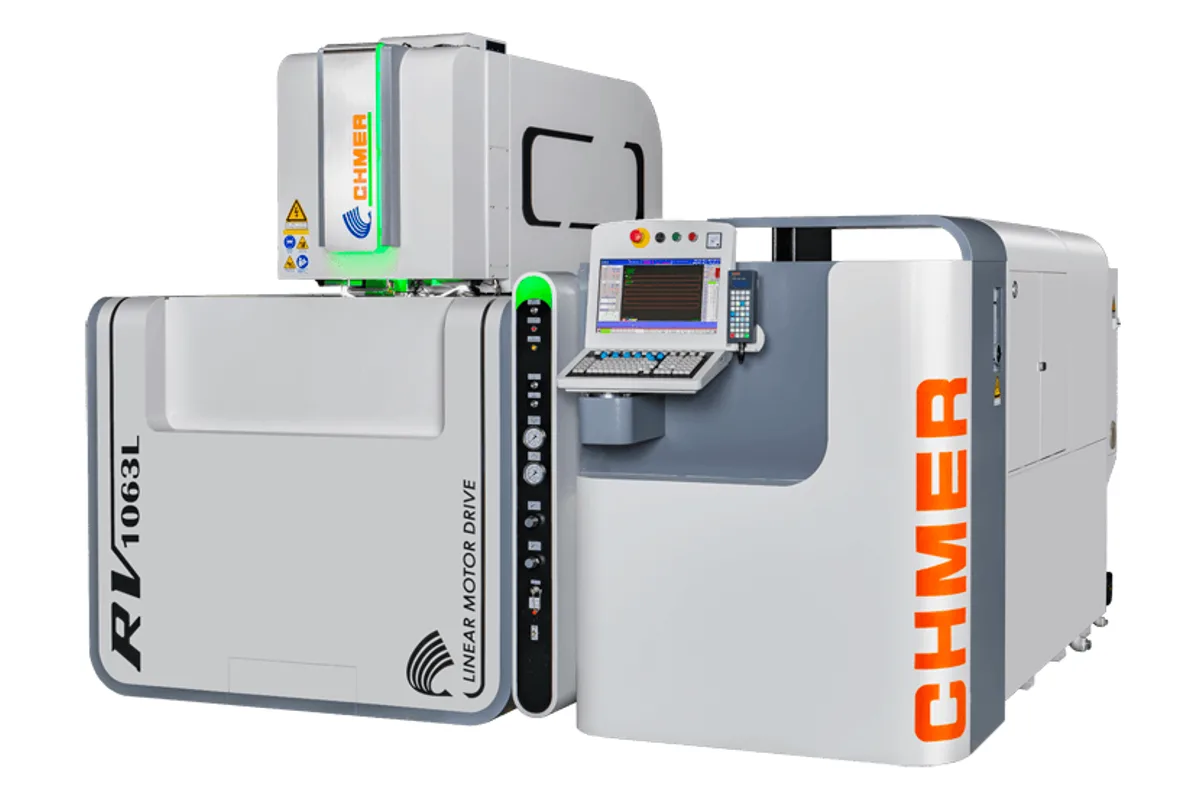

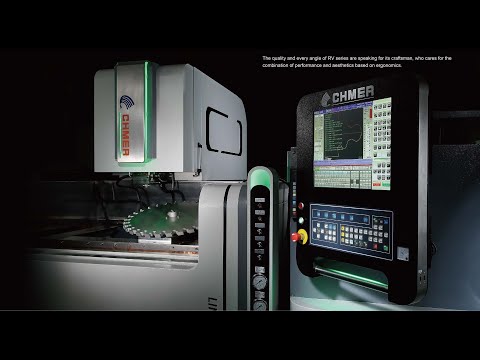

The CHMER RV1063L is a fixed-table wire EDM with 1,000 x 600 mm (39.4 x 23.6 in) of X and Y travel and a 5,000 kg (11,023 lb) workpiece rating. Z travel is 300 mm (11.8 in). It is the first RV model to carry the series' top load figure: the RV853L below it is rated for 3,000 kg (6,614 lb).
Five tonnes on a wire EDM table is only practical because the table does not move. CHMER's description of the RV structure is a rigid column designed by FEA, riding on three large span linear guideways, with a fixed table for heavy loads. A plate of 1,400 x 900 x 295 mm (55.1 x 35.4 x 11.6 in) can be loaded by crane and left where it lands.
X and Y are linear motor axes with a maximum feed of 1,800 mm/min (70.9 ipm); U, V and Z use AC servo motors. U and V travel is 150 x 150 mm (5.9 x 5.9 in) and the taper rating ±21°/80mm. CHMER's networking features apply across the series: a Kanban information centre on a server, an Android app, and status messages by LINE and e-mail.
Machine weight is 8,000 kg (17,637 lb) and the footprint 4,300 x 3,445 mm (169.3 x 135.6 in). One slip on CHMER's page: the specification column on the RV1063L page is headed with another model's name, although the figures are for this machine's travels.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,000 mm (39.4 in) |
| Y Axis Travel | 600 mm (23.6 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| Uv Axis Travel | 150 x 150 mm (5.9 x 5.9 in) |
| Max Workpiece Size | 1,400 x 900 x 295 mm (55.1 x 35.4 x 11.6 in) (W x D x H) |
| Max Workpiece Weight | 5,000 kg (11,023 lb) |
| Xy Feed Rate | Max. 1,800 mm/min (70.9 ipm) |
| Axis Drive System | X,Y axis by linear Motor; U,V,Z axis by AC Servo |
| Wire Diameter | 0.15-0.3 mm (0.006-0.012 in); standard 0.25 mm (0.010 in) |
| Wire Feed Rate Max | 300 mm/sec (11.8 in/sec) |
| Wire Tension | 300-2,500 gf |
| Taper Angle | ±21°/80mm (Wide Angle Nozzle DA+DB=15mm) |
| Machine Dimensions | 4,300 x 3,445 x 2,250 mm (169.3 x 135.6 x 88.6 in) (W x D x H) |
| Machine Weight | 8,000 kg (17,637 lb) |
Specifications sourced from chmer.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 5,000 kg (11,023 lb) workpiece rating on a fixed table
- 1,000 x 600 mm (39.4 x 23.6 in) of X and Y travel
- Linear motor X and Y axes with 1,800 mm/min (70.9 ipm) feed
- Workpieces up to 1,400 x 900 x 295 mm (55.1 x 35.4 x 11.6 in)
- Kanban information centre, Android app and LINE or e-mail status messages
Limitations
- Z travel of 300 mm (11.8 in); the RV1065L offers 500 mm
- Footprint of 4,300 x 3,445 mm (169.3 x 135.6 in) and 8,000 kg (17,637 lb)
- Taper band of 80mm at ±21°
- Accessory lists are not published for this model
Best For
Frequently Asked Questions
01
The maximum workpiece weight is 5,000 kg (11,023 lb) and the maximum size 1,400 x 900 x 295 mm (55.1 x 35.4 x 11.6 in). The table is fixed, which CHMER says is for heavy loads.
02
X 1,000 mm (39.4 in), Y 600 mm (23.6 in), Z 300 mm (11.8 in). The U and V axes travel 150 x 150 mm (5.9 x 5.9 in), and the taper rating is ±21°/80mm with the wide-angle nozzle.
03
The RV1063L has 1,000 x 600 mm of travel and carries 5,000 kg (11,023 lb). The RV853L has 800 x 500 mm and carries 3,000 kg (6,614 lb), but lists a taller taper band, ±21°/150mm. Z travel is 300 mm on both.
04
CHMER describes an intelligent information centre giving Kanban machine data through servers, an Android app showing machine status, utility, spare parts life management and the machining path, and instant data through LINE and e-mail.
