CHMER RQ6040L

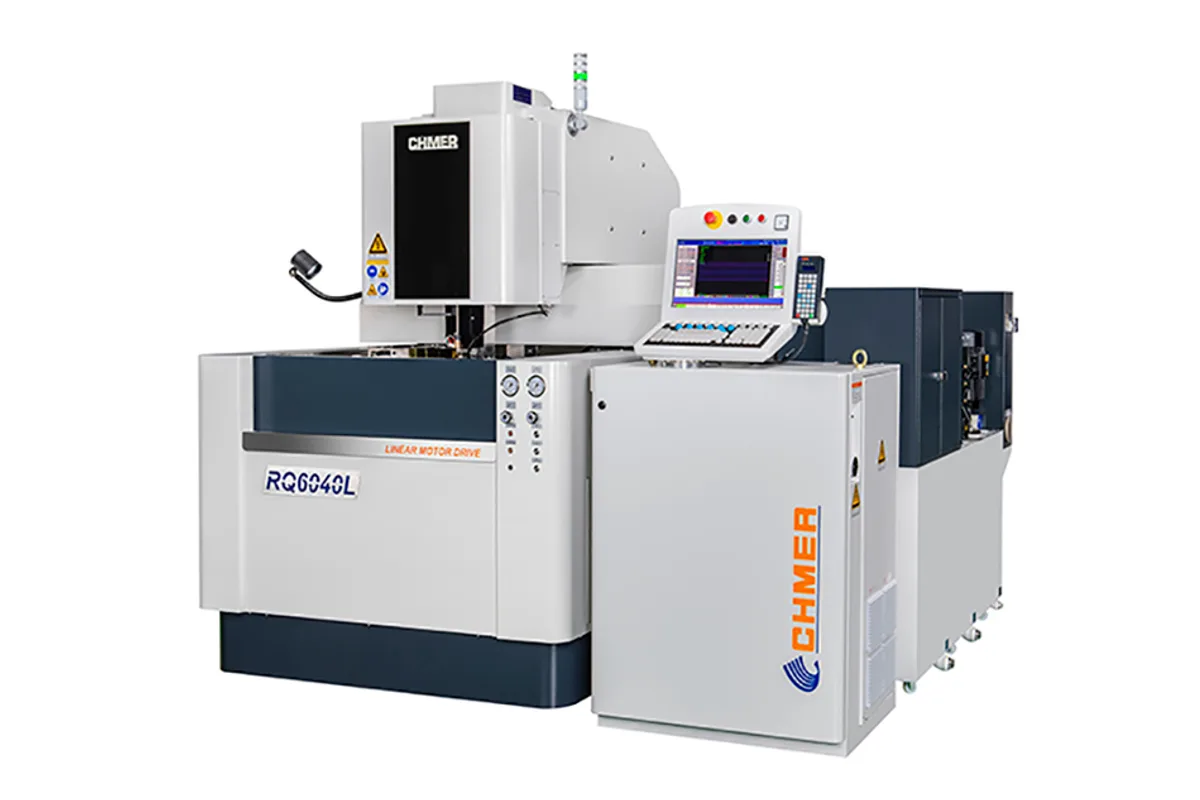

Image: chmer.com, CHMER
Key Specifications
x axis travel
y axis travel
z axis travel
uv axis travel
max workpiece size
max workpiece weight
How much does the CHMER RQ6040L cost?
Price estimate
We do not have a price for the CHMER RQ6040L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The CHMER RQ6040L is the top of the RQ gantry wire EDM series and the only model in it with 300 mm (11.8 in) of Z travel. X and Y are 600 mm (23.6 in) and 400 mm (15.7 in). The workpiece limit is 1,000 kg (2,205 lb), which is a large step from the 600 kg (1,323 lb) of the RQ5030L below it.
Taper capability steps up as well. U and V travel is 100 x 100 mm (3.9 x 3.9 in) and the taper row reads ±21°/100 with the wide-angled nozzle, where the three smaller RQ models are held to a narrower angle on shorter U and V axes. Mould work with draft angles on thick plates is the obvious use.
CHMER's description of the series applies in full: a rigid gantry structure, UX1 linear motors made in-house, AWT and the i8+ power supply. The linear motors are on X and Y only, with a maximum feed rate of 1,800 mm/min (70.9 ipm).
Installation needs more planning than for its siblings. The machine weighs 4,000 kg (8,818 lb), stands 2,450 mm high on a 2,700 x 2,800 mm base, and CHMER gives the tank capacity as 1,250 kg (2,756 lb). The workpiece size row lists 910 x 600 x 300 mm / 910 x 600 x 150 mm; the table does not say which condition the lower height belongs to.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 600 mm (23.6 in) |
| Y Axis Travel | 400 mm (15.7 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| Uv Axis Travel | 100 x 100 mm (3.9 x 3.9 in) |
| Max Workpiece Size | 910 x 600 x 300 mm / 910 x 600 x 150 mm (35.8 x 23.6 x 11.8 in / 35.8 x 23.6 x 5.9 in) |
| Max Workpiece Weight | 1,000 kg (2,205 lb) |
| Xy Feed Rate | Max. 1,800 mm/min (70.9 ipm) |
| Axis Drive System | XY-Linear Motor / UVZ-AC Servo Motor |
| Wire Diameter | 0.15-0.3 mm (0.006-0.012 in); standard 0.25 mm (0.010 in) |
| Wire Feed Rate Max | 300 mm/sec (11.8 in/sec) |
| Wire Tension | 300-2,500 gf |
| Taper Angle | ±21°/100 (wide-angled nozzle, DA+DB=15mm) |
| Machine Dimensions | 2,700 x 2,800 x 2,450 mm (106.3 x 110.2 x 96.5 in) (W x D x H) |
| Machine Weight | 4,000 kg (8,818 lb) |
| Tank Capacity | 1,250 kg (2,756 lb) |
Specifications sourced from chmer.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 600 x 400 x 300 mm (23.6 x 15.7 x 11.8 in) travels, the largest in the RQ series
- 1,000 kg (2,205 lb) workpiece rating
- ±21°/100 taper rating on 100 x 100 mm (3.9 x 3.9 in) of U and V travel
- X and Y linear motors with up to 1,800 mm/min (70.9 ipm) feed
- Rigid gantry structure with the i8+ power supply
Limitations
- 4,000 kg (8,818 lb) machine weight and a 2,700 x 2,800 mm (106.3 x 110.2 in) base
- Linear motors on X and Y only; U, V and Z use AC servo motors
- The second workpiece height in the table, 150 mm, is not explained
Best For
Frequently Asked Questions
01
It has more of everything: 600 x 400 x 300 mm travels, 100 x 100 mm U and V axes, a ±21°/100 taper rating and a 1,000 kg (2,205 lb) workpiece limit. The RQ5030L, the next size down, has 500 x 300 x 200 mm travels and carries 600 kg (1,323 lb).
02
Up to 1,000 kg (2,205 lb). The workpiece size row gives 910 x 600 x 300 mm / 910 x 600 x 150 mm (35.8 x 23.6 x 11.8 in / 35.8 x 23.6 x 5.9 in), two figures that CHMER's table does not label.
03
Outside dimensions are 2,700 x 2,800 x 2,450 mm (106.3 x 110.2 x 96.5 in), width by depth by height. The machine weighs 4,000 kg (8,818 lb), and tank capacity is stated as 1,250 kg (2,756 lb).
04
No. The axis drive system is listed as XY-Linear Motor / UVZ-AC Servo Motor. CHMER says the linear motors are its own UX1 units, made in-house, and the X Y feed rate reaches 1,800 mm/min (70.9 ipm).
