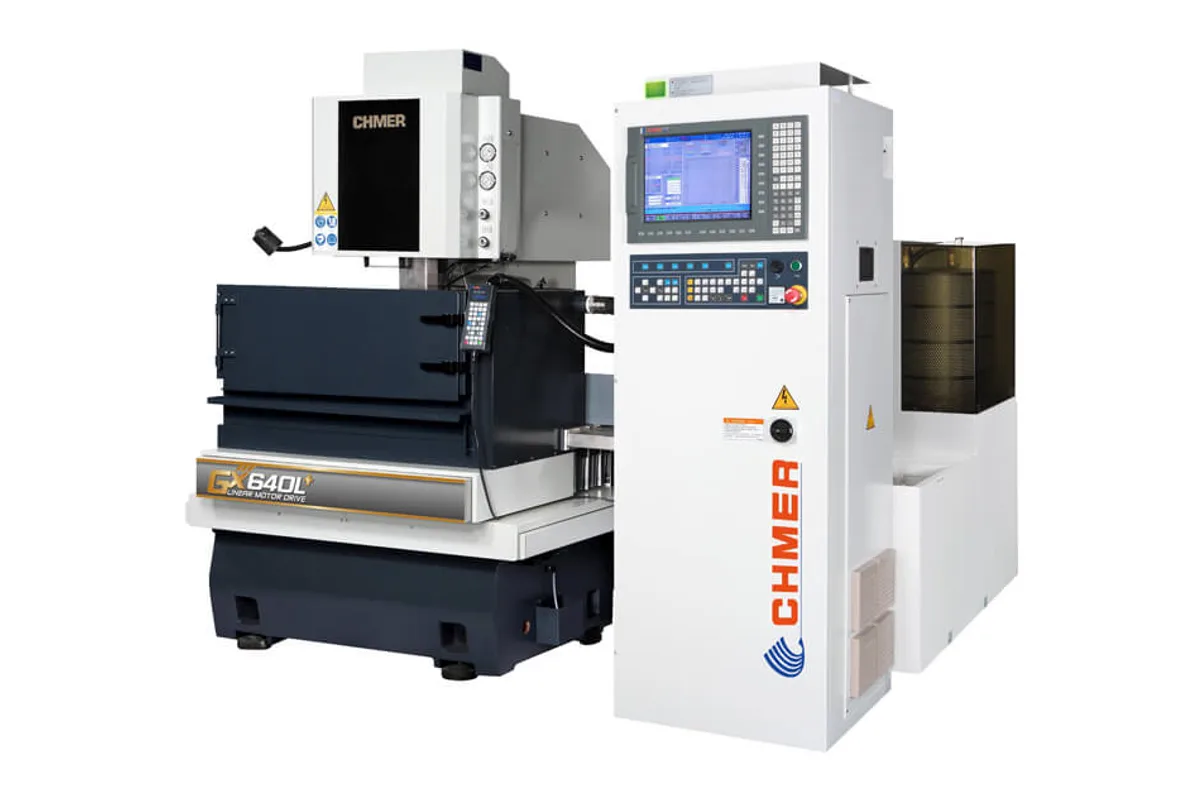

CHMER GX640L+
Image: chmer.com, CHMER
Key Specifications
x axis travel
y axis travel
z axis travel
uv axis travel
max workpiece size
max workpiece weight
How much does the CHMER GX640L+ cost?
Price estimate
We do not have a price for the CHMER GX640L+ that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Linear motors on X and Y, 600 x 400 mm (23.6 x 15.7 in) of travel and a 600 kg (1,323 lb) workpiece limit: that is the CHMER GX640L+ wire EDM in one line. Z travel is 300 mm (11.8 in), and the column in CHMER's table is headed GX640L+ SUBMERGED.
The larger of the two GX+ machines differs from the GX430L+ in more than table size. Its U and V axes travel 100 x 100 mm (3.9 x 3.9 in) and the taper rating rises to ±21°/100 with the wide-angled nozzle; the GX430L+ is listed at ±14.5°/80. Workpieces up to 910 x 700 x 295 mm (35.8 x 27.6 x 11.6 in) fit the tank.
Feed rate on the linear axes is a maximum of 1,800 mm/min (70.9 ipm). U, V and Z are AC servo driven. The wire system accepts 0.15-0.3 mm wire, with 0.25 mm standard, tensioned between 300 and 2,500 gf and fed at up to 300 mm/sec.
A buyer should note what the page leaves out. There is no accessory list for this model and the table has no outside dimensions, only a machine weight of 3,800 kg (8,377 lb) and a supply of 3 Phase 220 ±10% 11kva. Whether automatic wire threading and a chiller are part of the base machine is a question for the quotation.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 600 mm (23.6 in) |
| Y Axis Travel | 400 mm (15.7 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| Uv Axis Travel | 100 x 100 mm (3.9 x 3.9 in) |
| Max Workpiece Size | 910 x 700 x 295 mm (35.8 x 27.6 x 11.6 in) (W x D x H) |
| Max Workpiece Weight | 600 kg (1,323 lb) |
| Xy Feed Rate | Max. 1,800 mm/min (70.9 ipm) |
| Axis Drive System | XY - Linear Motor / UVZ - AC Servo Motor |
| Wire Diameter | 0.15-0.3 mm (0.006-0.012 in); standard 0.25 mm (0.010 in) |
| Wire Feed Rate Max | 300 mm/sec (11.8 in/sec) |
| Wire Tension | 300-2,500 gf |
| Taper Angle | ±21°/100(wide-angled nozzle,DA+DB=15mm) |
| Machine Weight | 3,800 kg (8,377 lb) |
| Power Requirement | 3 Phase 220 ±10% 11kva |
Specifications sourced from chmer.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 600 x 400 x 300 mm (23.6 x 15.7 x 11.8 in) travels with X and Y linear motors
- ±21°/100 taper rating on 100 x 100 mm (3.9 x 3.9 in) U and V axes
- 600 kg (1,323 lb) workpiece limit
- Maximum X Y feed rate of 1,800 mm/min (70.9 ipm)
Limitations
- No accessory list on the model page, so standard equipment is unconfirmed
- Outside dimensions are not in the published table
- U, V and Z remain on AC servo motors
- 3,800 kg (8,377 lb) machine weight
Best For
Frequently Asked Questions
01
X, Y and Z travel of 600 x 400 x 300 mm (23.6 x 15.7 x 11.8 in), U and V travel of 100 x 100 mm, a maximum workpiece of 910 x 700 x 295 mm and 600 kg (1,323 lb), and a machine weight of 3,800 kg (8,377 lb).
02
It is larger in every travel and has a wider taper rating: ±21°/100 on 100 x 100 mm U and V axes, against ±14.5°/80 on 60 x 60 mm for the GX430L+. The GX430L+ carries 350 kg (772 lb) and weighs 2,600 kg (5,732 lb). Both list the same 1,800 mm/min feed and the same power supply.
03
X and Y. The drive row reads XY - Linear Motor / UVZ - AC Servo Motor. The maximum X Y feed rate is 1,800 mm/min (70.9 ipm) and the maximum wire feed rate is 300 mm/sec (11.8 in/sec).
04
CHMER's table states the maximum power consumption as 3 Phase 220 ±10% 11kva. No air or water service figures are given on the page, so ask CHMER for the full installation requirements along with the footprint.
