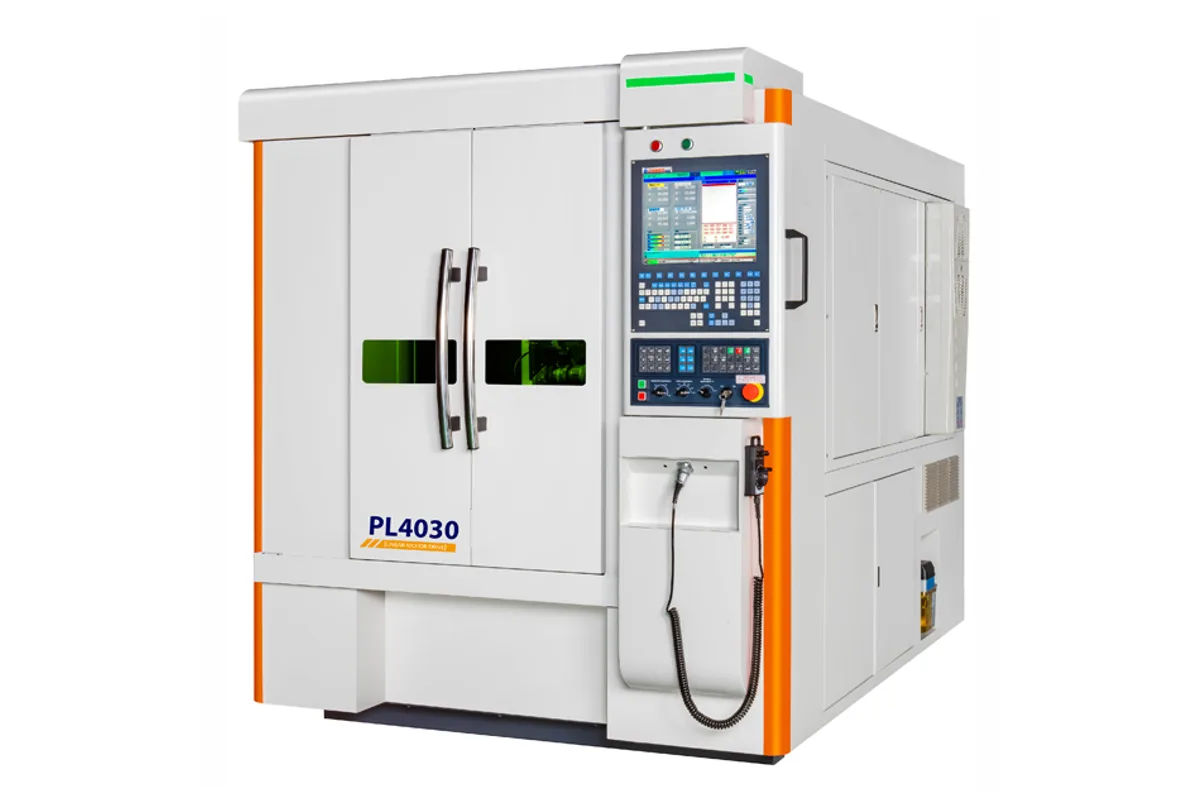

CHMER PL4030
Image: chmer.com, CHMER
Key Specifications
x axis travel
y axis travel
z axis travel
cutting area
machine weight
max axis speed
How much does the CHMER PL4030 cost?
Price estimate
We do not have a price for the CHMER PL4030 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The CHMER PL4030 is the smallest of CHMER's PL series, which the maker's catalogue titles high precision linear motor drive laser cutting machines. It cuts thin material, 0.05-2.0 mm (0.002-0.079 in), over a processing size of 400 x 300 mm (15.7 x 11.8 in).
This is not a sheet-metal fabrication laser. The thickness range and the small table point to precision parts cut from foil and thin plate, where a wire EDM or an etching process might otherwise be used. Z travel is 120 mm (4.7 in), and the X and Y axes run at up to 15 m/min (591 ipm).
CHMER's page gives no laser source or laser power for the model, only a power consumption of 2-8 kVA, so the source options have to come from the quotation. The machine weighs 2,000 kg (4,409 lb) and measures 1,600 x 2,250 x 2,060 mm.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 400 mm (15.7 in) |
| Y Axis Travel | 300 mm (11.8 in) |
| Z Axis Travel | 120 mm (4.7 in) |
| Cutting Area | 400 x 300 mm (15.7 x 11.8 in) |
| Machine Weight | 2,000 kg (4,409 lb) |
| Max Axis Speed | 15 m/min (591 ipm) |
| Power Consumption | 2-8 kVA |
| Machine Dimensions | 1,600 x 2,250 x 2,060 mm (63.0 x 88.6 x 81.1 in) (W x D x H) |
| Cutting Thickness | 0.05-2.0 mm (0.002-0.079 in) |
Specifications sourced from chmer.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Cuts material from 0.05 mm to 2.0 mm thick
- Linear motor drive, per the series title, with axis speed up to 15 m/min (591 ipm)
- Compact: 1,600 x 2,250 x 2,060 mm (63.0 x 88.6 x 81.1 in), 2,000 kg (4,409 lb)
Limitations
- Processing size limited to 400 x 300 mm (15.7 x 11.8 in)
- Laser source and laser power are not published on the model page
- Maximum cutting thickness of 2.0 mm
Best For
Frequently Asked Questions
01
CHMER lists a cutting thickness of 0.05-2.0 mm (0.002-0.079 in). The processing size is 400 x 300 mm (15.7 x 11.8 in), with 120 mm (4.7 in) of Z axis travel.
02
The model page does not state a laser source or laser power. It lists a power consumption of 2-8 kVA and a maximum X and Y axis operating speed of 15 m/min (591 ipm). Ask CHMER which sources are offered.
03
Outside dimensions are 1,600 x 2,250 x 2,060 mm (63.0 x 88.6 x 81.1 in), width by depth by height, and net weight is 2,000 kg (4,409 lb).
