CHMER RV855L

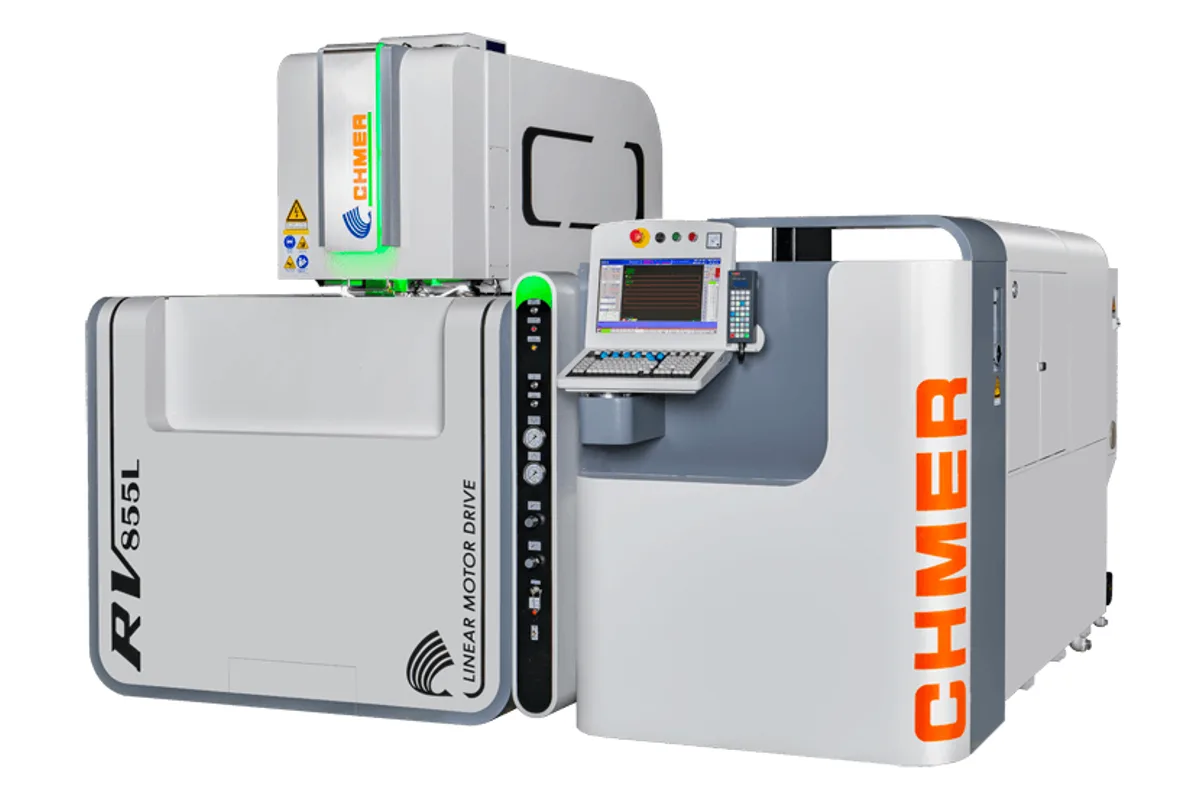

Image: chmer.com, CHMER
Key Specifications
x axis travel
y axis travel
z axis travel
uv axis travel
max workpiece size
max workpiece weight
How much does the CHMER RV855L cost?
Price estimate
We do not have a price for the CHMER RV855L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Half a metre of Z travel is what distinguishes the CHMER RV855L wire EDM. On the 800 x 500 mm (31.5 x 19.7 in) fixed-table frame of the RV series it provides 500 mm (19.7 in) of Z, and the table lists a workpiece of 1,200 x 800 x 495 mm (47.2 x 31.5 x 19.5 in). The column is headed RV855L SUBMERGED.
Cutting a section that tall under water puts demands on the generator and on flushing, and it is here that CHMER's claims for the i8 power supply are most relevant: more powerful wire-break suppression, and better heat dissipation for continuous high-speed machining. Whether a given part can be cut at full height depends on material and wire, so a test cut is the sensible basis for a purchase.
The rest of the table follows the RV853L. Load is 3,000 kg (6,614 lb), U and V travel 150 x 150 mm (5.9 x 5.9 in), and X and Y run on linear motors at up to 1,800 mm/min (70.9 ipm). The taper rating is ±21°/80mm with the wide-angle nozzle.
The tall Z raises the machine. Overall height is 2,750 mm (108.3 in), against 2,200 mm for the RV853L, and weight is 8,000 kg (17,637 lb). Check the building's clear height and the route in before ordering.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 800 mm (31.5 in) |
| Y Axis Travel | 500 mm (19.7 in) |
| Z Axis Travel | 500 mm (19.7 in) |
| Uv Axis Travel | 150 x 150 mm (5.9 x 5.9 in) |
| Max Workpiece Size | 1,200 x 800 x 495 mm (47.2 x 31.5 x 19.5 in) (W x D x H) |
| Max Workpiece Weight | 3,000 kg (6,614 lb) |
| Xy Feed Rate | Max. 1,800 mm/min (70.9 ipm) |
| Axis Drive System | X,Y axis by linear Motor; U,V,Z axis by AC Servo |
| Wire Diameter | 0.15-0.3 mm (0.006-0.012 in); standard 0.25 mm (0.010 in) |
| Wire Feed Rate Max | 300 mm/sec (11.8 in/sec) |
| Wire Tension | 300-2,500 gf |
| Taper Angle | ±21°/80mm (Wide Angle Nozzle DA+DB=15mm) |
| Machine Dimensions | 3,850 x 3,250 x 2,750 mm (151.6 x 128.0 x 108.3 in) (W x D x H) |
| Machine Weight | 8,000 kg (17,637 lb) |
Specifications sourced from chmer.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 500 mm (19.7 in) of Z travel for workpieces up to 495 mm tall
- 3,000 kg (6,614 lb) workpiece rating on a fixed table
- X and Y linear motors, feed up to 1,800 mm/min (70.9 ipm)
- i8 power supply with stronger wire-break suppression, as CHMER describes it
- 800 x 500 mm (31.5 x 19.7 in) of X and Y travel
Limitations
- Overall height of 2,750 mm (108.3 in) needs a tall bay
- Taper rating is ±21°/80mm, against ±21°/150mm on the RV853L
- 8,000 kg (17,637 lb) machine weight
- No accessory list on this model's page
Best For
Frequently Asked Questions
01
Z travel is 500 mm (19.7 in) and the maximum workpiece size is 1,200 x 800 x 495 mm (47.2 x 31.5 x 19.5 in). CHMER heads the specification column RV855L SUBMERGED.
02
The RV855L has 500 mm of Z travel and stands 2,750 mm (108.3 in) high. The RV853L has 300 mm of Z, stands 2,200 mm high and has the taller ±21°/150mm taper rating. X and Y travel, U and V travel and the 3,000 kg (6,614 lb) load are shared.
03
Outside dimensions are 3,850 x 3,250 x 2,750 mm (151.6 x 128.0 x 108.3 in), width by depth by height. Machine weight is 8,000 kg (17,637 lb).
04
Wire of 0.15-0.3 mm (0.006-0.012 in) with 0.25 mm (0.010 in) as standard, at 300-2,500 gf of tension. The maximum wire feed rate is 300 mm/sec (11.8 in/sec).
