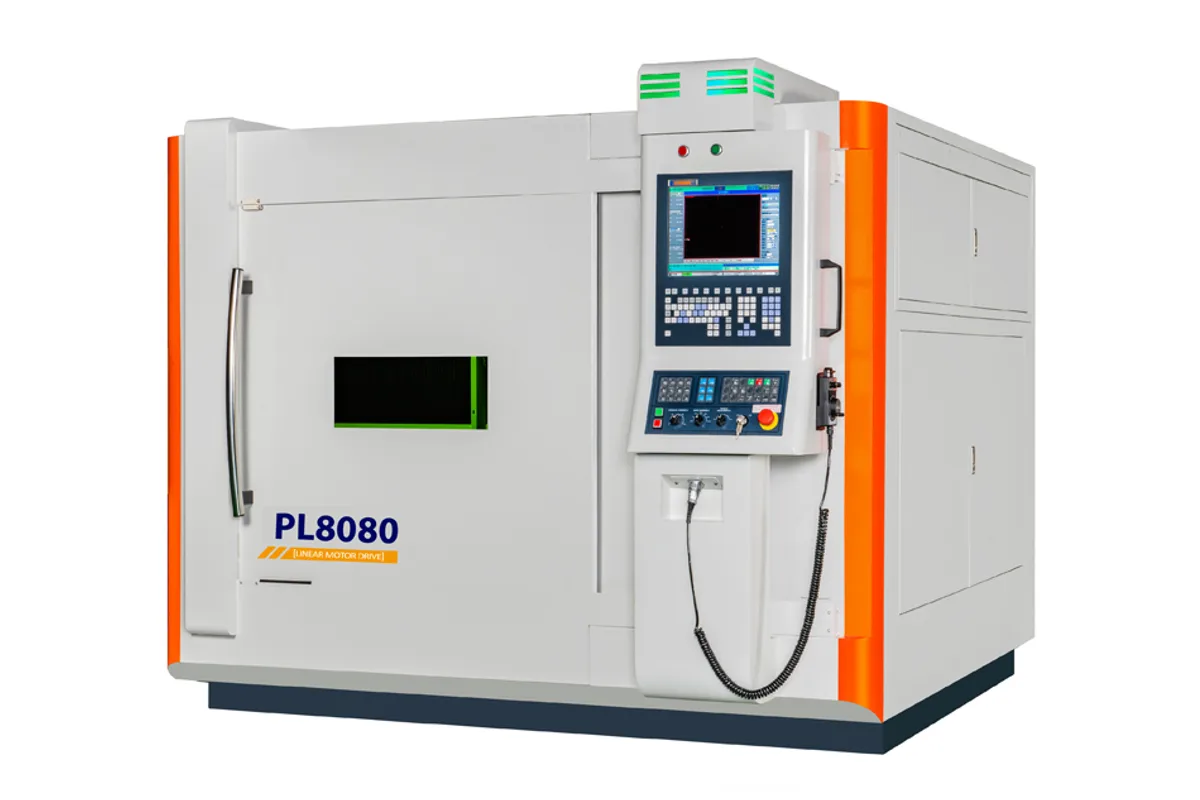

CHMER PL8080
Image: chmer.com, CHMER
Key Specifications
x axis travel
y axis travel
z axis travel
cutting area
max workpiece weight
machine weight
How much does the CHMER PL8080 cost?
Price estimate
We do not have a price for the CHMER PL8080 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The CHMER PL8080 is the largest laser cutting machine in CHMER's PL series, with a square processing size of 800 x 800 mm (31.5 x 31.5 in). Like the rest of the series it is a thin-material machine: the cutting thickness range is 0.05-2.0 mm (0.002-0.079 in).
It is also the fastest of the three. The X and Y axes, which the series catalogue describes as linear motor driven, reach 25 m/min (984 ipm), against 20 m/min (787 ipm) on the PL6880. On thin sheet the laser can cut faster than most axes can follow through tight geometry, so axis speed and response, not laser power, often set the cycle time on dense nests of small parts.
A square 800 mm table suits nested production, where many small parts are cut from one blank and the frame is handled as a unit. The blank and its carrier may weigh up to 120 kg (265 lb). Z travel is 120 mm (4.7 in), which is clearance for fixtures and formed parts more than a working stroke.
The machine is only a little larger than the PL6880: 2,250 x 2,190 x 2,100 mm (88.6 x 86.2 x 82.7 in) and 2,400 kg (5,291 lb). Power consumption is 2-24 kVA. The laser source itself is not described on CHMER's page. One slip there: the specification column on the PL8080 page is headed PL6880, though the figures agree with this model's summary box.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 800 mm (31.5 in) |
| Y Axis Travel | 800 mm (31.5 in) |
| Z Axis Travel | 120 mm (4.7 in) |
| Cutting Area | 800 x 800 mm (31.5 x 31.5 in) |
| Max Workpiece Weight | 120 kg (265 lb) |
| Machine Weight | 2,400 kg (5,291 lb) |
| Max Axis Speed | 25 m/min (984 ipm) |
| Power Consumption | 2-24 kVA |
| Machine Dimensions | 2,250 x 2,190 x 2,100 mm (88.6 x 86.2 x 82.7 in) (W x D x H) |
| Cutting Thickness | 0.05-2.0 mm (0.002-0.079 in) |
Specifications sourced from chmer.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 800 x 800 mm (31.5 x 31.5 in) processing size, the largest in the PL series
- Axis speed up to 25 m/min (984 ipm)
- Cutting thickness range of 0.05-2.0 mm (0.002-0.079 in)
- 2,400 kg (5,291 lb) machine, 2,250 x 2,190 mm (88.6 x 86.2 in) footprint
Limitations
- Limited to material 2.0 mm thick or less
- Workpiece weight of 120 kg (265 lb) at most
- Laser source type and power are not published
- Z axis travel of 120 mm (4.7 in)
Best For
Frequently Asked Questions
01
The processing size is 800 x 800 mm (31.5 x 31.5 in), equal to the X and Y axis travel. Maximum workpiece weight is 120 kg (265 lb) and Z axis travel is 120 mm (4.7 in).
02
The PL8080 has an 800 x 800 mm processing size and a maximum axis speed of 25 m/min (984 ipm). The PL6880 has 680 x 800 mm and 20 m/min (787 ipm). Cutting thickness, workpiece weight and power consumption are the same; the PL8080 weighs 2,400 kg (5,291 lb) against 2,300 kg (5,071 lb) for the PL6880.
03
From 0.05 mm to 2.0 mm (0.002-0.079 in). CHMER's catalogue titles the PL series high precision linear motor drive laser cutting machines; it is built for thin material, not plate.
04
Outside dimensions are 2,250 x 2,190 x 2,100 mm (88.6 x 86.2 x 82.7 in), net weight is 2,400 kg (5,291 lb) and power consumption is 2-24 kVA.
