CHMER CM A64C

Q: How much does the CHMER CM A64C cost?

The price estimate for the CHMER CM A64C is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/chmer-cm-a64c#price; the request is passed to CHMER or an authorised dealer.

Specs verified 2026-10-05 · chmer.com Updated 2026-10-05

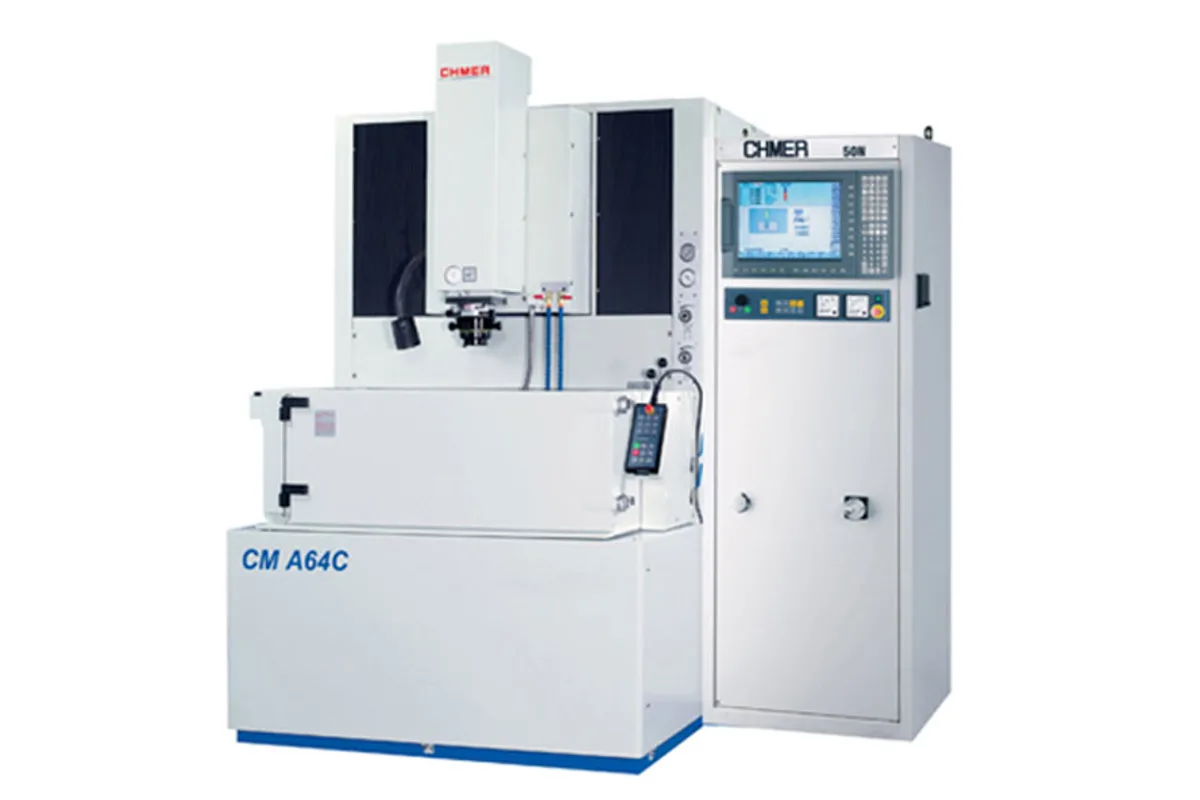

Image: chmer.com, CHMER

Key Specifications

Table Size

800 x 500 mm (31.5 x 19.7 in) (W x D)

work tank size

1,350 x 740 x 450 mm (53.1 x 29.1 x 17.7 in) (W x D x H)

x axis travel

600 mm (23.6 in)

y axis travel

400 mm (15.7 in)

z axis travel

350 mm (13.8 in)

max electrode weight

100 kg (220 lb)

How much does the CHMER CM A64C cost?

Price estimate

Uncertain

We do not have a price for the CHMER CM A64C that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The CHMER CM A64C is the largest bridge-type CNC die sinker in the A series, with table travel of 600 x 400 mm (23.6 x 15.7 in), a ram travel of 350 mm (13.8 in) and a 1,500 kg (3,300 lb) workpiece limit. Unlike its two smaller siblings, which share one frame, this model has its own: an 800 x 500 mm (31.5 x 19.7 in) table in a 1,350 x 740 x 450 mm work tank.

Machine weight is 3,000 kg (6,600 lb) and the outline 2,185 x 1,950 x 2,370 mm (86.1 x 76.7 x 93.3 in). For a sinker that accepts a tonne and a half, that is a small machine, and it is the argument CHMER makes for the bridge layout.

What does not grow is the burning end. Generator choices remain the built-in 50N and 75N, at 50 A and 75 A, and the electrode limit remains 100 kg (220 lb). Large-area roughing with big electrodes is therefore not this machine's strength. It suits medium cavities, ribs and detail work on mould halves that happen to be large and heavy.

The dielectric tank is larger, at 635 L (168 gal), with a paper filter. Control and accuracy features are those of the series: linear glass scales, closed-loop control and a dialogue PC-based CNC with automatic program creation. A tool changer and a C axis can be added as options.

Full Specifications

Parameter	Value
Table Size	800 x 500 mm (31.5 x 19.7 in) (W x D)
Work Tank Size	1,350 x 740 x 450 mm (53.1 x 29.1 x 17.7 in) (W x D x H)
X Axis Travel	600 mm (23.6 in)
Y Axis Travel	400 mm (15.7 in)
Z Axis Travel	350 mm (13.8 in)
Max Electrode Weight	100 kg (220 lb)
Max Workpiece Weight	1,500 kg (3,300 lb)
Machine Dimensions	2,185 x 1,950 x 2,370 mm (86.1 x 76.7 x 93.3 in) (W x D x H)
Machine Weight	3,000 kg (6,600 lb)
Dielectric Tank Model	DA64
Generator Models	50N / 75N
Max Machining Current	50 A (50N) / 75 A (75N)
Max Power Input	4 kVA (50N) / 5 kVA (75N)
Electrode Wear Rate	0.2%
Best Surface Roughness	0.25 μm Ra
Dielectric Volume	635 L (168 gal)
Filter Method	Paper filter

Specifications sourced from chmer.com — verified 2026-10-05

Strengths & Limitations

Strengths

1,500 kg (3,300 lb) workpiece capacity from a 3,000 kg (6,600 lb) machine
600 x 400 mm (23.6 x 15.7 in) table travel on an 800 x 500 mm (31.5 x 19.7 in) table
635 L (168 gal) built-in dielectric tank
Linear glass scales and closed-loop control
Outline of 2,185 x 1,950 x 2,370 mm (86.1 x 76.7 x 93.3 in)

Limitations

Generators limited to 50N and 75N, 75 A at most
Electrode weight limited to 100 kg (220 lb)
Ram travel of 350 mm (13.8 in) is no more than on the CM A43C
Tool changer and C axis are optional

Best For

Large, heavy mould halves with medium-size cavities Rib and detail burning to 0.25 μm Ra Workpieces up to 1,500 kg (3,300 lb) Shops wanting sinker capacity without a large footprint

Frequently Asked Questions

01 What is the capacity of the CM A64C?

Table travel is 600 x 400 mm (23.6 x 15.7 in) and ram travel 350 mm (13.8 in). The table is 800 x 500 mm (31.5 x 19.7 in), the work tank 1,350 x 740 x 450 mm, and the limits are 1,500 kg (3,300 lb) for the workpiece and 100 kg (220 lb) for the electrode.

02 How does the CM A64C compare with the CM A53C?

Against the CM A53C, the CM A64C has more travel (600 x 400 mm against 500 x 350 mm), a larger table and tank, a 1,500 kg (3,300 lb) workpiece limit against 1,000 kg (2,200 lb) and a 635 L (168 gal) dielectric tank against 480 L (127 gal). Ram travel and generator options are the same.

03 How large and heavy is the CM A64C?

Outside dimensions are 2,185 x 1,950 x 2,370 mm (86.1 x 76.7 x 93.3 in) and the machine weighs 3,000 kg (6,600 lb). The generator and dielectric tank are built in, so there are no separate cabinets to place.

04 What surface finish does the CM A64C achieve?

CHMER lists a best surface roughness of 0.25 μm Ra and an electrode wear rate of 0.2% for both the 50N and the 75N generator. The APC protection circuit is described as preventing arcing during finish machining.
