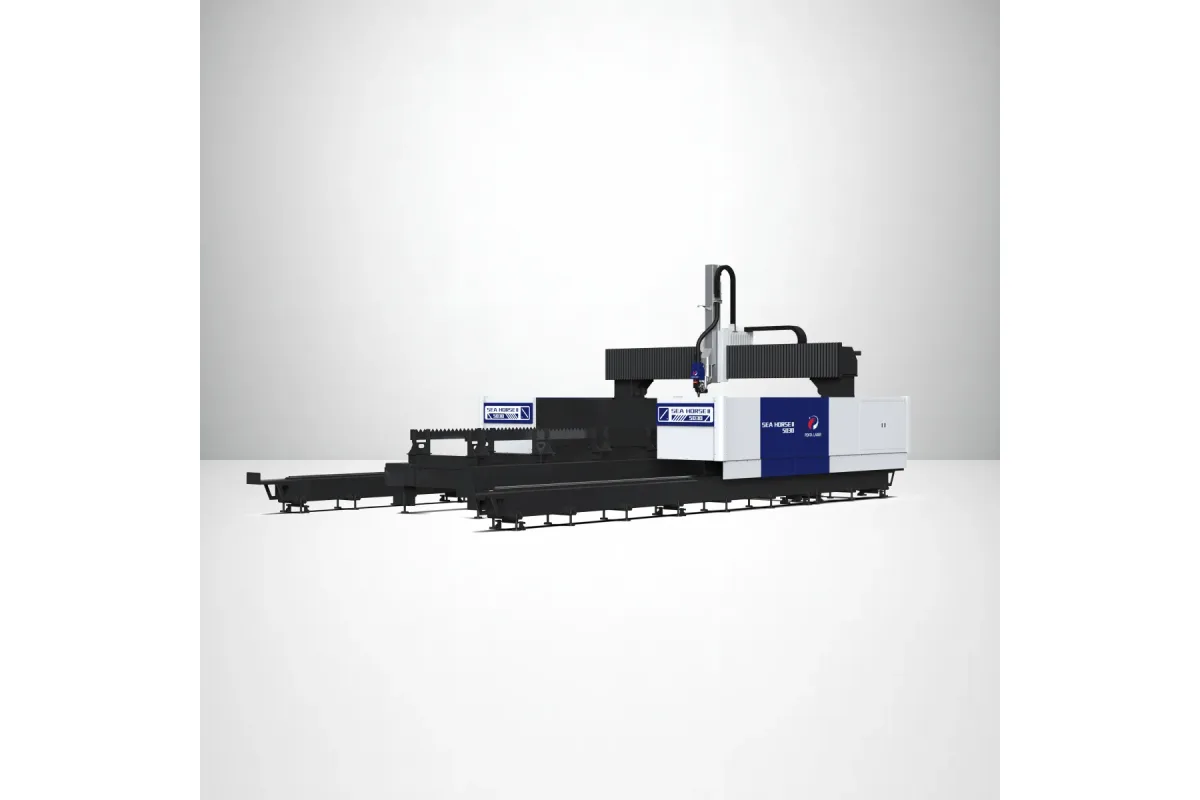

Penta Laser SEA HORSE II 26025
Image: pentalaser.com, Penta Laser
Key Specifications
Accuracy
Repeatability
x axis travel
y axis travel
z axis travel
max speed xy
How much does the Penta Laser SEA HORSE II 26025 cost?
Price estimate
We do not have a price for the Penta Laser SEA HORSE II 26025 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Penta Laser SEA HORSE II 26025 is a gantry laser cutting machine for structural steel: H-beams, channel steel, C-beams and flat plate. Its X travel is 26,050 mm (1,025.6 in), with 2,550 mm (100.4 in) of Y and 960 mm (37.8 in) of Z. That long bed is split into two stations, which Penta Laser calls a dual-station design for steel sections and plate.
Two working sizes are given. The cutting size is 13,000 × 2,500 mm (511.8 × 98.4 in), and the maximum cutting range for a section is 1,200 × 500 × 12,000 mm (47.2 × 19.7 × 472.4 in). Read together with the dual-station description, half of the X travel serves each station, so one side can be loaded while the other is cut.
The head works in five axes. The A axis is listed at +90° and the C axis at +45°, which is what lets the beam reach the flange and web of a section and cut bevels for weld preparation. X and Y move at up to 50 m/min. Positioning precision is ±0.15 mm/m on X and Y, and repeat precision is ±0.1 mm/m; over a 12,000 mm member those per-metre figures add up, so check them against the fit-up tolerance of the structure.
How the machine is equipped decides what it can cut. The option list offers either the section steel function alone or a 3-in-1 package covering section steel, flat vertical and flat bevel cutting. The section steel rack is manual or pneumatic automatic. Control is a dedicated Penta Laser CNC with automatic edge finding, multilayer processing and a process database.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 26,050 mm (1,025.6 in) |
| Y Axis Travel | 2,550 mm (100.4 in) |
| Z Axis Travel | 960 mm (37.8 in) |
| Max Speed Xy | 50 m/min |
| A C Axis Rotation | A-axis: +90°; C-axis: +45° |
| Positioning Accuracy | ±0.15 mm/m (X and Y axes) |
| Repeatability | ±0.1 mm/m (X and Y axes) |
| Cutting Area | 13,000 × 2,500 mm (511.8 × 98.4 in) |
| Max Cutting Range | 1,200 × 500 × 12,000 mm (47.2 × 19.7 × 472.4 in) |
Specifications sourced from pentalaser.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 26,050 mm (1,025.6 in) of X travel arranged as a dual-station machine for sections and plate
- Cuts sections up to 1,200 × 500 × 12,000 mm (47.2 × 19.7 × 472.4 in)
- Plate cutting size of 13,000 × 2,500 mm (511.8 × 98.4 in) on the same gantry
- Five-axis head with A-axis +90° and C-axis +45° rotation for flange, web and bevel cuts
- Dedicated CNC with automatic edge finding and multilayer processing
Limitations
- Positioning precision of ±0.15 mm/m and repeat precision of ±0.1 mm/m are structural-steel figures, not sheet-metal ones
- X and Y speed tops out at 50 m/min
- Flat vertical and flat bevel cutting come only with the 3-in-1 option; the alternative is the section steel function alone
- The table's two laser power rows disagree, so the available power has to be confirmed with the maker
Best For
Frequently Asked Questions
01
The maximum cutting range is listed as 1,200 × 500 × 12,000 mm (47.2 × 19.7 × 472.4 in). Penta Laser names H-beams, channel steel, C-beams and flat plates as the materials the machine supports.
02
Yes, depending on the configuration. The cutting size for plate is 13,000 × 2,500 mm (511.8 × 98.4 in). The option list offers the section steel function on its own or a 3-in-1 package of section steel, flat vertical and flat bevel cutting, so plate work should be specified at order.
03
Positioning precision of the X and Y axes is ±0.15 mm/m and repetitive positioning precision is ±0.1 mm/m. Both are stated per metre of travel, which matters on a machine with 26,050 mm (1,025.6 in) of X travel.
04
Penta Laser describes a dual-station design for efficient steel and plate processing. With 26,050 mm (1,025.6 in) of X travel and a 13,000 mm cutting length, the gantry can work at one station while material is handled at the other. The section steel rack is available as manual or pneumatic automatic.
