CHMER GLX643
Image: dlf9q0zq4dwf6.cloudfront.net, CHMER
Key Specifications
x axis travel
y axis travel
z axis travel
uv axis travel
max workpiece size
max workpiece weight
How much does the CHMER GLX643 cost?
Price estimate
We do not have a price for the CHMER GLX643 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

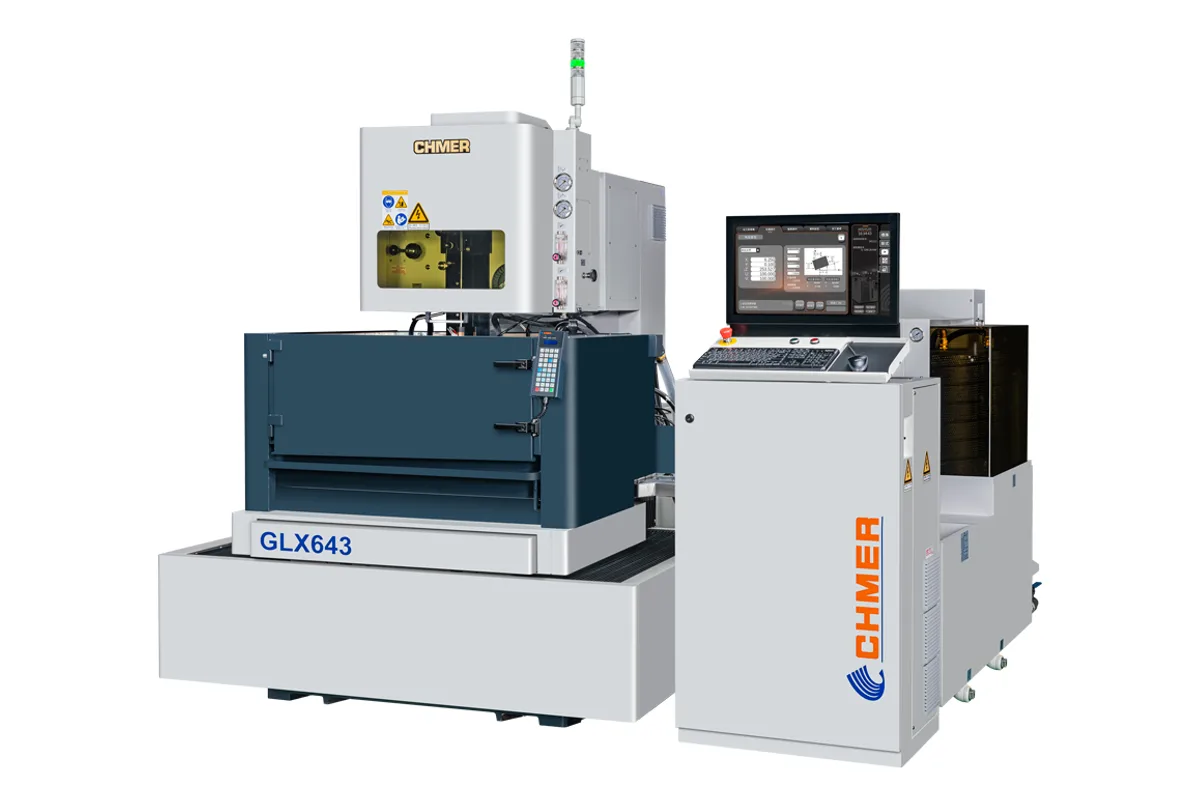

The CHMER GLX643 wire EDM covers 600 x 400 x 310 mm (23.6 x 15.7 x 12.2 in) with linear motors on X and Y. It is the larger GLX model, taking workpieces up to 910 x 700 x 305 mm (35.8 x 27.6 x 12.0 in) and 650 kg (1,433 lb).
CHMER's catalogue says the U/V travel went from 100 mm to 120 mm for this model, and the table confirms 120 x 120 mm (4.7 x 4.7 in). The maximum taper angle is given as ± 21°/140 with the wide angle nozzle, which is the main functional gain over the GLX432 and its ± 21°/110 apart from sheer size.
The structure is described as FEA-optimised, with a reinforced base and slide meant to hold precision when X and Y move together. That is a sensible thing to design for on a linear motor machine, since both axes accelerate hard on contour work. Feed rate is 1,800 mm/min (70.9 ipm).
Operation follows the series. The 6th Gen AWT re-threads under water, the water shield flushes itself clean, and a 24-inch monitor with keyboard and mouse forms the operator station. Dielectric capacity is 760 L (201 gal) with a 14 L resin filter. One caution: CHMER's catalogue and its web page disagree on this model's machine dimensions and net weight, so both rows are left out of the table until the maker confirms them.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 600 mm (23.6 in) |
| Y Axis Travel | 400 mm (15.7 in) |
| Z Axis Travel | 310 mm (12.2 in) |
| Uv Axis Travel | 120 x 120 mm (4.7 x 4.7 in) |
| Max Workpiece Size | 910 x 700 x 305 mm (35.8 x 27.6 x 12.0 in) |
| Max Workpiece Weight | 650 kg (1,433 lb) |
| Xy Feed Rate | 1,800 mm/min (70.9 ipm) |
| Axis Drive System | XY Axes Linear Motor Drive/ UVZ Axes AC Servo Motor Drive |
| Wire Diameter | 0.15-0.3 mm (0.006-0.012 in); standard 0.25 mm (0.010 in) |
| Wire Tension | 300-2,500 gf |
| Wire Feed Rate Max | 300 mm/sec (11.8 in/sec) |
| Wire Feeder Load Capacity | ≤ 8 kg (18 lb) |
| Taper Angle | ± 21°/140 (Wide Angle Nozzle, DA+DB=15) |
| Dielectric Capacity | 760 L (201 gal) |
| Filter | Paper |
| Ion Exchange Resin Filter | 14 L (3.7 gal) |
| Water Quality Control | Auto |
| Water Temperature Control | Auto |
| Power Supply Circuit | Transistor, No Resistance Loop |
| Discharge Mode | Rough Machining / Fine Machining / AC-μ Super Fine Finish |
| Max Power Consumption | 8 kVA |
Specifications sourced from dlf9q0zq4dwf6.cloudfront.net — verified 2026-10-05
Strengths & Limitations
Strengths
- 600 x 400 x 310 mm (23.6 x 15.7 x 12.2 in) travels on X/Y linear motors
- ± 21°/140 maximum taper angle with 120 x 120 mm (4.7 x 4.7 in) U and V travel
- Workpieces up to 910 x 700 x 305 mm and 650 kg (1,433 lb)
- 760 L (201 gal) dielectric capacity with automatic water quality and temperature control
- 6th Gen AWT, self-cleaning water shield and visual flow meter
Limitations
- Machine dimensions and net weight are published inconsistently
- 650 kg (1,433 lb) load is below the 800 kg (1,764 lb) of the NV643L
- Wire feeder capacity is 8 kg or less
- Maximum power consumption of 8 kVA to be allowed for
Best For
Frequently Asked Questions
01
The GLX643 has 600 x 400 x 310 mm travels, 120 x 120 mm U and V axes, a ± 21°/140 taper rating, a 650 kg (1,433 lb) load and 760 L (201 gal) of dielectric. The GLX432 has 400 x 300 x 250 mm travels, 100 x 100 mm U and V axes, ± 21°/110, 450 kg (992 lb) and 650 L (172 gal).
02
Maximum workpiece size is 910 x 700 x 305 mm (35.8 x 27.6 x 12.0 in) and maximum workpiece weight is 650 kg (1,433 lb). Z axis travel is 310 mm (12.2 in).
03
Maximum power consumption is 8 kVA. The power supply unit is a transistor circuit with no resistance loop, with rough machining, fine machining and AC-μ super fine finish discharge modes.
04
Yes. The GLX series has CHMER's 6th Gen AWT, which supports wire break and underwater threading and, with the automatic wire threading assistant device, threading of thick workpieces. CHMER states nearly 100% wire threading success.
