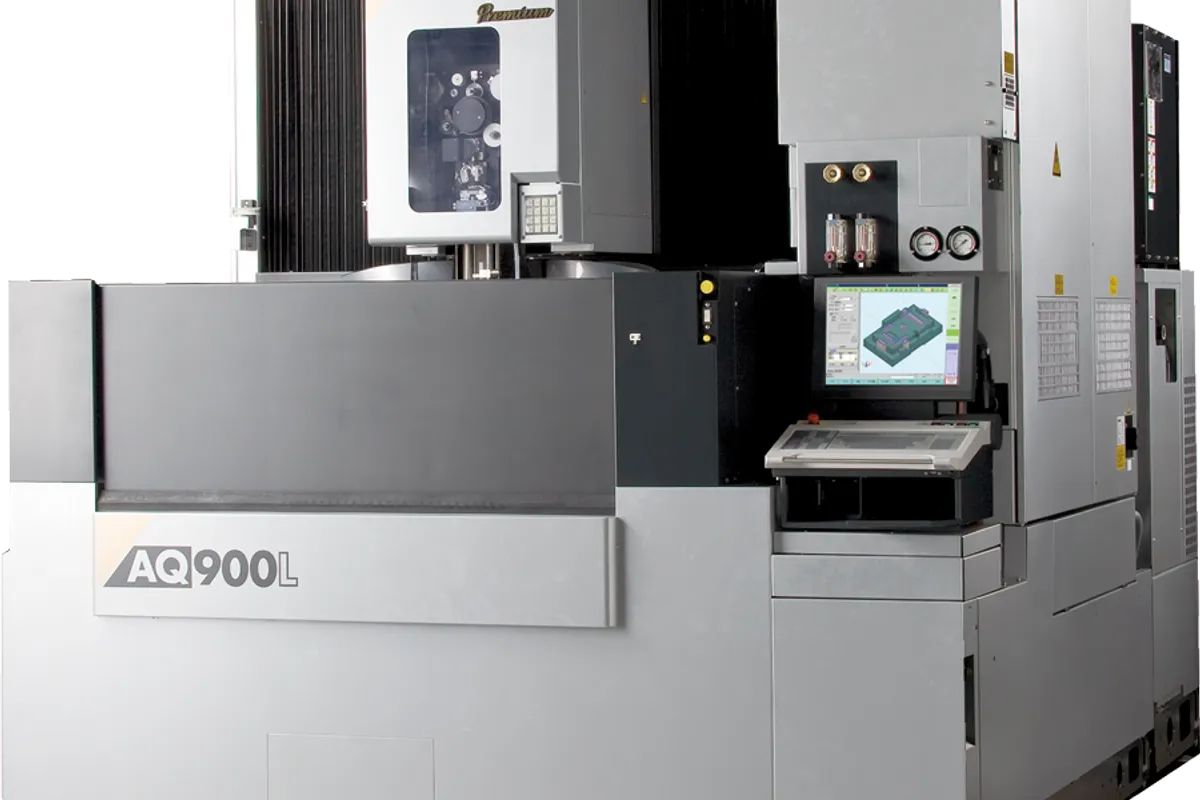

Sodick Sodick AQ900L

$300,000 - $420,000 Updated 2026-03-19

Key Specifications

X Travel

900 mm (35.4 in)

Y Travel

600 mm (23.6 in)

Z Travel

400 mm (15.7 in)

uv travel

920 x 620 mm

work tank inner

1,374 x 1,133 mm (54.1 x 44.6 in)

max workpiece dimensions

1,200 x 900 x 400 mm (47.2 x 35.4 x 15.7 in)

Overview

The Sodick AQ900L is a large-format wire EDM designed for progressive die builders, large mold shops, and aerospace manufacturers whose workpieces regularly exceed the capacity of mid-size wire EDMs. With 900 x 600 x 400 mm X/Y/Z travel and a maximum workpiece weight of 2,000 kg, the AQ900L handles die plates, mold bases, and structural aerospace blanks that would require multiple setups on smaller machines. The work tank inner dimensions of 1,374 x 1,133 mm accommodate workpieces up to 1,200 x 900 x 400 mm during flushing machining.

Sodick’s direct-drive linear motor architecture powers all positioning axes on the AQ900L. The elimination of ball screws removes the thermal growth, backlash, and progressive wear that limit achievable accuracy on large-format machines where screw length amplifies these effects. The LP power supply with Intelligent Q3vic EDW technology manages spark energy delivery with real-time adaptive control, maintaining consistent cut quality across the full 400 mm Z-axis height where flushing gradients create the greatest challenge for conventional generators.

The AQ900L supports wire diameters from 0.15 to 0.33 mm, covering both production roughing with heavy brass wire and precision skim cuts with finer diameters. Maximum taper capability of ±30° at 150 mm plate thickness provides generous angular range for die and mold applications. The Super Jet AWT system delivers ultra-high-speed threading with in-cut re-threading capability, essential for lights-out operation on large, time-consuming jobs.

At 8,000 kg machine weight and a 2,380 x 3,150 mm footprint (3,500 x 4,200 mm installation space), the AQ900L requires substantial facility infrastructure including three-phase 50/60 Hz 15 kVA power, reinforced flooring, and a dedicated dielectric chiller circuit.

Full Specifications

Parameter	Value
X-Axis Travel	900 mm (35.4 in)
Y-Axis Travel	600 mm (23.6 in)
Z-Axis Travel	400 mm (15.7 in)
Uv Travel	920 x 620 mm
Work Tank Inner	1,374 x 1,133 mm (54.1 x 44.6 in)
Max Workpiece Dimensions	1,200 x 900 x 400 mm (47.2 x 35.4 x 15.7 in)
Max Workpiece Weight	2,000 kg (4,409 lb)
Max Taper Angle	±30°(plate thickness：150mm)
Wire Diameter Range	0.15 - 0.33 mm
Wire Tension	3 ～ 23
Max Wire Feed Rate	420 mm/sec
Drive System	Direct-drive linear motors (all axes)
Generator	LP power supply with Intelligent Q3vic EDW
CNC Control	Sodick LQ controller
Awt	Super Jet AWT with in-cut re-threading
Machine Dimensions	2,380 x 3,150 x 2,395 mm (93.7 x 124 x 94.3 in)
Installation Footprint	3,500 x 4,200 mm (137.8 x 165.4 in)
Machine Weight	8,000 kg (17,637 lb)
Table Height	1,050 mm (41.3 in)
Power Supply	3-phase 50/60 Hz 15 kVA
Work Tank Inner Dimensions W X D	1374 x 1133
Axis Stroke Xyz	900 x 600 x 400
U X V Axis Travel	920 x 620
Max Workpiece Dimensionsduring Flushing Machiningw X D X H	1200 x 900 x 400
Max Weight Of Workpieceduring Flushing Machiningkg	2000
Wire Electrode Diameter	0.15 ～ 0.33*1
Maximum Wire Feed Rate	420
Distance From Floor Surface To Upper Surface Of Table	1050
Machine Tool Dimensions W X D X H	2380 x 3150 x 2395*2
Machine Installation Dimensions W X D	3500 x 4200
Total Unit Weightkg	8000*3
Total Power Input	3-phase 50/60Hz 15 kVA

Specifications sourced from sodick.co.jp — verified 2026-03-28

Strengths & Limitations

Strengths

900 x 600 mm travel handles large progressive die plates and oversized mold bases exceeding mid-size wire EDM capacity
2,000 kg workpiece capacity allows direct loading of heavy die blocks without weight-reduction pre-machining
Direct-drive linear motors on all axes maintain positioning accuracy across the full 900 mm X travel
LP power supply with Q3vic EDW provides adaptive spark energy management through the full 400 mm workpiece height
±30° taper capability at 150 mm thickness covers demanding draft angle requirements
Super Jet AWT with in-cut re-threading supports extended lights-out operation

Limitations

At 8,000 kg and 3,500 x 4,200 mm installation footprint, demands significant facility space and reinforced flooring
15 kVA three-phase power and dedicated chiller circuit add infrastructure cost
Z-axis limited to 400 mm; shops needing taller capacity must look at the AQ1500L
Price range requires consistent large-workpiece throughput to justify over smaller AQ models

Best For

Progressive die manufacturers producing large automotive stamping dies exceeding 700-900 mm Plastic injection mold shops building large automotive bumper and structural mold bases Aerospace suppliers cutting large titanium, Inconel, and hardened steel structural blanks Die casting die shops where large die blocks exceed mid-size wire EDM capacity Production EDM cells running large parts in quantity with heavy fixturing

Frequently Asked Questions

01 How does the AQ900L compare to the AQ750L?

The AQ900L provides 900 x 600 mm X/Y travel versus 750 x 500 mm on the AQ750L. The larger work tank (1,374 x 1,133 mm) accommodates workpieces up to 1,200 x 900 mm. Both share linear motor drives and LP power supply.

02 What wire types are recommended?

For most production die work, 0.25 mm coated brass wire provides the best balance of speed, finish, and break resistance. For fine-detail finishing, 0.20 mm plain brass wire offers better corner accuracy.

03 What facility requirements does it need?

Three-phase 15 kVA power, reinforced flooring for 8,000 kg machine plus 2,000 kg workpiece, 3,500 x 4,200 mm installation space, overhead crane access, dedicated chiller, and compressed air.

04 Can the AQ900L cut stacked parts?

Yes. The 400 mm Z-axis and 2,000 kg capacity support substantial stacks. The LP power supply adaptive control compensates for flushing variations between stacked parts.
