CHMER GLX432

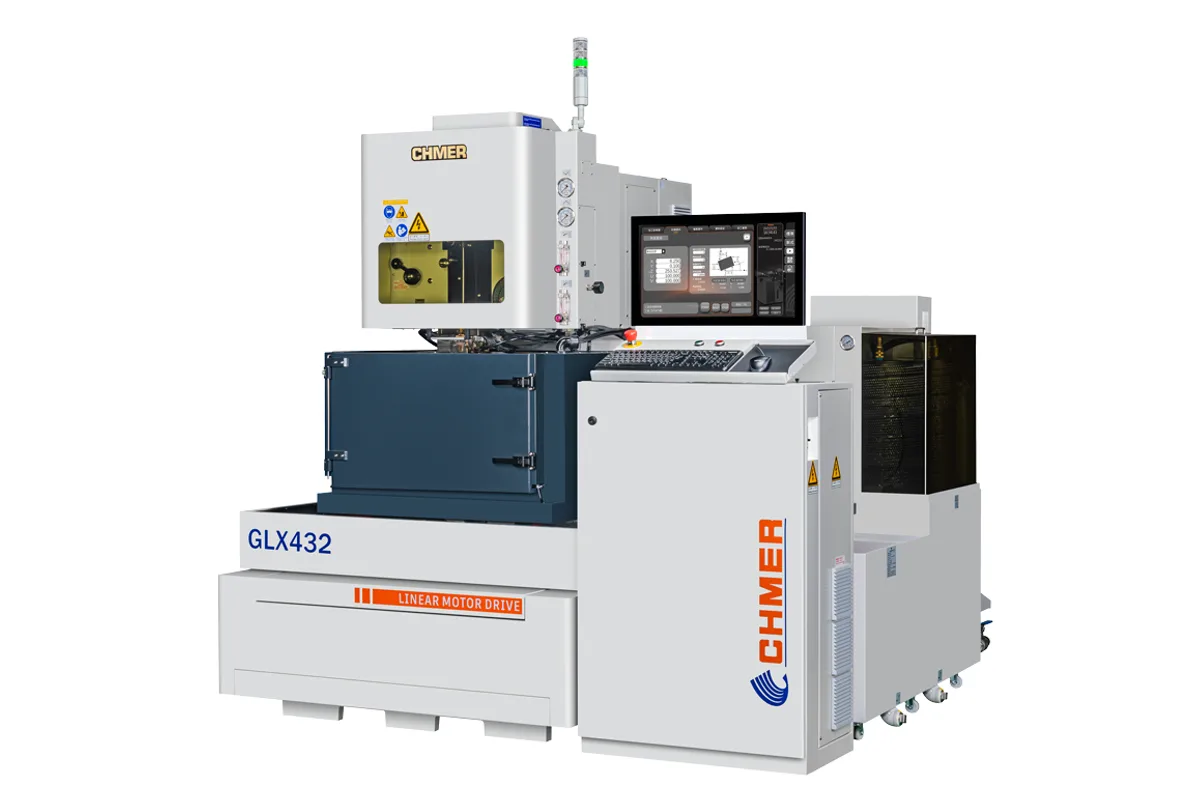

Image: dlf9q0zq4dwf6.cloudfront.net, CHMER
Key Specifications
x axis travel
y axis travel
z axis travel
uv axis travel
max workpiece size
max workpiece weight
How much does the CHMER GLX432 cost?
Price estimate
We do not have a price for the CHMER GLX432 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The CHMER GLX432 is a 400 x 300 x 250 mm (15.7 x 11.8 x 9.8 in) wire EDM with linear motor X and Y axes, and its catalogue is specific about what changed in this generation: U and V travel has been increased from 60 mm to 100 mm. With that comes a taper rating of ± 21°/110 using the wide angle nozzle.
The wider U and V axes matter more than the number suggests. On a machine of this travel, 100 x 100 mm (3.9 x 3.9 in) is what allows a full-angle taper to be held through a tall section, the kind of work CHMER refers to when it speaks of flexibility for complex workpieces.
Several features are about keeping the machine running without attention. The 6th Gen AWT threads under water and after a wire break. The water shield cleans itself with a continuous flush, which CHMER says keeps friction down and positioning accurate. A visual flow meter gives separate control of water pressure and flow rate. The operator works at a 24-inch monitor with a standard keyboard and mouse.
In figures: 450 kg (992 lb) maximum workpiece weight, 725 x 600 x 245 mm maximum workpiece size, 1,800 mm/min (70.9 ipm) feed, 650 L (172 gal) of dielectric and 8 kVA maximum power consumption. Machine dimensions are 2,300 x 2,350 x 2,350 mm and net weight is 3,000 kg (6,614 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 400 mm (15.7 in) |
| Y Axis Travel | 300 mm (11.8 in) |
| Z Axis Travel | 250 mm (9.8 in) |
| Uv Axis Travel | 100 x 100 mm (3.9 x 3.9 in) |
| Max Workpiece Size | 725 x 600 x 245 mm (28.5 x 23.6 x 9.6 in) |
| Max Workpiece Weight | 450 kg (992 lb) |
| Xy Feed Rate | 1,800 mm/min (70.9 ipm) |
| Axis Drive System | XY Axes Linear Motor Drive/ UVZ Axes AC Servo Motor Drive |
| Wire Diameter | 0.15-0.3 mm (0.006-0.012 in); standard 0.25 mm (0.010 in) |
| Wire Tension | 300-2,500 gf |
| Wire Feed Rate Max | 300 mm/sec (11.8 in/sec) |
| Wire Feeder Load Capacity | ≤ 8 kg (18 lb) |
| Taper Angle | ± 21°/110 (Wide Angle Nozzle, DA+DB=15) |
| Machine Dimensions | 2,300 x 2,350 x 2,350 mm (90.6 x 92.5 x 92.5 in) (W x D x H) |
| Machine Weight | 3,000 kg (6,614 lb) |
| Dielectric Capacity | 650 L (172 gal) |
| Filter | Paper |
| Ion Exchange Resin Filter | 14 L (3.7 gal) |
| Water Quality Control | Auto |
| Water Temperature Control | Auto |
| Power Supply Circuit | Transistor, No Resistance Loop |
| Discharge Mode | Rough Machining / Fine Machining / AC-μ Super Fine Finish |
| Max Power Consumption | 8 kVA |
Specifications sourced from dlf9q0zq4dwf6.cloudfront.net — verified 2026-10-05
Strengths & Limitations
Strengths
- U and V travel of 100 x 100 mm (3.9 x 3.9 in), increased from 60 mm according to CHMER
- ± 21°/110 taper rating on a 400 x 300 mm travel machine
- 6th Gen AWT with wire break and underwater threading
- Automatic water shield cleaning mechanism and a visual flow meter
- Compact: 2,300 x 2,350 x 2,350 mm (90.6 x 92.5 x 92.5 in), 3,000 kg (6,614 lb)
Limitations
- Workpiece weight limited to 450 kg (992 lb)
- Dielectric capacity of 650 L (172 gal), about half that of the NV432L
- Wire feeder capacity of 8 kg at most
- 20 discharge voltage levels are optional; 16 are standard
Best For
Frequently Asked Questions
01
CHMER states the U/V travel has been increased from 60 mm to 100 mm for the GLX432. The table lists U, V axis travel as 100 x 100 mm (3.9 x 3.9 in) and the maximum taper angle as ± 21°/110 with the wide angle nozzle.
02
X, Y, Z axis travel is 400 x 300 x 250 mm (15.7 x 11.8 x 9.8 in). Maximum workpiece size is 725 x 600 x 245 mm (28.5 x 23.6 x 9.6 in) and maximum workpiece weight 450 kg (992 lb).
03
XY axes by linear motor, UVZ axes by AC servo motor. The X/Y feed rate is 1,800 mm/min (70.9 ipm). The structure is described as optimised by FEA, with a reinforced base and slide.
04
A 650 L (172 gal) dielectric capacity, a paper filter, a 14 L ion exchange resin filter, and automatic water quality and water temperature control. The power supply unit is a transistor type with no resistance loop.
