CHMER AW3L

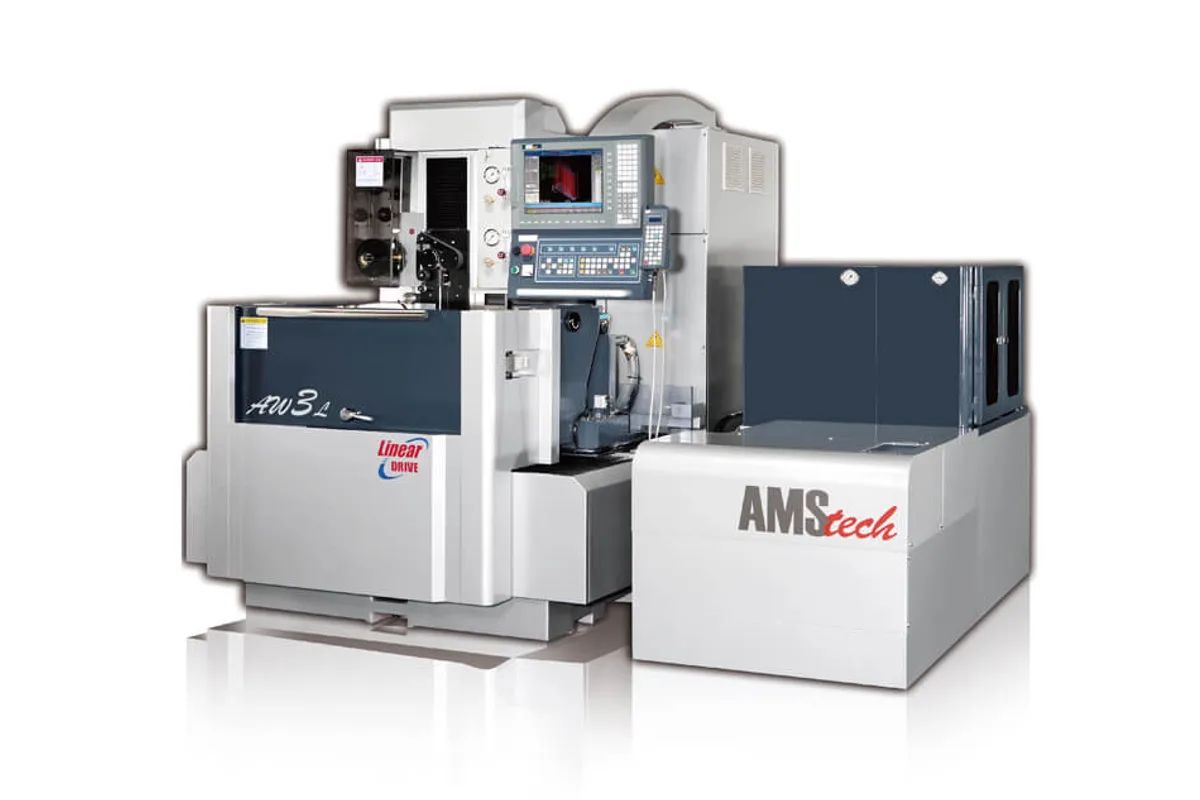

Image: chmer.com, CHMER
Key Specifications
x axis travel
y axis travel
z axis travel
uv axis travel
max workpiece size
max workpiece weight
How much does the CHMER AW3L cost?
Price estimate
We do not have a price for the CHMER AW3L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The CHMER AW3L is the fine-wire entry of the AMStech AW series of linear motor wire EDMs. Travels are 370 x 270 mm (14.6 x 10.6 in) in X and Y and 260 mm (10.2 in) in Z, and the table column is headed AW3L (Drop door).
Two rows separate it from the other AW machines. The wire range starts at 0.1 mm (0.004 in), with 0.2 mm (0.008 in) as the standard size, and wire tension goes down to 200 gf. Thin wire at low tension is what small inside radii and narrow slots call for, so this is the AW model for connector, lead-frame and micro-die work. The AW5L runs the same 0.1 mm minimum but is set up around 0.25 mm wire.
X and Y are linear motor axes with a maximum feed rate of 1,500 mm/min (59.1 ipm). Despite the short travels, the taper rating is generous: ± 21° / 110 mm on 100 x 100 mm (3.9 x 3.9 in) of U and V travel. Workpieces up to 750 x 550 x 260 mm and 500 kg (1,102 lb) are accepted.
For a machine with this envelope it is heavy. CHMER lists the weight as 4,600 kg + 280 kg, on a footprint of 2,350 x 2,640 mm (92.5 x 103.9 in), with 700 L (185 gal) of water capacity. No accessory list is published on the model page.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 370 mm (14.6 in) |
| Y Axis Travel | 270 mm (10.6 in) |
| Z Axis Travel | 260 mm (10.2 in) |
| Uv Axis Travel | 100 x 100 mm (3.9 x 3.9 in) |
| Max Workpiece Size | 750 x 550 x 260 mm (29.5 x 21.7 x 10.2 in) (W x D x H) |
| Max Workpiece Weight | 500 kg (1,102 lb) |
| Xy Feed Rate | Max. 1,500 mm/min (59.1 ipm) |
| Axis Drive System | XY Linear Motor |
| Wire Diameter | 0.1-0.3 mm (0.004-0.012 in); standard 0.2 mm (0.008 in) |
| Wire Feed Rate Max | 300 mm/sec (11.8 in/sec) |
| Wire Tension | 200-2,500 gf |
| Taper Angle | ± 21° / 110 mm (width, DA + DB = 15 mm) |
| Machine Dimensions | 2,350 x 2,640 x 2,050 mm (92.5 x 103.9 x 80.7 in) (W x D x H) |
| Machine Weight | 4,600 kg + 280 kg (10,141 lb + 617 lb) |
| Water Capacity | 700 L (185 gal) |
Specifications sourced from chmer.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Wire range from 0.1 mm (0.004 in), with 0.2 mm (0.008 in) as the standard size
- Wire tension adjustable from 200 gf to 2,500 gf
- X and Y linear motor axes, feed up to 1,500 mm/min (59.1 ipm)
- ± 21° / 110 mm taper rating on 100 x 100 mm (3.9 x 3.9 in) of U and V travel
- Heavy build for its travel: 4,600 kg + 280 kg as listed
Limitations
- Smallest travels in the AW series: 370 x 270 mm (14.6 x 10.6 in)
- Workpiece weight limited to 500 kg (1,102 lb)
- Standard and optional accessories are not listed on the model page
Best For
Frequently Asked Questions
01
The wire diameter range is 0.1-0.3 mm (0.004-0.012 in) and the standard size is 0.2 mm (0.008 in). Wire tension is 200-2,500 gf and the maximum wire feed rate is 300 mm/sec (11.8 in/sec).
02
X 370 mm (14.6 in), Y 270 mm (10.6 in), Z 260 mm (10.2 in), with U and V travel of 100 x 100 mm (3.9 x 3.9 in). The maximum workpiece is 750 x 550 x 260 mm (29.5 x 21.7 x 10.2 in) and 500 kg (1,102 lb).
03
04
