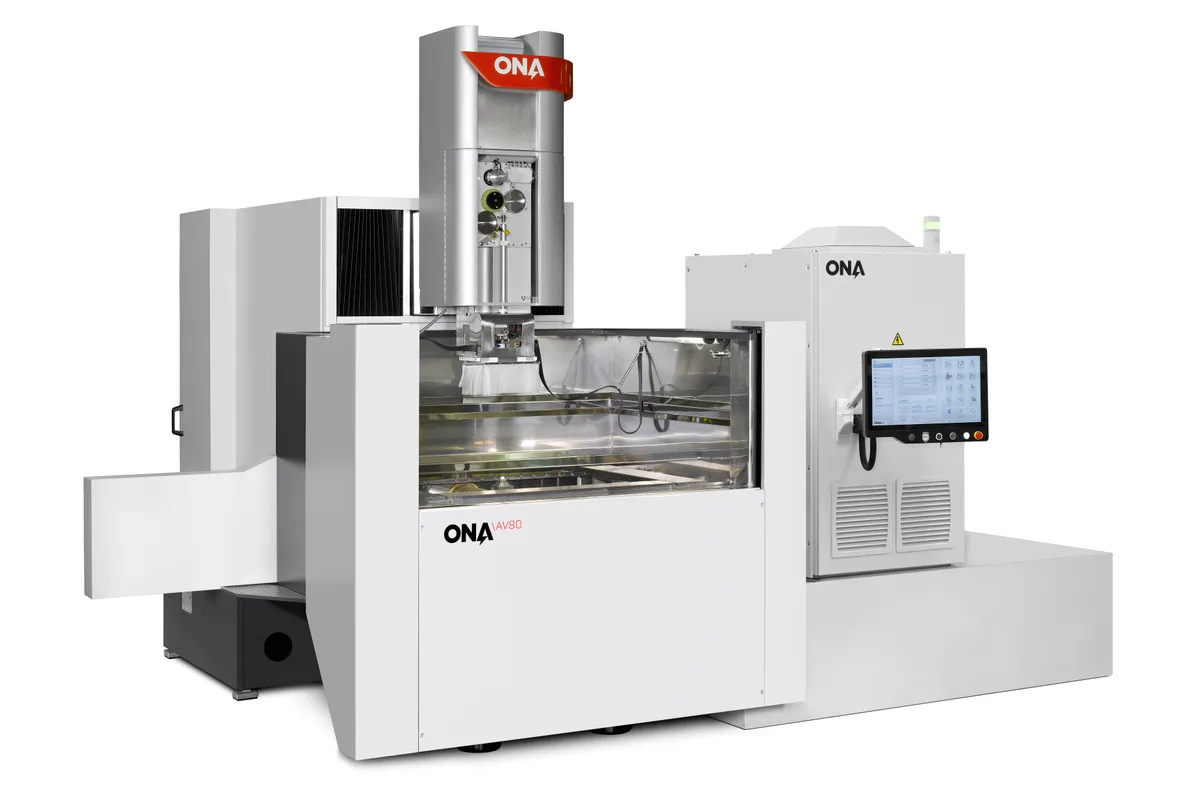

ONA AV80
Key Specifications
X Travel
Y Travel
Z Travel
max workpiece length
max workpiece width
max workpiece height
How much does the ONA AV80 cost?
Estimated price range
Our best estimate for a wire edm in this class — not a quote from ONA Electroerosion. Configuration moves it a long way.
Overview
The ONA AV80 is a large-format wire EDM built around 1000 mm (39.4 in) of X travel and a table rated for 5000 kg (11000 lbs). ONA lists it with a choice of Y travel, 600, 800 or 1000 mm (23.6, 31.5 or 39.4 in), and a choice of Z travel, 500, 600, 700 or 800 mm (19.7, 23.6, 27.5 or 31.5 in). The same X axis can therefore be ordered as a fairly narrow machine or as a square 1000 x 1000 mm one, short or tall.
Workpiece limits are given as single figures: 1500 mm long, 1040 mm (41 in) wide and 500 mm (19.7 in) high. The length is greater than the X travel, so a long plate can sit on the table with only part of it reachable in one setup. The 500 mm height matches the shortest Z option. ONA's table gives no separate workpiece limits for the taller Z versions or the wider Y versions, so ask for the limits of the exact configuration being quoted.
U and V travel is 500 x 500 mm (19.7 x 19.7 in). That long upper-guide stroke is what carries the standard taper of +/- 30° over a height of 400 mm (15.8 in), and a ±45° taper is listed as an option. Few jobs need both a steep angle and a tall section, but extrusion dies and large tapered inserts do, and this is the row to check for them.
Wire is 0.20 or 0.30 mm (0.008 – 0.012 in). No finer wire appears in the table, so inside corner radii are bounded by the 0.20 mm wire. Maximum cutting speed is 360 mm²/min with Ø 0.30 mm Xcc wire (34 in²/h); it is a figure for that wire only.
The AV60 is the smaller machine of the pair, with 800 mm (31.5 in) of X and a single 600 mm (23.6 in) Y. Both share the Z options and the 5000 kg (11000 lbs) table load, so the choice between them is about plate size, not weight.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1000 mm (39.4 in) |
| Y-Axis Travel | 600 / 800 / 1000 mm (23.6 / 31.5 / 39.4 in) |
| Z-Axis Travel | 500 / 600 / 700 / 800 mm (19.7 / 23.6 / 27.5 / 31.5 in) |
| Max Workpiece Length | 1500 mm |
| Max Workpiece Width | 1040 mm (41 in) |
| Max Workpiece Height | 500 mm (19.7 in) |
| Max Table Load | 5000 kg (11000 lbs) |
| Uv Travel | 500 x 500 mm (19.7 x 19.7 in) |
| Max Taper Angle | +/- 30° / 400 mm (+/- 30° / 15.8 in), optionally ±45° |
| Wire Diameter Range | 0.20 / 0.30 mm (0.008 – 0.012 in) |
| Max Cutting Speed | 360 mm²/min – Ø 0.30 mm, Xcc wire (34 in²/h – 0.012 in, Xcc wire) |
Specifications sourced from onaedm.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 1000 mm (39.4 in) of X travel, with Y offered at 600, 800 or 1000 mm (23.6, 31.5 or 39.4 in)
- Table load of 5000 kg (11000 lbs), enough for large die blocks and mould plates with their fixturing
- Z travel can be ordered at 500, 600, 700 or 800 mm (19.7, 23.6, 27.5 or 31.5 in)
- 500 x 500 mm (19.7 x 19.7 in) of U/V travel supports a +/- 30° taper over 400 mm (15.8 in)
- Cutting speed up to 360 mm²/min with Ø 0.30 mm Xcc wire (34 in²/h)
Limitations
- Wire diameters are listed as 0.20 and 0.30 mm (0.008 – 0.012 in) only; the table shows nothing finer for small radii
- The ±45° taper is an option, not part of the standard +/- 30° over 400 mm (15.8 in)
- Workpiece height is listed as 500 mm (19.7 in) although Z is offered up to 800 mm (31.5 in); confirm the limit for the taller versions
- The 360 mm²/min speed applies to Ø 0.30 mm Xcc wire; no speed is given for 0.20 mm wire
Best For
Frequently Asked Questions
01
X travel is fixed at 1000 mm (39.4 in). Y travel is a choice of 600, 800 or 1000 mm (23.6, 31.5 or 39.4 in), and Z travel a choice of 500, 600, 700 or 800 mm (19.7, 23.6, 27.5 or 31.5 in). U and V travel is 500 x 500 mm (19.7 x 19.7 in).
02
ONA lists a maximum workpiece of 1500 mm in length, 1040 mm (41 in) in width and 500 mm (19.7 in) in height, on a table rated for 5000 kg (11000 lbs). The height figure matches the 500 mm Z option, so confirm the workpiece limits that apply if a taller Z or a wider Y version is ordered.
03
The standard figure is +/- 30° over a height of 400 mm (15.8 in), made possible by 500 x 500 mm (19.7 x 19.7 in) of U and V travel. A ±45° taper is listed as an option, so it has to be specified on the order.
04
The AV60 has 800 mm (31.5 in) of X travel and 600 mm (23.6 in) of Y. The AV80 has 1000 mm (39.4 in) of X and can take Y of 600, 800 or 1000 mm. Both are listed with the same Z choices of 500, 600, 700 or 800 mm and the same 5000 kg (11000 lbs) table load.
05
The table lists wire of 0.20 and 0.30 mm (0.008 – 0.012 in). Maximum cutting speed is 360 mm²/min (34 in²/h), stated for Ø 0.30 mm Xcc wire. No cutting speed is given for the thinner wire.
