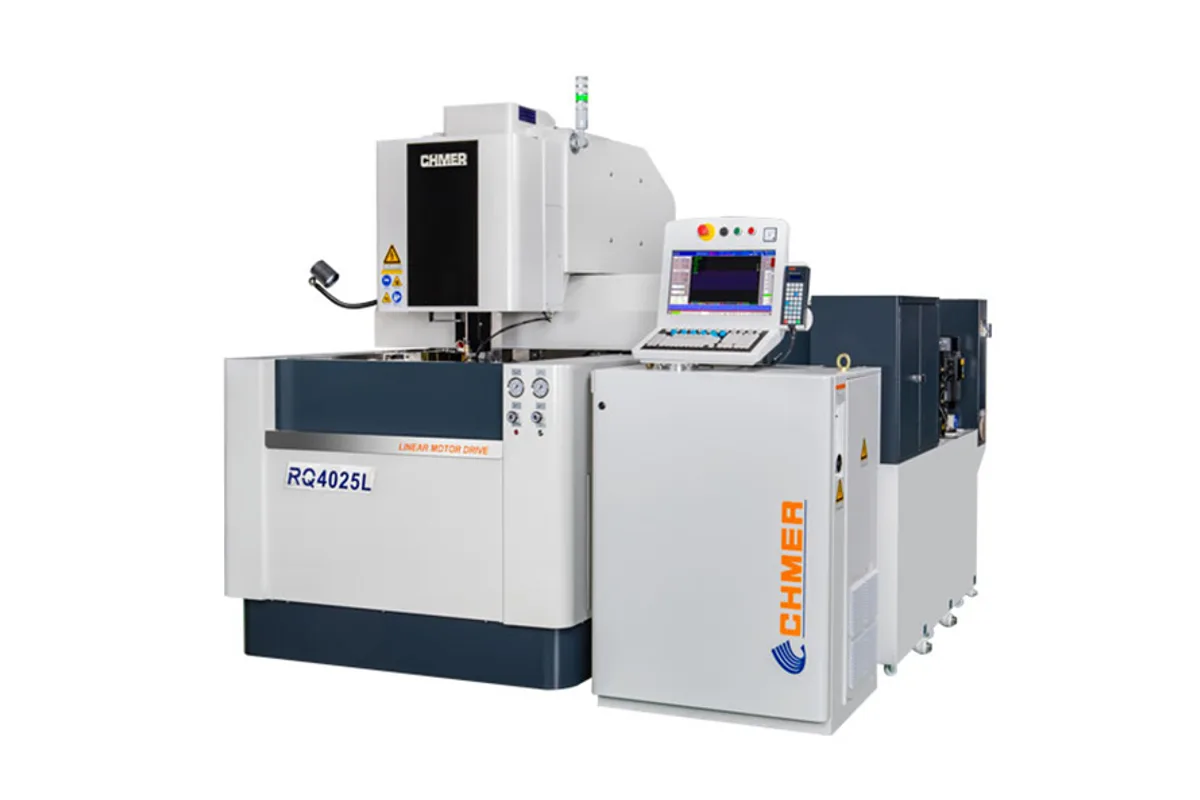

CHMER RQ4025L
Image: chmer.com, CHMER
Key Specifications
x axis travel
y axis travel
z axis travel
uv axis travel
max workpiece size
max workpiece weight
How much does the CHMER RQ4025L cost?
Price estimate
We do not have a price for the CHMER RQ4025L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Between the two smallest RQ machines the only change in travel is X: the CHMER RQ4025L wire EDM has 400 mm (15.7 in) where the RQ3625L has 360 mm (14.2 in). Y stays at 250 mm (9.8 in) and Z at 200 mm (7.9 in). The outside dimensions are identical too, 2,400 x 2,500 x 2,250 mm (94.5 x 98.4 x 88.6 in), so the longer X costs no floor space.
What does change is capacity. The RQ4025L is rated for a 550 kg (1,213 lb) workpiece and the size row grows in width to 750 x 450 x 200 mm / 750 x 450 x 145 mm. Machine weight rises only slightly, to 2,800 kg (6,173 lb). For long, narrow work such as strip-die sections, this is the better fit of the two.
As on every RQ model, the X and Y axes are driven by linear motors and U, V and Z by AC servo motors. Feed rate reaches 1,800 mm/min (70.9 ipm). CHMER describes the series as a rigid gantry structure combined with UX1 linear motors, AWT and the i8+ power supply. The taper rating is ±14.5°/80 and U and V travel is 60 x 60 mm (2.4 x 2.4 in).
Wire from 0.15 to 0.3 mm is supported, 0.25 mm being standard, with feed up to 300 mm/sec. CHMER states tank capacity as 930 kg.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 400 mm (15.7 in) |
| Y Axis Travel | 250 mm (9.8 in) |
| Z Axis Travel | 200 mm (7.9 in) |
| Uv Axis Travel | 60 x 60 mm (2.4 x 2.4 in) |
| Max Workpiece Size | 750 x 450 x 200 mm / 750 x 450 x 145 mm (29.5 x 17.7 x 7.9 in / 29.5 x 17.7 x 5.7 in) |
| Max Workpiece Weight | 550 kg (1,213 lb) |
| Xy Feed Rate | Max. 1,800 mm/min (70.9 ipm) |
| Axis Drive System | XY-Linear Motor / UVZ-AC Servo Motor |
| Wire Diameter | 0.15-0.3 mm (0.006-0.012 in); standard 0.25 mm (0.010 in) |
| Wire Feed Rate Max | 300 mm/sec (11.8 in/sec) |
| Wire Tension | 300-2,500 gf |
| Taper Angle | ±14.5°/80 (wide-angled nozzle, DA+DB=15mm) |
| Machine Dimensions | 2,400 x 2,500 x 2,250 mm (94.5 x 98.4 x 88.6 in) (W x D x H) |
| Machine Weight | 2,800 kg (6,173 lb) |
| Tank Capacity | 930 kg (2,050 lb) |
Specifications sourced from chmer.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 400 mm (15.7 in) of X travel in the same 2,400 x 2,500 mm footprint as the RQ3625L
- 550 kg (1,213 lb) maximum workpiece weight
- X and Y linear motors with feed up to 1,800 mm/min (70.9 ipm)
- Rigid gantry structure with the i8+ power supply, as CHMER describes the series
Limitations
- Y travel is only 250 mm (9.8 in), so wide plates need the RQ5030L or RQ6040L
- Z travel of 200 mm (7.9 in) and a ±14.5°/80 taper rating
- Standard accessory list names one water chiller; no option list is published on the page
Best For
Frequently Asked Questions
01
X travel is 400 mm (15.7 in) against 360 mm (14.2 in) on the RQ3625L, and the workpiece rating is 550 kg (1,213 lb) against 450 kg (992 lb). Y travel, Z travel, the taper rating and the outside dimensions of 2,400 x 2,500 x 2,250 mm are the same on both.
02
X 400 mm (15.7 in), Y 250 mm (9.8 in) and Z 200 mm (7.9 in). The U and V axes travel 60 x 60 mm (2.4 x 2.4 in), which gives a taper rating of ±14.5°/80 with the wide-angled nozzle.
03
Linear motors on X and Y, AC servo motors on U, V and Z. CHMER names the linear motors UX1 and says they are made in-house. The X Y feed rate is a maximum of 1,800 mm/min (70.9 ipm).
04
The standard accessory list names paper filters, a TFT, flushing nozzles, 0.26MM diamond guides, energizing carbides, a diamond guide remove jig, brass wire, a water chiller, AC/DC power, an OV circuit and ion exchange resins. CHMER's series description also mentions AWT.
