CHMER NV432L

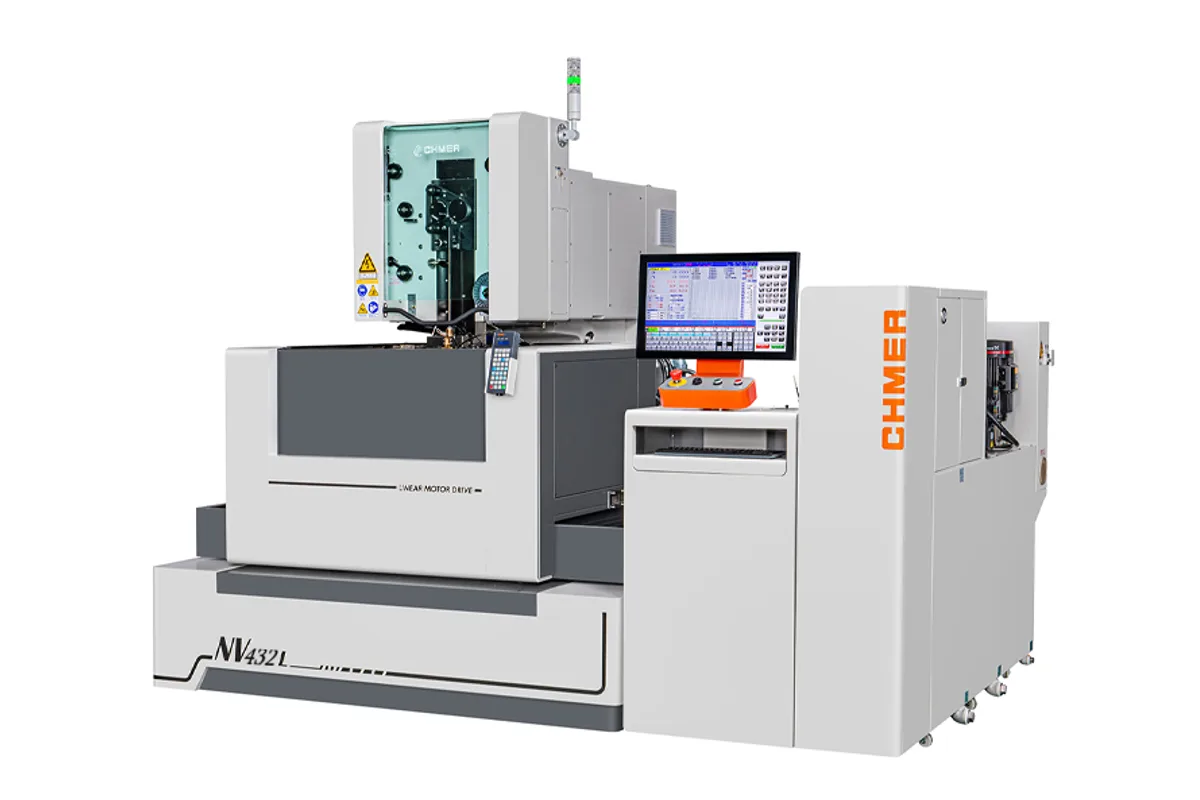

Image: dlf9q0zq4dwf6.cloudfront.net, CHMER
Key Specifications
x axis travel
y axis travel
z axis travel
uv axis travel
max workpiece size
max workpiece weight
How much does the CHMER NV432L cost?
Price estimate
We do not have a price for the CHMER NV432L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The CHMER NV432L is a submerged wire EDM with 400 x 300 x 250 mm (15.7 x 11.8 x 9.8 in) travels, UX1 linear motors on X and Y, and CHMER's N-Type Controller running GenOS (LINUX) behind a 24" color touch screen. It is the smaller of the two NV models.
Automation is where CHMER puts the emphasis. The NV series carries the 6th Gen AWT system, which the maker says shortens wire threading and cutting time by over 20% and reduces overall power consumption by 48%. Threading can resume at the break point after an interruption instead of returning to the start, and the tank door rises and falls automatically at a button press or from a program. Up to 3999 hole machining records can be stored for multi-hole work.
The table is unusually complete for a CHMER machine. Dielectric capacity is 1,250 L (330 gal) with paper filtration, a 20 L ion exchange resin filter and automatic control of water quality and temperature. The wire feeder takes spools of up to 8 kg. Power input is 3 Phase 220V ± 5% with a maximum of 8 kVA.
Workpieces up to 725 x 600 x 245 mm and 500 kg (1,102 lb) can be cut submerged. Taper is rated ± 21°/110 on 100 x 100 mm (3.9 x 3.9 in) U and V axes. The machine weighs 3,200 kg (7,055 lb) and measures 2,720 x 2,300 x 2,350 mm. An extended Z-axis travel is offered as an option.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 400 mm (15.7 in) |
| Y Axis Travel | 300 mm (11.8 in) |
| Z Axis Travel | 250 mm (9.8 in) |
| Uv Axis Travel | 100 x 100 mm (3.9 x 3.9 in) |
| Max Workpiece Size | 725 x 600 x 245 mm (28.5 x 23.6 x 9.6 in) (Submerged) |
| Max Workpiece Weight | 500 kg (1,102 lb) |
| Xy Feed Rate | 1,800 mm/min (70.9 ipm) |
| Axis Drive System | XY Axes Linear Motor Drive/ UVZ Axes AC Servo Motor Drive |
| Wire Diameter | 0.15-0.3 mm (0.006-0.012 in); standard 0.25 mm (0.010 in) |
| Wire Tension | 300-2,500 gf |
| Wire Feed Rate Max | 300 mm/sec (11.8 in/sec) |
| Wire Feeder Load Capacity | ≤ 8 kg (18 lb) |
| Taper Angle | ± 21°/110 (Wide Angle Nozzle, DA+DB=15 mm) |
| Machine Dimensions | 2,720 x 2,300 x 2,350 mm (107.1 x 90.6 x 92.5 in) (W x D x H) |
| Machine Weight | 3,200 kg (7,055 lb) |
| Dielectric Capacity | 1,250 L (330 gal) |
| Filter | Paper |
| Ion Exchange Resin Filter | 20 L (5.3 gal) |
| Water Quality Control | Auto |
| Water Temperature Control | Auto |
| Power Supply Circuit | Transistor, No Resistance Loop |
| Discharge Mode | Rough Machining / Fine Machining / AC-μ Super Fine Finish |
| Max Power Consumption | 8 kVA |
| CNC Control | N-Type Controller, GenOS (LINUX) |
| Display | 24" Color Touch Screen |
| Controlled Axes | 5 / 7 Axes: X, Y, U, V, Z (Optional Rotary Axis) |
| Resolution Unit | 0.0001 mm |
| Power Requirement | 3 Phase 220V ± 5% |
Specifications sourced from dlf9q0zq4dwf6.cloudfront.net — verified 2026-10-05
Strengths & Limitations
Strengths
- 6th Gen AWT with break point re-threading; CHMER states threading and cutting time shortened by over 20%
- UX1 linear motor drive on X and Y, feed rate 1,800 mm/min (70.9 ipm)
- N-Type Controller on GenOS (LINUX) with a 24" color touch screen and 0.0001 mm resolution unit
- 1,250 L (330 gal) dielectric capacity with automatic water quality and temperature control
- ± 21°/110 taper rating on 100 x 100 mm (3.9 x 3.9 in) U and V axes
- Automatic rise-and-fall tank door
Limitations
- Z travel is 250 mm (9.8 in) unless the optional extended Z-axis travel is ordered
- Wire feeder load capacity is 8 kg at most
- The rotary axis that makes up the 7-axis configuration is optional
- Workpiece limit of 500 kg (1,102 lb)
Best For
Frequently Asked Questions
01
CHMER's N-Type Controller with the GenOS (LINUX) operating system, a quad-core processor and a 24" color touch screen. Controlled axes are listed as 5 / 7 Axes: X, Y, U, V, Z (Optional Rotary Axis), and the resolution unit is 0.0001 mm.
02
That it shortens wire threading and cutting time by over 20%, extends consumable lifespan by more than 100% and reduces overall power consumption by 48%. CHMER also describes an almost 100% wire threading success rate and re-threading at the break point after an interruption.
03
X, Y and Z travel are 400 x 300 x 250 mm (15.7 x 11.8 x 9.8 in) and U, V travel is 100 x 100 mm. The maximum workpiece is 725 x 600 x 245 mm (28.5 x 23.6 x 9.6 in) submerged, at up to 500 kg (1,102 lb).
04
Power input is 3 Phase 220V ± 5% and maximum input power is 8 kVA. The dielectric system holds 1,250 L (330 gal). Machine dimensions are 2,720 x 2,300 x 2,350 mm (107.1 x 90.6 x 92.5 in) and net weight is 3,200 kg (7,055 lb).
