CHMER D322CL
Image: chmer.com, CHMER
Key Specifications
Table Size
work tank size
max workpiece size
x axis travel
y axis travel
z axis travel
How much does the CHMER D322CL cost?
Price estimate
We do not have a price for the CHMER D322CL that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

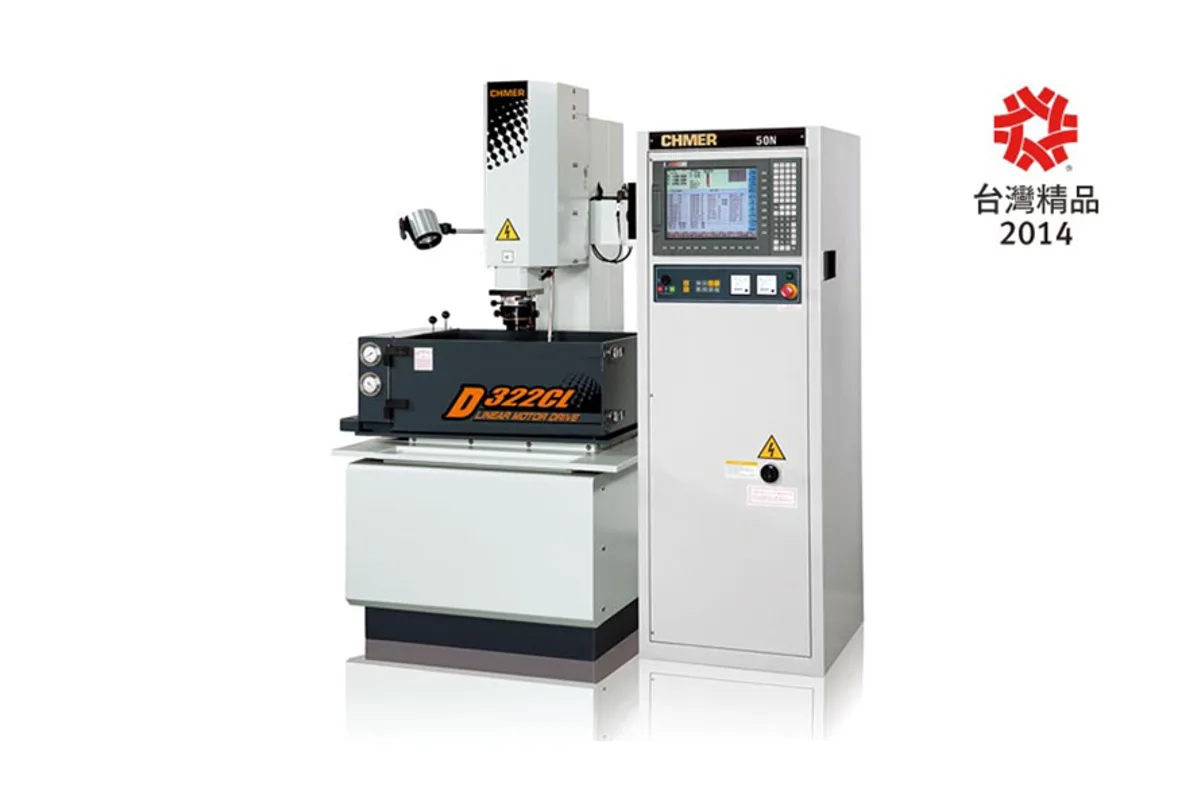

The CHMER D322CL is a small CNC sinker EDM whose Z axis is driven by a linear motor. X and Y, with 300 x 200 mm (11.8 x 7.9 in) of travel, use AC servo motors; the 250 mm (9.8 in) ram axis is the direct-drive one. CHMER's six points for the model begin with its in-house linear motor drive system and go on to high machining speed, high response and low friction of axis movement.
Why put the linear motor on Z? In die sinking the ram is the axis that works hardest. It jumps constantly to clear debris from the gap, and in deep, narrow ribs flushing depends almost entirely on how fast and how far it can jump. A direct drive with no screw responds faster to that duty.
The rest of the machine is sized for small, precise electrodes. Maximum electrode weight is 20 kg (44 lb), the workpiece limit is 300 kg (661 lb) and the work tank is 770 x 500 x 300 mm. A workpiece of 720 x 450 x 190 mm fits. CHMER also lists medium-low current impulse and a rapid energy circuit, and offers 50N and 75N generators at 50 A and 75 A.
The frame weighs 1,400 kg (3,086 lb) and occupies 1,040 x 1,470 mm (40.9 x 57.9 in), with the generator as a separate unit. Compressed air at 6 kgf/cm2 is required. Dielectric volume is 280 L (74 gal).
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 500 x 300 mm (19.7 x 11.8 in) (W x D) |
| Work Tank Size | 770 x 500 x 300 mm (30.3 x 19.7 x 11.8 in) (W x D x H) |
| Max Workpiece Size | 720 x 450 x 190 mm (28.3 x 17.7 x 7.5 in) (W x D x H) |
| X Axis Travel | 300 mm (11.8 in) |
| Y Axis Travel | 200 mm (7.9 in) |
| Z Axis Travel | 250 mm (9.8 in) |
| Axis Drive System | X,Y AXIS BY AC SERVO MOTOR,Z AXIS BY LINEAR MOTOR |
| Distance Ram Platen to Table | 250-500 mm (9.8-19.7 in) |
| Max Electrode Weight | 20 kg (44 lb) |
| Max Workpiece Weight | 300 kg (661 lb) |
| Machine Dimensions | 1,040 x 1,470 x 2,000 mm (40.9 x 57.9 x 78.7 in) (W x D x H) |
| Machine Weight | 1,400 kg (3,086 lb) |
| Air Pressure | 6 kgf/cm2 |
| Dielectric Tank Model | D434 |
| Generator Models | 50N / 75N |
| Max Machining Current | 50 A (50N) / 75 A (75N) |
| Max Power Input | 4 kVA (50N) / 5 kVA (75N) |
| Electrode Wear Rate | 0.2% |
| Best Surface Roughness | 0.25 μm Ra |
| Dielectric Volume | 280 L (74 gal) |
| Filter Method | Paper filter |
Specifications sourced from chmer.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Linear motor Z axis, built with CHMER's in-house linear motor drive system
- Small footprint: 1,040 x 1,470 x 2,000 mm (40.9 x 57.9 x 78.7 in)
- Best surface roughness of 0.25 μm Ra with 0.2% electrode wear
- 50N and 75N generator options
- Rapid energy circuit and medium-low current impulse, as CHMER lists them
Limitations
- Electrode weight limited to 20 kg (44 lb)
- X and Y travel of 300 x 200 mm (11.8 x 7.9 in)
- Workpiece height limited to 190 mm in the listed workpiece size
- Needs compressed air at 6 kgf/cm2
- No accessory list on the model page
Best For
Frequently Asked Questions
01
The Z axis. The drive row reads X,Y AXIS BY AC SERVO MOTOR, Z AXIS BY LINEAR MOTOR. CHMER lists an in-house linear motor drive system, high machining speed, high response and low friction of axis movement for the model.
02
Table travel is 300 x 200 mm (11.8 x 7.9 in) in X and Y and 250 mm (9.8 in) in Z. The work table is 500 x 300 mm, and the ram platen is 250-500 mm (9.8-19.7 in) above it.
03
04
A pneumatic supply of 6 kgf/cm2 and electrical power for the generator: 4 kVA maximum input for the 50N and 5 kVA for the 75N. The machine unit weighs 1,400 kg (3,086 lb) and the dielectric volume is 280 L (74 gal).
