CHMER A6040L

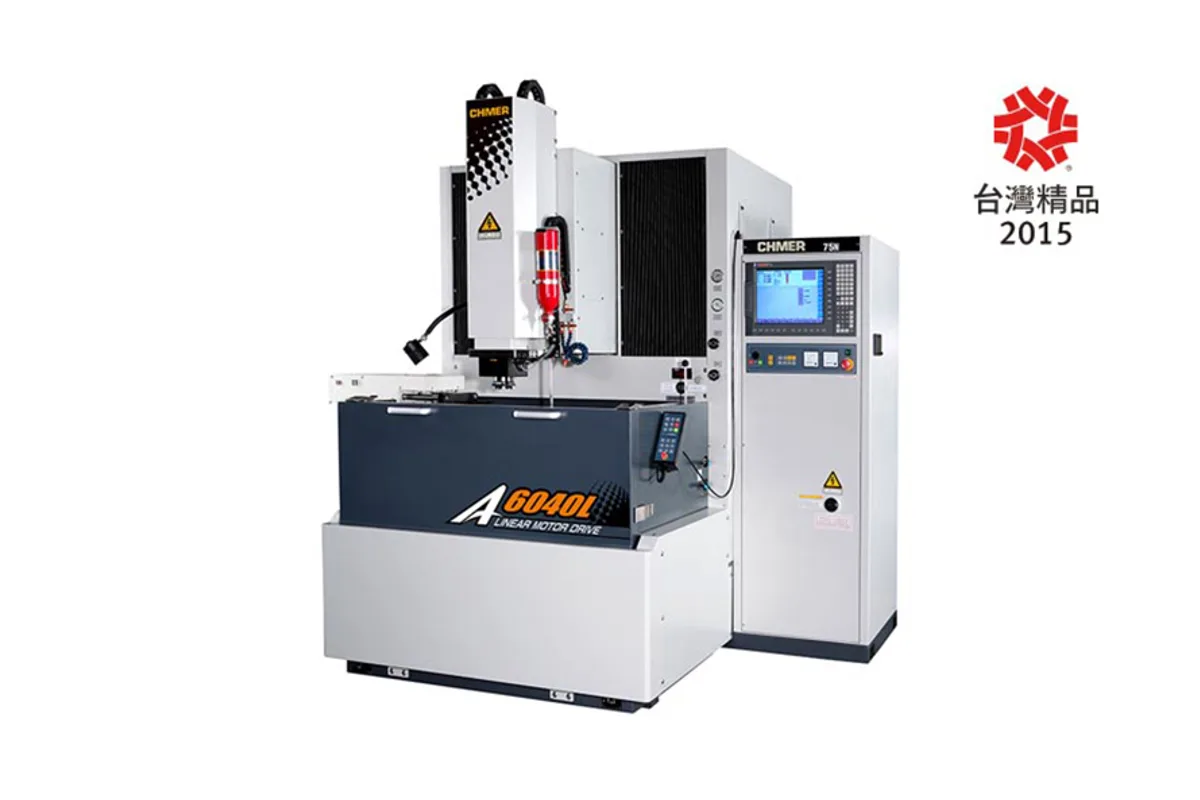

Image: chmer.com, CHMER
Key Specifications
Table Size
work tank size
max workpiece size
x axis travel
y axis travel
z axis travel
How much does the CHMER A6040L cost?
Price estimate
We do not have a price for the CHMER A6040L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The CHMER A6040L is a CNC die sinker EDM with linear motors on all three axes. The table lists X, Y, Z Axis By Linear Motor, with travels of 600 x 400 mm (23.6 x 15.7 in) in the table axes and 350 mm (13.8 in) in Z. It is the only full linear motor sinker in CHMER's current list; the D322CL and D433CL have linear drive on Z alone.
Linear X and Y matter for orbiting and contouring. When an electrode is orbited to size a cavity, or swept along a path, the table axes reverse continuously, and a drive without screw backlash follows the commanded path more closely. On Z the benefit is fast jump motion for flushing.
In capacity the machine resembles the bridge-type CM A64C: an 800 x 500 mm (31.5 x 19.7 in) table, a 1,500 kg (3,307 lb) workpiece limit, 3,000 kg (6,614 lb) of machine weight and the DA64 dielectric tank of 635 L (168 gal). The workpiece can measure up to 1,050 x 700 x 300 mm. The electrode limit is lower, 50 kg (110 lb), in keeping with a direct-drive ram.
Generators are the 50N and 75N, built in, with maximum power inputs of 5 kVA and 6 kVA. The outline is 2,100 x 2,150 x 2,260 mm (82.7 x 84.6 x 89.0 in), and the machine needs air at 6 kgf/cm2. CHMER's page gives no feature text or accessory list for this model.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 800 x 500 mm (31.5 x 19.7 in) (W x D) |
| Work Tank Size | 1,200 x 740 x 450 mm (47.2 x 29.1 x 17.7 in) (W x D x H) |
| Max Workpiece Size | 1,050 x 700 x 300 mm (41.3 x 27.6 x 11.8 in) (W x D x H) |
| X Axis Travel | 600 mm (23.6 in) |
| Y Axis Travel | 400 mm (15.7 in) |
| Z Axis Travel | 350 mm (13.8 in) |
| Axis Drive System | X,Y,Z Axis By Linear Motor |
| Distance Ram Platen to Table | 250-600 mm (9.8-23.6 in) |
| Max Electrode Weight | 50 kg (110 lb) |
| Max Workpiece Weight | 1,500 kg (3,307 lb) |
| Machine Dimensions | 2,100 x 2,150 x 2,260 mm (82.7 x 84.6 x 89.0 in) (W x D x H) |
| Machine Weight | 3,000 kg (6,614 lb) |
| Air Pressure | 6 kgf/cm2 |
| Dielectric Tank Model | DA64 |
| Generator Models | 50N / 75N |
| Max Machining Current | 50 A (50N) / 75 A (75N) |
| Max Power Input | 5 kVA (50N) / 6 kVA (75N) |
| Electrode Wear Rate | 0.2% |
| Best Surface Roughness | 0.25 μm Ra |
| Dielectric Volume | 635 L (168 gal) |
| Filter Method | Paper filter |
Specifications sourced from chmer.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Linear motors on X, Y and Z
- 600 x 400 x 350 mm (23.6 x 15.7 x 13.8 in) travels
- 1,500 kg (3,307 lb) workpiece limit on an 800 x 500 mm (31.5 x 19.7 in) table
- Built-in generator and 635 L (168 gal) dielectric tank
- Best surface roughness of 0.25 μm Ra, electrode wear rate 0.2%
Limitations
- Electrode weight limited to 50 kg (110 lb)
- Generator options end at 75N (75 A)
- No accessory list or feature description on the model page
- Pneumatic supply of 6 kgf/cm2 required
Best For
Frequently Asked Questions
01
All three. The axis drive row reads X,Y,Z Axis By Linear Motor. On the D322CL and D433CL only the Z axis is linear and X and Y use AC servo motors.
02
The maximum job load size is 1,050 x 700 x 300 mm (41.3 x 27.6 x 11.8 in) and the maximum weight 1,500 kg (3,307 lb). The work tank measures 1,200 x 740 x 450 mm and the table 800 x 500 mm.
03
Both have 600 x 400 x 350 mm travels, an 800 x 500 mm table and the DA64 dielectric tank. The A6040L has linear motors on all axes and a 50 kg (110 lb) electrode limit; the CM A64C carries a 100 kg (220 lb) electrode. Generator power input is listed at 5 kVA and 6 kVA on the A6040L.
04
Floor space for 2,100 x 2,150 x 2,260 mm (82.7 x 84.6 x 89.0 in), a floor rated for the 3,000 kg (6,614 lb) machine plus workpiece and 635 L (168 gal) of dielectric, compressed air at 6 kgf/cm2, and up to 6 kVA of power for the 75N generator.
