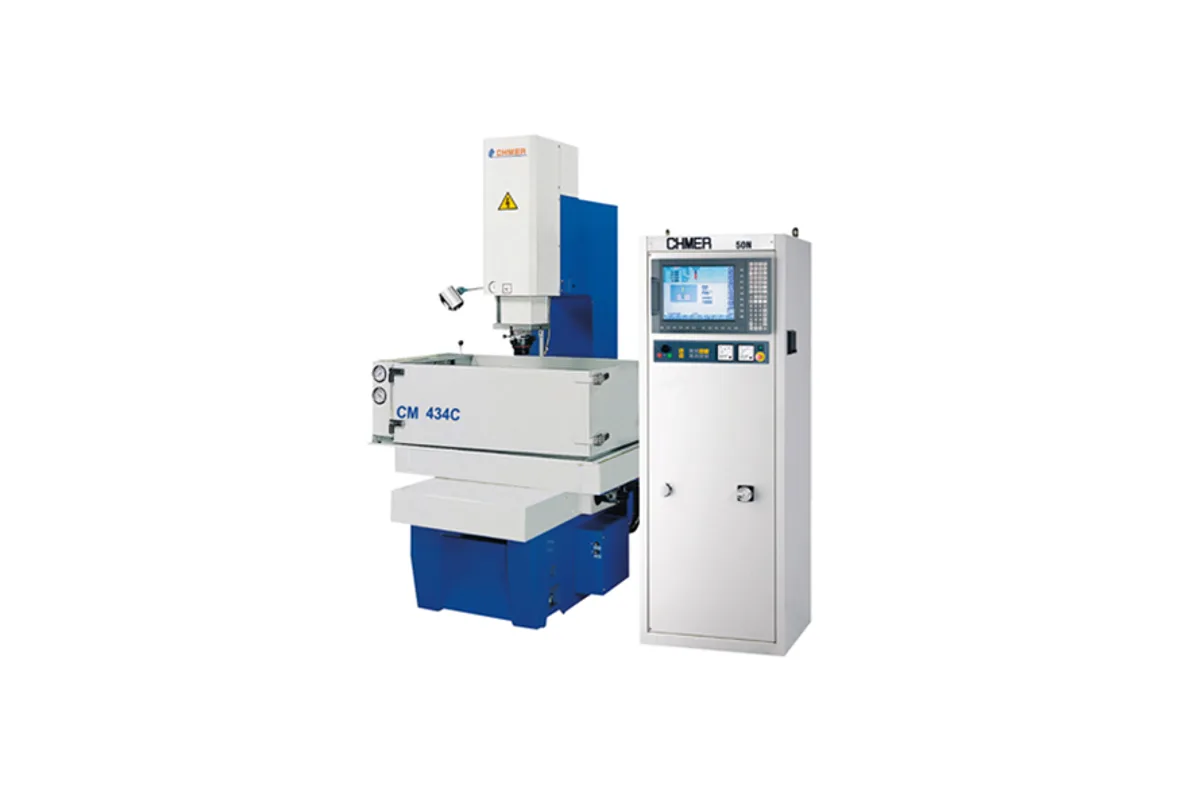

CHMER CM434C
Image: chmer.com, CHMER
Key Specifications
Table Size
work tank size
x axis travel
y axis travel
z axis travel
max workpiece weight
How much does the CHMER CM434C cost?
Price estimate
We do not have a price for the CHMER CM434C that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The CHMER CM434C is a CNC die sinker EDM with 400 x 300 mm (15.7 x 11.8 in) of table travel and 350 mm (13.8 in) of ram travel. It is the second size in CHMER's CNC series and the last one before the frames get much heavier: at 1,400 kg (3,080 lb) it is still a machine that goes into an ordinary toolroom bay.
Its table measures 650 x 400 mm and sits in a 1,050 x 630 x 350 mm (41.3 x 24.8 x 13.8 in) work tank. Workpieces up to 750 kg (1,653 lb) are allowed. Against the CM323C that is half as much load again, with a longer ram travel for deeper cavities; the CM323C has a 300 mm ram travel.
As on the smaller model, generators are limited to the 50N and 75N. With the 75N the machine delivers 75 A and a maximum machining speed of 550 mm3/min from a 5 kVA input. Both generators list 0.2% electrode wear and a best surface roughness of 0.25 μm Ra.
Construction follows the series: stress-relieved cast iron, precision ball screws on X, Y and Z, linear motion guides and closed-loop linear scales. The D434 dielectric tank holds 390 L (103 gal). One gap in the published data: CHMER's metric and pound figures for the maximum electrode weight do not agree for this model, so that row is omitted.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 650 x 400 mm (25.5 x 15.7 in) (W x D) |
| Work Tank Size | 1,050 x 630 x 350 mm (41.3 x 24.8 x 13.8 in) (W x D x H) |
| X Axis Travel | 400 mm (15.7 in) |
| Y Axis Travel | 300 mm (11.8 in) |
| Z Axis Travel | 350 mm (13.8 in) |
| Max Workpiece Weight | 750 kg (1,653 lb) |
| Machine Dimensions | 1,240 x 1,380 x 2,230 mm (48.8 x 54.3 x 87.8 in) (W x D x H) |
| Machine Weight | 1,400 kg (3,080 lb) |
| Dielectric Tank Model | D434 |
| Generator Models | 50N / 75N |
| Max Machining Current | 50 A (50N) / 75 A (75N) |
| Max Power Input | 4 kVA (50N) / 5 kVA (75N) |
| Max Machining Speed | 350 mm3/min (50N) / 550 mm3/min (75N) |
| Electrode Wear Rate | 0.2% |
| Best Surface Roughness | 0.25 μm Ra |
| Dielectric Volume | 390 L (103 gal) |
| Filter Method | Paper filter |
Specifications sourced from chmer.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 400 x 300 x 350 mm (15.7 x 11.8 x 13.8 in) travels in a 1,400 kg (3,080 lb) machine
- 750 kg (1,653 lb) maximum workpiece weight
- Footprint of 1,240 x 1,380 mm (48.8 x 54.3 in)
- Closed-loop linear scales and ball screws on X, Y and Z
- 390 L (103 gal) dielectric tank with paper filter
Limitations
- Generators limited to 50N and 75N
- Maximum machining speed of 550 mm3/min with the 75N
- Maximum electrode weight is not reliably published
- Tool changer and C axis are options
Best For
Frequently Asked Questions
01
The CM434C has 400 x 300 x 350 mm travels and carries 750 kg (1,653 lb); the CM323C has 300 x 200 x 300 mm travels and carries 500 kg (1,100 lb). Both are offered with the 50N and 75N generators only. The CM434C weighs 1,400 kg (3,080 lb) against 1,000 kg (2,200 lb) for the CM323C.
02
1,050 x 630 x 350 mm (41.3 x 24.8 x 13.8 in), width by depth by height. The table inside is 650 x 400 mm, and the D434 dielectric tank has a volume of 390 L (103 gal).
03
50 A with the 50N generator and 75 A with the 75N. Maximum power input is 4 kVA and 5 kVA, and maximum machining speed is 350 mm3/min and 550 mm3/min.
04
The machine measures 1,240 x 1,380 x 2,230 mm (48.8 x 54.3 x 87.8 in) and weighs 1,400 kg (3,080 lb). The generator is a separate cabinet, and the dielectric tank stands beside the machine.
