CHMER CM1675C

Q: How much does the CHMER CM1675C cost?

The price estimate for the CHMER CM1675C is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/chmer-cm1675c#price; the request is passed to CHMER or an authorised dealer.

Specs verified 2026-10-05 · chmer.com Updated 2026-10-05

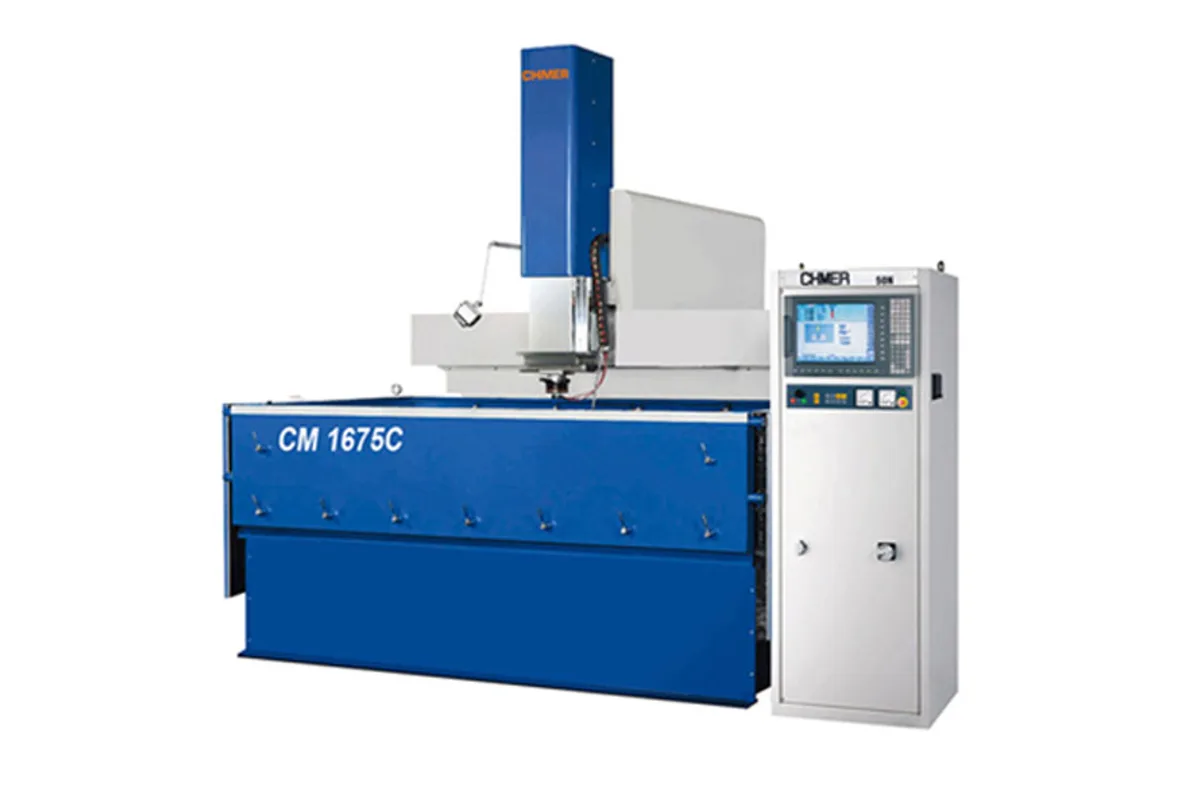

Image: chmer.com, CHMER

Key Specifications

Table Size

1,850 x 850 mm (72.8 x 33.5 in) (W x D)

x axis travel

1,600 mm (63.0 in)

y axis travel

700 mm (27.6 in)

z axis travel

500 mm (19.7 in)

distance ram platen to table

700-1,200 mm (27.6-47.2 in)

max electrode weight

400 kg (882 lb)

How much does the CHMER CM1675C cost?

Price estimate

Uncertain

We do not have a price for the CHMER CM1675C that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The CHMER CM1675C is a large CNC die sinker EDM with 1,600 x 700 mm (63.0 x 27.6 in) of table travel on an 1,850 x 850 mm (72.8 x 33.5 in) table. Ram travel is 500 mm (19.7 in). It accepts a workpiece of 2,520 x 1,200 x 540 mm (99.2 x 47.2 x 21.3 in) weighing up to 5,600 kg (12,346 lb).

Within the 75-frame family the three machines are close relatives, and the CM1675C is the middle one. Its table is longer than its X travel, which gives clamping room at both ends of the stroke; the CM1475C has a table exactly as long as its travel. Ram clearance is higher too, 700-1,200 mm (27.6-47.2 in) from platen to table.

Who needs that clearance? Anyone burning from above into a tall mould block with a long electrode holder, or using a C axis or tool changer, both of which CHMER offers as options and both of which add stack height under the ram. Electrode weight is limited to 400 kg (882 lb).

Dielectric volume is 4,250 L (1,123 gal). The machine weighs 7,400 kg (16,314 lb) and stands 3,270 mm (128.7 in) high on a 3,020 x 3,020 mm base. Generators run from the 50N to the 150N, the latter with 150 A and a maximum machining speed of 1,050 mm3/min. Axes run on ball screws and linear guides with closed-loop linear scales.

Full Specifications

Parameter	Value
Table Size	1,850 x 850 mm (72.8 x 33.5 in) (W x D)
X Axis Travel	1,600 mm (63.0 in)
Y Axis Travel	700 mm (27.6 in)
Z Axis Travel	500 mm (19.7 in)
Distance Ram Platen to Table	700-1,200 mm (27.6-47.2 in)
Max Electrode Weight	400 kg (882 lb)
Max Workpiece Size	2,520 x 1,200 x 540 mm (99.2 x 47.2 x 21.3 in) (W x D x H)
Max Workpiece Weight	5,600 kg (12,346 lb)
Machine Dimensions	3,020 x 3,020 x 3,270 mm (118.9 x 118.9 x 128.7 in) (W x D x H)
Machine Weight	7,400 kg (16,314 lb)
Generator Models	50N / 75N / 125N / 150N
Max Machining Current	50 A (50N) / 75 A (75N) / 125 A (125N) / 150 A (150N)
Max Power Input	4 kVA (50N) / 5 kVA (75N) / 9 kVA (125N) / 10 kVA (150N)
Max Machining Speed	350 mm3/min (50N) / 550 mm3/min (75N) / 900 mm3/min (125N) / 1,050 mm3/min (150N)
Electrode Wear Rate	0.2%
Best Surface Roughness	0.25 μm Ra
Dielectric Volume	4,250 L (1,123 gal)

Specifications sourced from chmer.com — verified 2026-10-05

Strengths & Limitations

Strengths

1,600 x 700 mm (63.0 x 27.6 in) table travel on an 1,850 x 850 mm (72.8 x 33.5 in) table
700-1,200 mm (27.6-47.2 in) from ram platen to table
Workpieces up to 2,520 x 1,200 x 540 mm and 5,600 kg (12,346 lb)
400 kg (882 lb) electrode limit
4,250 L (1,123 gal) dielectric volume

Limitations

3,270 mm (128.7 in) overall height
Minimum ram-to-table distance of 700 mm (27.6 in) is high for shallow work
Y travel of 700 mm (27.6 in) for a machine this long
7,400 kg (16,314 lb) machine weight

Best For

Long mould halves up to 2,520 mm in length Tall mould blocks with long electrode holders Setups using the optional C axis or tool changer Workpieces up to 5,600 kg (12,346 lb)

Frequently Asked Questions

01 What are the travels of the CM1675C?

X 1,600 mm (63.0 in), Y 700 mm (27.6 in) and 500 mm (19.7 in) of ram travel. The table measures 1,850 x 850 mm (72.8 x 33.5 in).

02 What is the difference between the CM1675C and the CM1475C?

The CM1675C has 1,600 mm of X travel, an 1,850 x 850 mm table and 700-1,200 mm of ram clearance. The CM1475C has 1,400 mm of X travel, a 1,400 x 850 mm table and 575-1,075 mm of clearance. Load limits are 5,600 kg (12,346 lb) and 5,500 kg (12,125 lb).

03 How large a workpiece does the CM1675C accept?

Up to 2,520 x 1,200 x 540 mm (99.2 x 47.2 x 21.3 in) and 5,600 kg (12,346 lb). Maximum electrode weight is 400 kg (882 lb).

04 How much dielectric and floor space does the CM1675C need?

Dielectric volume is 4,250 L (1,123 gal). The machine measures 3,020 x 3,020 x 3,270 mm (118.9 x 118.9 x 128.7 in) and weighs 7,400 kg (16,314 lb).
