CHMER CM2076C

Q: How much does the CHMER CM2076C cost?

The price estimate for the CHMER CM2076C is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/chmer-cm2076c#price; the request is passed to CHMER or an authorised dealer.

Specs verified 2026-10-05 · chmer.com Updated 2026-10-05

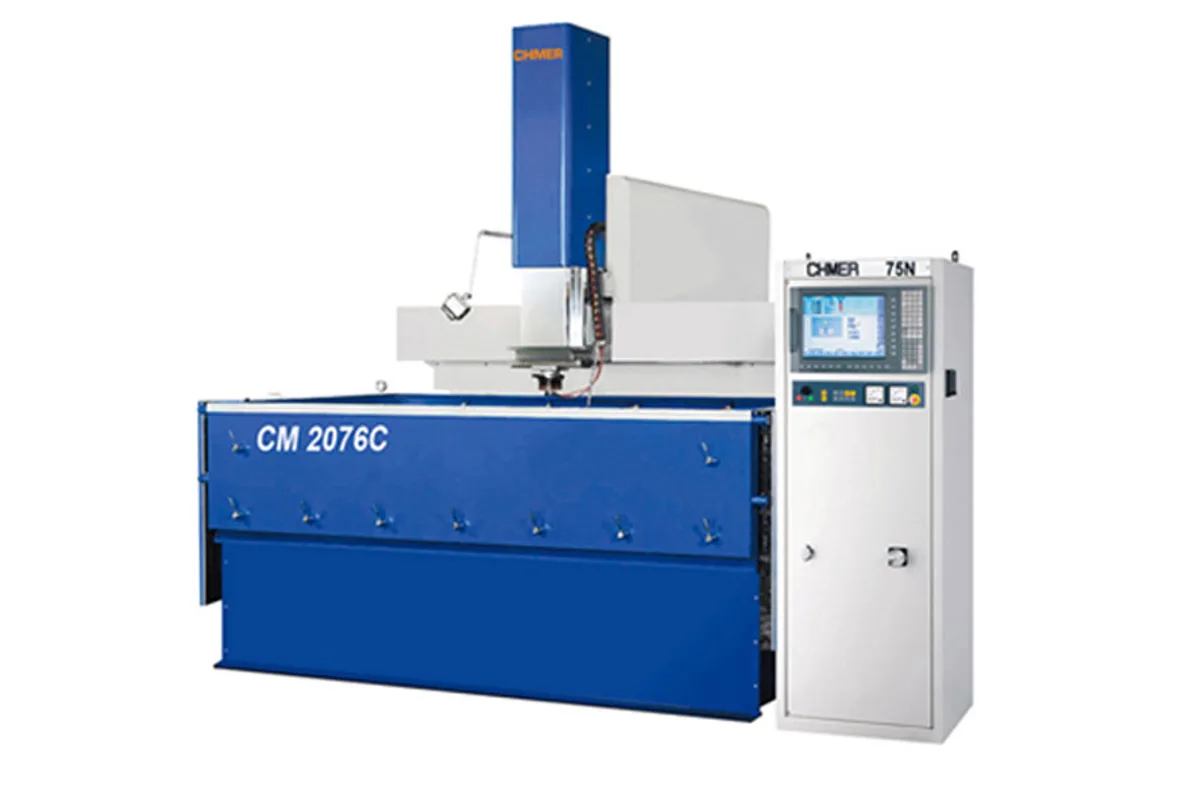

Image: chmer.com, CHMER

Key Specifications

Table Size

1,850 x 1,100 mm (72.8 x 43.3 in) (W x D)

x axis travel

2,000 mm (78.7 in)

y axis travel

750 mm (29.5 in)

z axis travel

600 mm (23.6 in)

distance ram platen to table

800-1,400 mm (31.5-55.1 in)

max electrode weight

500 kg (1,102 lb)

How much does the CHMER CM2076C cost?

Price estimate

Uncertain

We do not have a price for the CHMER CM2076C that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The CHMER CM2076C is a two-metre CNC die sinker EDM: 2,000 mm (78.7 in) of X travel, 750 mm (29.5 in) of Y and 600 mm (23.6 in) of ram travel. Its ram stroke is longer than the 500 mm of the CM1875C, and at 500 kg (1,102 lb) its electrode limit is the highest in the series.

The longer stroke and the heavier electrode go together. Deep cavities in large moulds are burned with tall graphite blocks, and both the mass and the retract distance grow with depth. Under the ram there is 800-1,400 mm (31.5-55.1 in) to the table, enough for a workpiece 640 mm high with tooling above it.

Workpiece capacity is 2,650 x 1,500 x 640 mm (104.3 x 59.1 x 25.2 in) and 6,800 kg (14,991 lb), on a table of 1,850 x 1,100 mm (72.8 x 43.3 in). Note that X travel exceeds the table length, so the ram can work past both ends of the table on an overhanging block.

This is a building-scale installation. The machine is 3,270 x 4,150 x 3,700 mm (128.7 x 163.4 x 145.7 in) and 9,400 kg (20,723 lb), with 4,850 L (1,281 gal) of dielectric. Generators run from 50N to 150N. Closed-loop linear scales, ball screws and linear guides on X, Y and Z are as on the rest of the series.

Full Specifications

Parameter	Value
Table Size	1,850 x 1,100 mm (72.8 x 43.3 in) (W x D)
X Axis Travel	2,000 mm (78.7 in)
Y Axis Travel	750 mm (29.5 in)
Z Axis Travel	600 mm (23.6 in)
Distance Ram Platen to Table	800-1,400 mm (31.5-55.1 in)
Max Electrode Weight	500 kg (1,102 lb)
Max Workpiece Size	2,650 x 1,500 x 640 mm (104.3 x 59.1 x 25.2 in) (W x D x H)
Max Workpiece Weight	6,800 kg (14,991 lb)
Machine Dimensions	3,270 x 4,150 x 3,700 mm (128.7 x 163.4 x 145.7 in) (W x D x H)
Machine Weight	9,400 kg (20,723 lb)
Generator Models	50N / 75N / 125N / 150N
Max Machining Current	50 A (50N) / 75 A (75N) / 125 A (125N) / 150 A (150N)
Max Power Input	4 kVA (50N) / 5 kVA (75N) / 9 kVA (125N) / 10 kVA (150N)
Max Machining Speed	350 mm3/min (50N) / 550 mm3/min (75N) / 900 mm3/min (125N) / 1,050 mm3/min (150N)
Electrode Wear Rate	0.2%
Best Surface Roughness	0.25 μm Ra
Dielectric Volume	4,850 L (1,281 gal)

Specifications sourced from chmer.com — verified 2026-10-05

Strengths & Limitations

Strengths

2,000 x 750 mm (78.7 x 29.5 in) table travel with 600 mm (23.6 in) of ram travel
500 kg (1,102 lb) electrode limit
Workpieces up to 2,650 x 1,500 x 640 mm (104.3 x 59.1 x 25.2 in) and 6,800 kg (14,991 lb)
800-1,400 mm (31.5-55.1 in) from ram platen to table
4,850 L (1,281 gal) dielectric volume

Limitations

3,700 mm (145.7 in) overall height
4,150 mm (163.4 in) deep, 9,400 kg (20,723 lb)
Minimum ram clearance of 800 mm (31.5 in) is impractical for shallow parts
Generator range tops out at 150 A, the same as on far smaller models

Best For

Deep cavities in large automotive moulds Tall graphite electrodes up to 500 kg (1,102 lb) Mould blocks up to 640 mm high and 6,800 kg (14,991 lb) Long workpieces overhanging the table

Frequently Asked Questions

01 What are the travels of the CM2076C?

X 2,000 mm (78.7 in), Y 750 mm (29.5 in) and a ram travel of 600 mm (23.6 in). The table is 1,850 x 1,100 mm (72.8 x 43.3 in) and the ram platen is 800-1,400 mm (31.5-55.1 in) above it.

02 How does the CM2076C compare with the CM1875C?

The CM2076C has 2,000 x 750 x 600 mm travels, a 500 kg (1,102 lb) electrode limit and a 6,800 kg (14,991 lb) workpiece limit. The CM1875C has 1,800 x 700 x 500 mm travels, 400 kg (882 lb) and 5,800 kg (12,787 lb). The CM2076C table is also wider, 1,100 mm against the 850 mm of the CM1875C.

03 What workpiece size does the CM2076C accept?

Up to 2,650 x 1,500 x 640 mm (104.3 x 59.1 x 25.2 in) and 6,800 kg (14,991 lb). Maximum electrode weight is 500 kg (1,102 lb).

04 What does the CM2076C require of the building?

Space for 3,270 x 4,150 x 3,700 mm (128.7 x 163.4 x 145.7 in) plus crane clearance, a foundation for the 9,400 kg (20,723 lb) machine with its load, and room for 4,850 L (1,281 gal) of dielectric. Maximum power input with the 150N generator is 10 kVA.
