CHMER CM1065C

Q: How much does the CHMER CM1065C cost?

The price estimate for the CHMER CM1065C is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/chmer-cm1065c#price; the request is passed to CHMER or an authorised dealer.

Specs verified 2026-10-05 · chmer.com Updated 2026-10-05

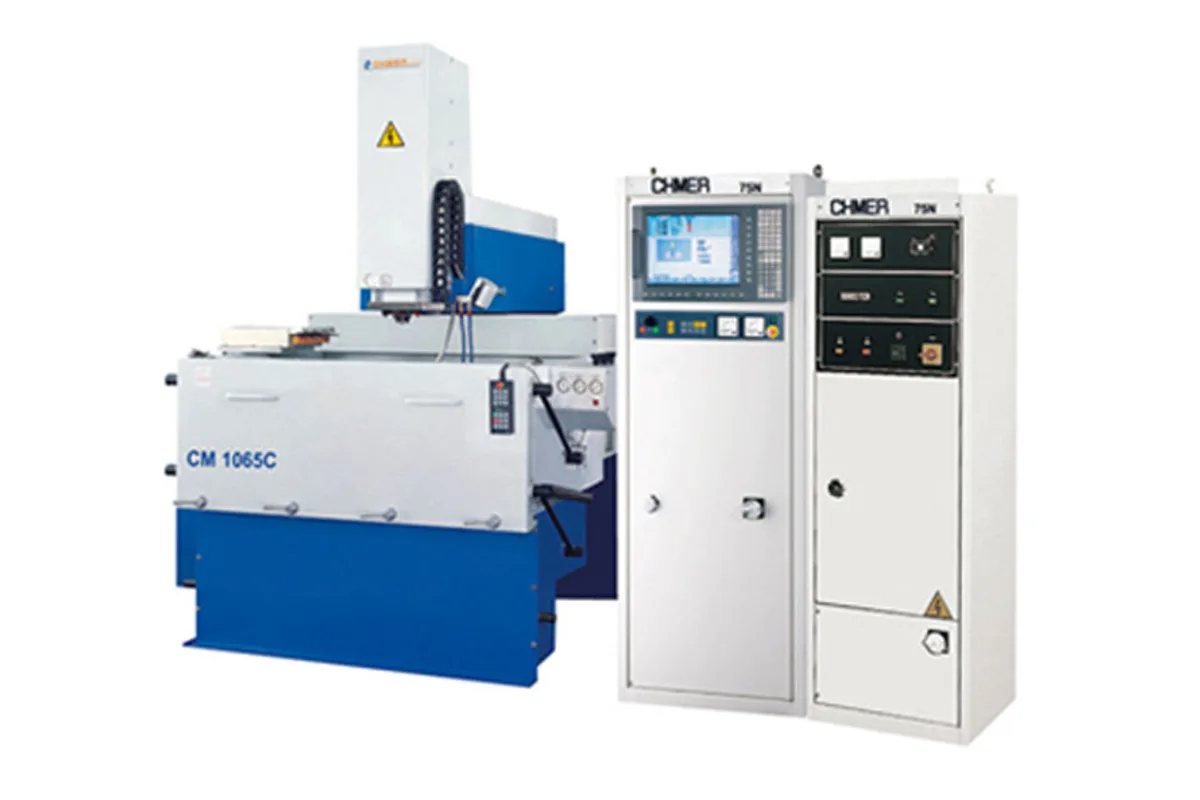

Image: chmer.com, CHMER

Key Specifications

Table Size

1,200 x 800 mm (47.2 x 31.5 in) (W x D)

work tank size

2,100 x 1,200 x 600 mm (82.7 x 47.2 x 23.6 in) (W x D x H)

x axis travel

1,000 mm (39.4 in)

y axis travel

600 mm (23.6 in)

z axis travel

500 mm (19.7 in)

max electrode weight

300 kg (660 lb)

How much does the CHMER CM1065C cost?

Price estimate

Uncertain

We do not have a price for the CHMER CM1065C that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The CHMER CM1065C is a metre-class CNC die sinker EDM: 1,000 x 600 mm (39.4 x 23.6 in) of table travel, 500 mm (19.7 in) of ram travel and a workpiece limit of 5,000 kg (11,000 lb). It shares its 1,200 x 800 mm table with the CM865C but sets it in a far larger work tank, 2,100 x 1,200 x 600 mm (82.7 x 47.2 x 23.6 in).

That tank is the point of the model. A mould half much longer than the table can overhang inside it and still be submerged, and the 1,000 mm of X travel lets the ram reach along it. The CM865C, by comparison, offers 800 mm of X in a 1,600 mm wide tank.

Five tonnes of workpiece needs a matching dielectric system. The D1065 tank holds 2,100 L (555 gal), and filling a work tank of this size takes time on every setup, so cycle planning should count fill and drain as part of the job. All four generators, 50N to 150N, can be fitted; the 150N gives 150 A and up to 1,050 mm3/min.

The machine weighs 6,500 kg (14,300 lb) and measures 2,600 x 2,600 x 3,050 mm. Electrode weight is limited to 300 kg (660 lb). CHMER's page prints a ram-to-table distance whose metric and inch figures disagree, so it is not listed here; ask for it if tall workpieces are planned.

Full Specifications

Parameter	Value
Table Size	1,200 x 800 mm (47.2 x 31.5 in) (W x D)
Work Tank Size	2,100 x 1,200 x 600 mm (82.7 x 47.2 x 23.6 in) (W x D x H)
X Axis Travel	1,000 mm (39.4 in)
Y Axis Travel	600 mm (23.6 in)
Z Axis Travel	500 mm (19.7 in)
Max Electrode Weight	300 kg (660 lb)
Max Workpiece Weight	5,000 kg (11,000 lb)
Machine Dimensions	2,600 x 2,600 x 3,050 mm (102.3 x 102.3 x 120 in) (W x D x H)
Machine Weight	6,500 kg (14,300 lb)
Dielectric Tank Model	D1065
Generator Models	50N / 75N / 125N / 150N
Max Machining Current	50 A (50N) / 75 A (75N) / 125 A (125N) / 150 A (150N)
Max Power Input	4 kVA (50N) / 5 kVA (75N) / 9 kVA (125N) / 10 kVA (150N)
Max Machining Speed	350 mm3/min (50N) / 550 mm3/min (75N) / 900 mm3/min (125N) / 1,050 mm3/min (150N)
Electrode Wear Rate	0.2%
Best Surface Roughness	0.25 μm Ra
Dielectric Volume	2,100 L (555 gal)
Filter Method	Paper filter

Specifications sourced from chmer.com — verified 2026-10-05

Strengths & Limitations

Strengths

1,000 x 600 mm (39.4 x 23.6 in) table travel with 500 mm (19.7 in) of ram travel
Work tank of 2,100 x 1,200 x 600 mm (82.7 x 47.2 x 23.6 in)
5,000 kg (11,000 lb) workpiece limit
Generators 50N to 150N, up to 1,050 mm3/min
2,100 L (555 gal) dielectric tank

Limitations

Table is 1,200 x 800 mm (47.2 x 31.5 in), no larger than on the CM865C
3,050 mm overall height needs a high bay
Ram-to-table distance is not reliably published
Electrode limit of 300 kg (660 lb)

Best For

Long mould halves up to 5,000 kg (11,000 lb) Automotive interior and appliance mould cavities Workpieces that overhang the table inside a large tank High-current roughing with large graphite electrodes

Frequently Asked Questions

01 What is the capacity of the CM1065C?

Table travel is 1,000 x 600 mm (39.4 x 23.6 in), ram travel 500 mm (19.7 in), maximum workpiece weight 5,000 kg (11,000 lb) and maximum electrode weight 300 kg (660 lb). The work tank measures 2,100 x 1,200 x 600 mm.

02 How does the CM1065C differ from the CM865C?

The table is the same size, 1,200 x 800 mm, but the CM1065C has 1,000 mm of X travel against 800 mm on the CM865C, a 2,100 x 1,200 x 600 mm tank against 1,600 x 1,000 x 550 mm, and carries 5,000 kg (11,000 lb) against 4,000 kg (8,800 lb).

03 How much dielectric does the CM1065C hold?

The D1065 dielectric tank has a volume of 2,100 L (555 gal) and uses paper filtration. The work tank it serves measures 2,100 x 1,200 x 600 mm (82.7 x 47.2 x 23.6 in).

04 What are the dimensions and weight of the CM1065C?

Outside dimensions are 2,600 x 2,600 x 3,050 mm, width by depth by height, and the machine weighs 6,500 kg (14,300 lb). The generator and dielectric tank are separate units.
