CHMER CM1265C

Q: How much does the CHMER CM1265C cost?

The price estimate for the CHMER CM1265C is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/chmer-cm1265c#price; the request is passed to CHMER or an authorised dealer.

Specs verified 2026-10-05 · chmer.com Updated 2026-10-05

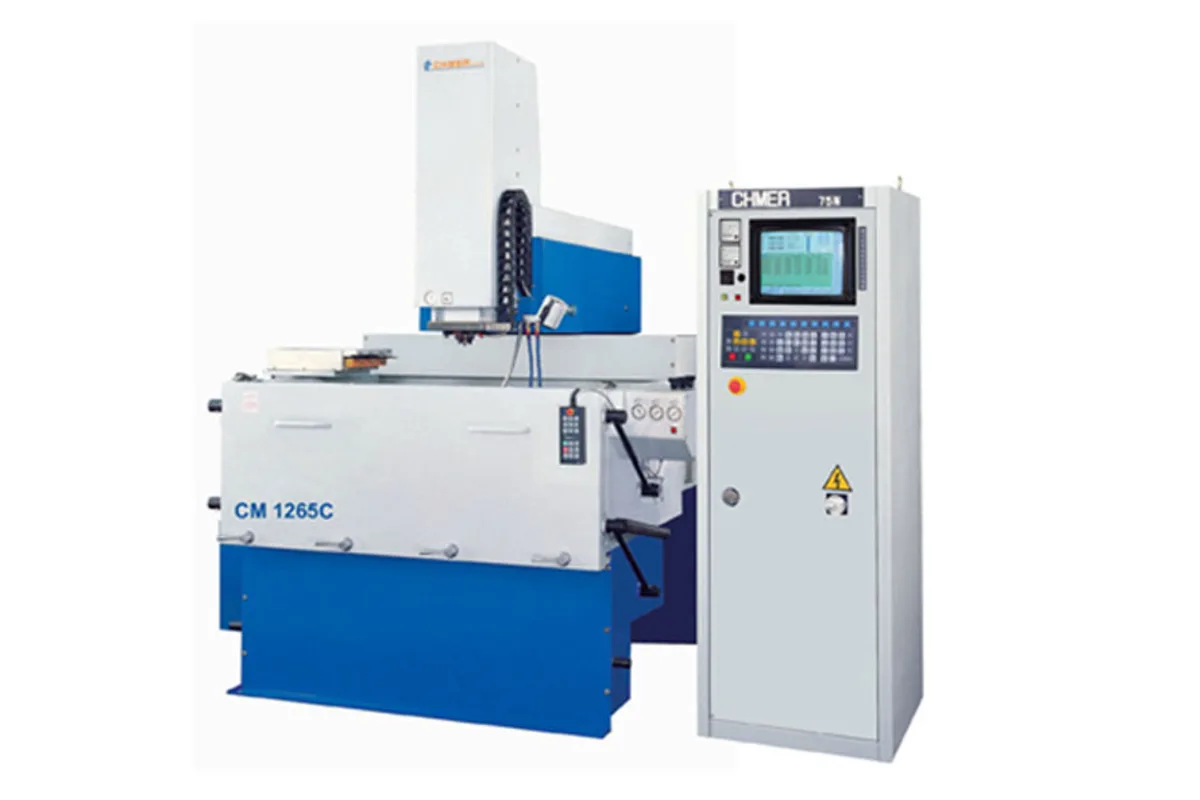

Image: chmer.com, CHMER

Key Specifications

Table Size

1,500 x 800 mm (59.1 x 31.5 in) (W x D)

work tank size

2,500 x 1,350 x 700 mm (98.4 x 53.1 x 27.5 in) (W x D x H)

x axis travel

1,200 mm (47.2 in)

y axis travel

600 mm (23.6 in)

z axis travel

500 mm (19.7 in)

max electrode weight

300 kg (660 lb)

How much does the CHMER CM1265C cost?

Price estimate

Uncertain

We do not have a price for the CHMER CM1265C that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The CHMER CM1265C is the largest of CHMER's C-frame-style CNC die sinkers before the series moves to its 75 and 76 frames. It has 1,200 x 600 mm (47.2 x 23.6 in) of table travel, a 1,500 x 800 mm (59.1 x 31.5 in) table and a workpiece limit of 7,500 kg (16,500 lb).

That load rating is the highest among the models up to this size and exceeds several of the larger machines above it: the CM1475C, with more X travel, is rated for 5,500 kg (12,125 lb). A buyer with short, dense mould blocks should therefore look here first.

The work tank measures 2,500 x 1,350 x 700 mm (98.4 x 53.1 x 27.5 in), and the D1265 dielectric tank holds 3,500 L (925 gal). Ram travel is 500 mm (19.7 in) and electrode weight is limited to 300 kg (660 lb), so the burning end is the same as on the CM865C; only the table and structure are scaled up. The machine weighs 8,500 kg (18,700 lb).

Generators from 50N to 150N are available. At 150 A the 150N reaches 1,050 mm3/min, and the 50N or 75N can finish to 0.25 μm Ra. Two rows on CHMER's page are unusable for this model, because the metric and inch figures contradict each other: the outside dimensions and the ram-to-table distance. Get both from CHMER before planning the bay.

Full Specifications

Parameter	Value
Table Size	1,500 x 800 mm (59.1 x 31.5 in) (W x D)
Work Tank Size	2,500 x 1,350 x 700 mm (98.4 x 53.1 x 27.5 in) (W x D x H)
X Axis Travel	1,200 mm (47.2 in)
Y Axis Travel	600 mm (23.6 in)
Z Axis Travel	500 mm (19.7 in)
Max Electrode Weight	300 kg (660 lb)
Max Workpiece Weight	7,500 kg (16,500 lb)
Machine Weight	8,500 kg (18,700 lb)
Dielectric Tank Model	D1265
Generator Models	50N / 75N / 125N / 150N
Max Machining Current	50 A (50N) / 75 A (75N) / 125 A (125N) / 150 A (150N)
Max Power Input	4 kVA (50N) / 5 kVA (75N) / 9 kVA (125N) / 10 kVA (150N)
Max Machining Speed	350 mm3/min (50N) / 550 mm3/min (75N) / 900 mm3/min (125N) / 1,050 mm3/min (150N)
Electrode Wear Rate	0.2%
Best Surface Roughness	0.25 μm Ra
Dielectric Volume	3,500 L (925 gal)
Filter Method	Paper filter

Specifications sourced from chmer.com — verified 2026-10-05

Strengths & Limitations

Strengths

7,500 kg (16,500 lb) workpiece limit
1,200 x 600 mm (47.2 x 23.6 in) table travel on a 1,500 x 800 mm (59.1 x 31.5 in) table
Work tank of 2,500 x 1,350 x 700 mm (98.4 x 53.1 x 27.5 in)
3,500 L (925 gal) dielectric tank
Full generator range, 50 A to 150 A

Limitations

Outside dimensions and ram-to-table distance are printed inconsistently by the maker
Electrode limit of 300 kg (660 lb) on an 8,500 kg (18,700 lb) machine
Y travel of 600 mm (23.6 in) is no more than on the CM865C
Large dielectric volume lengthens fill and drain

Best For

Dense, heavy mould blocks up to 7,500 kg (16,500 lb) Long cavities up to 1,200 mm (47.2 in) Die-casting and forging die work Roughing at up to 150 A with the 150N generator

Frequently Asked Questions

01 How heavy a workpiece can the CM1265C take?

The maximum workpiece weight is 7,500 kg (16,500 lb). The maximum electrode weight is 300 kg (660 lb). The table is 1,500 x 800 mm (59.1 x 31.5 in).

02 What are the travels of the CM1265C?

Table travel is 1,200 x 600 mm (47.2 x 23.6 in) in X and Y, and ram travel is 500 mm (19.7 in). The table is 1,500 x 800 mm (59.1 x 31.5 in) and the work tank 2,500 x 1,350 x 700 mm.

03 How does the CM1265C compare with the CM1065C?

The CM1265C has 1,200 mm of X travel, a 1,500 x 800 mm table, a 7,500 kg (16,500 lb) load limit and a 3,500 L (925 gal) dielectric tank. The CM1065C has 1,000 mm of X travel, a 1,200 x 800 mm table, 5,000 kg (11,000 lb) and 2,100 L (555 gal). Y and ram travel are the same.

04 What does the CM1265C weigh?

The machine weighs 8,500 kg (18,700 lb). Add up to 7,500 kg (16,500 lb) of workpiece and the dielectric in the 2,500 x 1,350 x 700 mm work tank when checking the foundation.
