Sodick AQ750L

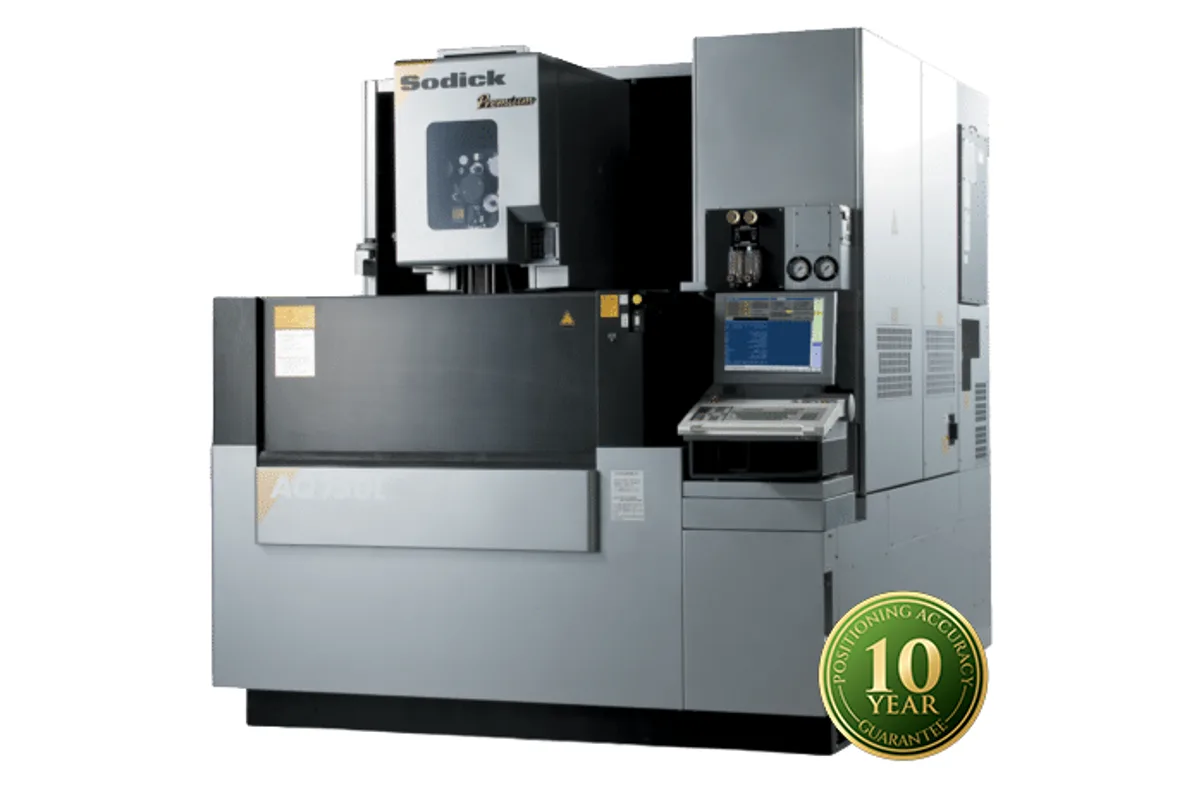

Image: sodick.com, Sodick
Key Specifications
X Travel
Y Travel
Z Travel
Accuracy
uv taper range
work table size
How much does the Sodick AQ750L cost?
Estimated price range
Our best estimate for a wire edm in this class — not a quote from Sodick. Configuration moves it a long way.
Overview
The Sodick AQ750L is a wire EDM with 29.53 in (750 mm) of X, 19.68 in (500 mm) of Y and 23.62 in (600 mm) of Z travel, a 1,000 x 720 mm (39.4 x 28.3 in) work table and a workpiece limit of 3,307 lb (1,500 kg). Treat the listed figures as a starting point and confirm each one with Sodick before ordering.
Height needs the most care. Z travel is listed at 23.62 in (600 mm), but the maximum workpiece height is 300 mm (11.8 in), so plan parts around the 300 mm figure. The AQ750LH is listed with a 400 mm (15.7 in) workpiece height and is the variant to ask about for taller blocks.
Taper is listed as ±15° over a 100 mm height. U/V travel appears as 30.31 in × 20.47 in (770 × 520 mm), larger than the X/Y travel, so it says little about taper on its own. Wire runs from 0.006 in to 0.012 in (0.15 - 0.30 mm), which suits standard and heavy wire on die and mould work, not fine-wire detail. The work tank is 49.76 in × 38.31 in (1,264 × 973 mm).
The table describes linear motors on X, Y, U and V, an SP43A generator, the Sodick LQ controller and automatic wire threading with in-cut re-threading. It also quotes ±0.001 mm positioning accuracy and Ra 0.20 um finish; get those in writing for the machine being quoted.
The machine weighs 11,684 lb (5,300 kg) and measures 82.68 in × 110.24 in × 92.52 in (2,100 × 2,800 × 2,350 mm), against 17,637 lb (8,000 kg) for the larger AQ900L. The table is 39.37 in (1,000 mm) above the floor.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 29.53 in (750 mm) |
| Y-Axis Travel | 19.68 in (500 mm) |
| Z-Axis Travel | 23.62 in (600 mm) |
| Uv Taper Range | ±15° / 100 mm height |
| Work Table Size | 1,000 x 720 mm (39.4 x 28.3 in) |
| Max Workpiece Weight | 3,307 lb (1,500 kg) |
| Max Workpiece Height | 300 mm (11.8 in) |
| Drive System | Linear motors (X, Y, U, V axes) |
| Generator | SP43A with e-pak discharge circuit |
| Surface Finish | Ra 0.20 um achievable |
| Positioning Accuracy | ±0.001 mm |
| CNC Control | Sodick LQ controller |
| Awt | Automatic wire threading with in-cut re-threading |
| Machine Weight | 11,684 lb (5,300 kg) |
| Machine Structure | Cast iron and granite composite bed |
| Uv Axis Travel | 30.31 in × 20.47 in (770 × 520 mm) |
| Wire Diameter | 0.006 in - 0.012 in (0.15 - 0.30 mm) |
| Work Tank Size | 49.76 in × 38.31 in (1,264 × 973 mm) |
| Floor to Table | 39.37 in (1,000 mm) |
| Floor Space Required | 82.68 in × 110.24 in × 92.52 in (2,100 × 2,800 × 2,350 mm) |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- Listed with linear motors on the X, Y, U and V axes and automatic wire threading with in-cut re-threading
- Work table of 1,000 x 720 mm (39.4 x 28.3 in) and a 3,307 lb (1,500 kg) workpiece limit
- Taper listed at ±15° over a 100 mm height
- Lighter than the AQ900L: 11,684 lb (5,300 kg) against 17,637 lb (8,000 kg)
Limitations
- Workpiece height is listed at 300 mm (11.8 in), well below the 23.62 in (600 mm) Z travel
- Wire range starts at 0.006 in (0.15 mm), so fine-wire detail is not covered
- The accuracy and finish figures in the listed table need confirming with Sodick
- The power supply entry names the SP43A generator, not an electrical rating
