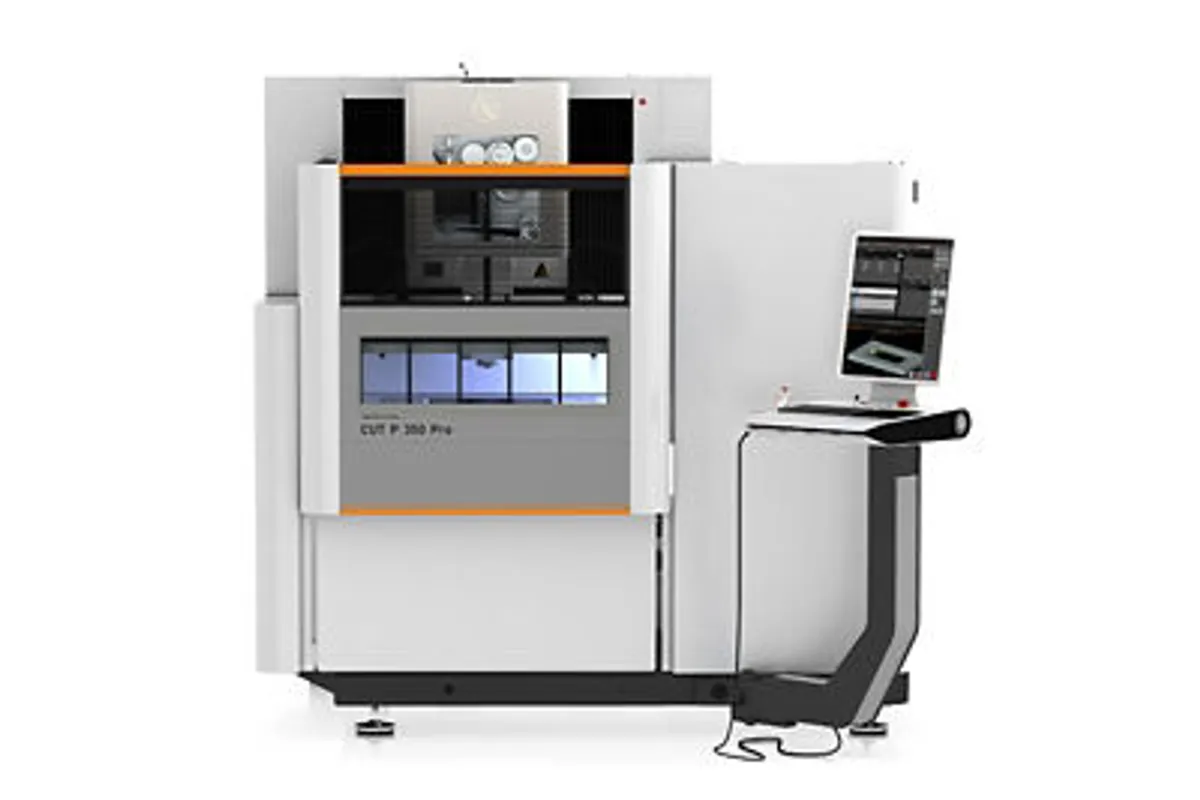

GF AgieCharmilles CUT P Pro

$280,000 - $380,000 Updated 2026-03-14

Key Specifications

X Travel

550 mm (21.7 in)

Y Travel

350 mm (13.8 in)

Z Travel

400 mm (15.7 in)

Accuracy

0.8 um

u axis

+/-75 mm (+/-2.95 in)

v axis

+/-75 mm (+/-2.95 in)

Overview

The GF AgieCharmilles CUT P Pro is the flagship wire EDM from GF Machining Solutions, representing the absolute pinnacle of AgieCharmilles wire EDM technology. Building on the CUT P 550 platform, the Pro version adds enhanced generator capabilities, advanced automation features, and optimized process strategies that push accuracy and surface finish quality to the limits of what wire EDM can achieve.

Travel is 550 x 350 x 400 mm (21.7 x 13.8 x 15.7 in), identical to the CUT P 550. The difference is in the generator and software. The CUT P Pro IPG generator includes additional spark strategies specifically developed for ultra-fine finishing, achieving Ra 0.04 um (1.6 uin) surface finish in water dielectric. This approaches the quality typically reserved for oil-dielectric machines, but without the speed penalty and safety considerations of oil.

Positioning accuracy is sub-micron at 0.8 um, tightened from the CUT P 550 by enhanced encoder resolution and more aggressive thermal compensation. The mineral cast base and vibration-damped frame provide the mechanical foundation for this level of precision.

The Pro version includes advanced automation with an integrated robot interface for pallet changing, enabling true lights-out production of precision parts. The UNIQUA HMI adds process analytics and machine learning-based parameter optimization that improves cut quality over time as the machine builds a database of optimal parameters for specific material and geometry combinations.

Wire compatibility spans 0.05 to 0.33 mm with twin-wire technology standard. ICP collision protection, automatic wire threading, and all CUT P features carry over. Machine weight is approximately 6,800 kg (14,991 lb) without dielectric.

New CUT P Pro machines price between $280,000 and $380,000. The Pro upgrade over the standard CUT P 550 adds approximately $50,000-$80,000.

Full Specifications

Parameter	Value
X-Axis Travel	550 mm (21.7 in)
Y-Axis Travel	350 mm (13.8 in)
Z-Axis Travel	400 mm (15.7 in)
U Axis	+/-75 mm (+/-2.95 in)
V Axis	+/-75 mm (+/-2.95 in)
Max Taper Angle	+/-30 deg at 100 mm height
Max Workpiece Size	1,050 x 750 x 400 mm (41.3 x 29.5 x 15.7 in)
Max Workpiece Weight	1,500 kg (3,307 lb)
Wire Diameter Range	0.05 - 0.33 mm (0.002 - 0.013 in)
Surface Finish	Ra 0.04 um (1.6 uin Ra) achievable
Positioning Accuracy	0.8 um
Max Cutting Speed	300 mm2/min (47 in2/hr)
CNC Control	UNIQUA HMI with process analytics
Generator	IPG Pro (Intelligent Power Generator)
Collision Protection	ICP (Intelligent Collision Protection)
Machine Base	Mineral cast (polymer concrete)
Automation	Integrated robot interface for pallet changing
Machine Weight	6,800 kg (14,991 lb) without dielectric
Machine Dimensions	3,300 x 2,700 x 2,450 mm (129.9 x 106.3 x 96.5 in)

Specifications sourced from gfms.com — verified 2026-03-28

Strengths & Limitations

Strengths

Ra 0.04 um surface finish in water dielectric approaches oil-dielectric quality without the speed and safety tradeoffs
0.8 um positioning accuracy is the tightest available in the AgieCharmilles wire EDM range
Machine learning-based parameter optimization improves cut quality over time as the database builds
Integrated robot interface enables true lights-out pallet-changing production of precision parts
Same 550 x 350 x 400 mm travel as the CUT P 550 with substantially enhanced finish and accuracy capabilities
Twin-wire technology and 0.05-0.33 mm wire range provide maximum flexibility for roughing through ultra-fine finishing

Limitations

$280,000-$380,000 price makes this the most expensive compact wire EDM in the GF lineup
Marginal accuracy improvement (0.8 vs 1.0 um) over the CUT P 550 may not justify the $50,000-$80,000 premium for all shops
Process analytics and ML optimization require time to build the parameter database before full benefit is realized
Integrated automation adds complexity and requires System 3R or compatible tooling investment
Very specialized machine that only makes economic sense for the highest-precision applications

Best For

The most demanding precision mold work requiring sub-micron accuracy and near-mirror surface finish Micro-electronics and connector tooling shops where 0.05 mm wire and Ra 0.04 um finish are required Medical implant tooling manufacturers producing the tightest-tolerance components Optical mold shops that want near-oil-dielectric surface quality without oil safety and speed concerns High-volume precision operations that benefit from automated pallet changing and ML-optimized parameters Shops investing in the absolute best wire EDM technology available for competitive advantage

Frequently Asked Questions

01 What does a GF AgieCharmilles CUT P Pro cost?

New CUT P Pro machines price between $280,000 and $380,000. The Pro upgrade over the standard CUT P 550 adds approximately $50,000-$80,000.

02 What is the difference between the CUT P 550 and CUT P Pro?

The Pro version adds enhanced IPG generator for Ra 0.04 um finish (vs 0.05 um), tighter 0.8 um accuracy (vs 1.0 um), integrated robot interface, and UNIQUA process analytics with ML-based parameter optimization.

03 Does the CUT P Pro use oil dielectric?

No. The CUT P Pro achieves Ra 0.04 um in water dielectric through advanced spark strategies. This eliminates the speed penalty, fire safety requirements, and higher operating costs of oil-dielectric machines.

04 What is the machine learning optimization?

UNIQUA process analytics tracks cutting results and builds a database of optimal parameters for specific material and geometry combinations. Over time, the system recommends improved parameters that deliver better finish and accuracy.

05 Is the CUT P Pro worth the premium over the CUT P 550?

The CUT P Pro makes sense for shops doing the most demanding precision work where 0.2 um accuracy improvement and Ra 0.01 um finish improvement have measurable impact. For general precision mold work, the standard CUT P 550 provides excellent performance at a lower cost.
