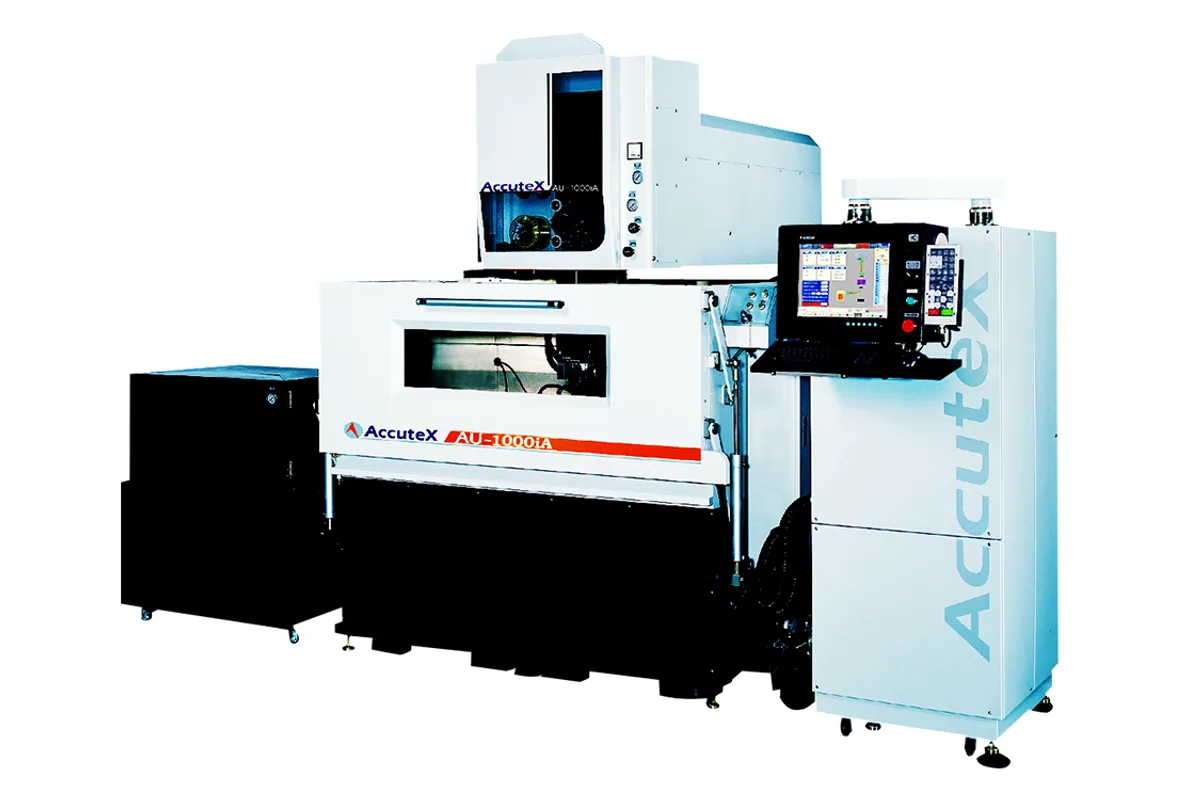

AccuteX AU-1000iA

Specs verified 2026-10-05 · accutex.com.tw Updated 2026-10-05

Image: accutex.com.tw, AccuteX

Key Specifications

max workpiece size

1,620 x 990 x 395 mm (63.8 x 39.0 x 15.6 in) (Opt. H595)

max cutting workpiece height

394 mm (15.5 in); second figure printed in brackets: 605 mm (23.8 in)

max workpiece weight

5,000 kg (11,023 lb)

x axis travel

1,100 mm (43.3 in)

y axis travel

650 mm (25.6 in)

uv axis travel

150 x 150 mm (5.9 x 5.9 in)

How much does the AccuteX AU-1000iA cost?

Price estimate

Uncertain

We do not have a price for the AccuteX AU-1000iA that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

For large mould and die work AccuteX offers the AU-1000iA: 1,100 mm (43.3 in) of X travel, 650 mm (25.6 in) of Y and a workpiece rating of 5,000 kg (11,023 lb). AccuteX's series text speaks of workpieces weighing up to 5000 kg, and this model is rated for exactly that.

The standard column has a 400 mm (15.7 in) Z stroke, and the table marks Z600 as an option. A workpiece can measure 1,620 x 990 x 395 mm (63.8 x 39.0 x 15.6 in), with an H595 option listed beside it. For the maximum cutting height AccuteX prints 394 mm (15.5 in) and then 605 mm (23.8 in) in brackets, which lines up with the two column heights although the table does not say so.

Decide on the column before the foundation drawing is made. In Z400 form the machine stands on 4,210 x 3,800 x 2,740 mm (165.7 x 149.6 x 107.9 in) and uses one main tank of 2,420 L. In Z600 form the footprint is 4,620 x 3,500 x 2,900 mm (181.9 x 137.8 x 114.2 in): longer, taller and slightly shallower, with the water divided between a main tank and a sub tank of 1,630 and 1,280 L. The listed weight is 8,100 kg (17,857 lb), with 8,700 kg (19,180 lb) in brackets.

Taper work is a strength at this size. U and V travel 150 x 150 mm (5.9 x 5.9 in) and the limit is ±30° / H100, so draft angles on big cavity inserts can be cut without tilting the part. The control interpolates 4 axes at once, or 5 with the optional W axis.

Full Specifications

Parameter	Value
Max Workpiece Size	1,620 x 990 x 395 mm (63.8 x 39.0 x 15.6 in) (Opt. H595)
Max Cutting Workpiece Height	394 mm (15.5 in); second figure printed in brackets: 605 mm (23.8 in)
Max Workpiece Weight	5,000 kg (11,023 lb)
X Axis Travel	1,100 mm (43.3 in)
Y Axis Travel	650 mm (25.6 in)
Uv Axis Travel	150 x 150 mm (5.9 x 5.9 in)
Z Axis Travel	400 mm (15.7 in) (Opt. Z600)
Max Cutting Taper	±30° / H100
Wire Spool Weight	16 kg (35 lb)
Machine Dimensions	Z400: 4,210 x 3,800 x 2,740 mm (165.7 x 149.6 x 107.9 in); Z600: 4,620 x 3,500 x 2,900 mm (181.9 x 137.8 x 114.2 in) (W x D x H)
Water System Capacity	Main Tank: 2,420 L (Z400); Main + Sub Tank: 1,630 + 1,280 L (Z600)
Machine Weight	8,100 kg (17,857 lb); second figure printed in brackets: 8,700 kg (19,180 lb)
Controller System	Windows
Control Device	64-bit Industrial PC
Storage Device	≥ 30GB SSD
Screen Display	21.5" Color TFT Touch Screen
Data Input	Keyboard, Mouse, USB, Ethernet, FTP
Controlled Axes	5 Axes / 6 Axes (Opt. W Axis)
Simultaneous Axes	4 Axes / 5 Axes (Opt. W Axis)
Min Command Unit	0.0001 mm / 0.00001 inch
Max Command Range	±9999.9999 mm
Cutting Data Memory	99999 Sets
Power Type	MOSFET Non-electrolysis power
Ignition Power Supply	32 Steps, 53V~138V
On Time Settings	24 Steps
Off Time Settings	43 Steps

Specifications sourced from accutex.com.tw — verified 2026-10-05

Strengths & Limitations

Strengths

1,100 mm (43.3 in) by 650 mm (25.6 in) of travel with a 5,000 kg (11,023 lb) workpiece rating
Z600 option on top of the standard 400 mm (15.7 in) Z stroke
Taper to ±30° / H100 with 150 x 150 mm (5.9 x 5.9 in) of U and V travel
Workpiece envelope of 1,620 x 990 x 395 mm (63.8 x 39.0 x 15.6 in), with an H595 option
16 kg (35 lb) wire spool for long roughing and skim sequences

Limitations

Z400 and Z600 versions differ in footprint and tank layout, so the choice has to be made before installation planning
The bracketed cutting-height and weight figures are not labelled in AccuteX's table
Occupies 4,210 x 3,800 x 2,740 mm (165.7 x 149.6 x 107.9 in) even in the shorter version
The page has no list of standard and optional accessories

Best For

Large injection mould inserts and die blocks up to 5,000 kg (11,023 lb) Draft-angle cutting up to ±30° / H100 on big parts Tall workpieces with the Z600 option

Frequently Asked Questions

01 What is the capacity of the AccuteX AU-1000iA?

X and Y travel are 1,100 mm (43.3 in) and 650 mm (25.6 in). The workpiece can be up to 1,620 x 990 x 395 mm (63.8 x 39.0 x 15.6 in), with an H595 option, and up to 5,000 kg (11,023 lb). The standard Z stroke is 400 mm (15.7 in) and Z600 is an option.

02 How do the Z400 and Z600 versions of the AU-1000iA differ?

AccuteX gives a footprint of 4,210 x 3,800 x 2,740 mm (165.7 x 149.6 x 107.9 in) and a main tank of 2,420 L for Z400. For Z600 it gives 4,620 x 3,500 x 2,900 mm (181.9 x 137.8 x 114.2 in) and a main tank plus a sub tank of 1,630 and 1,280 L.

03 How tall a part can the AU-1000iA cut?

The maximum height of cutting workpiece is listed as 394 mm (15.5 in), with 605 mm (23.8 in) printed in brackets beside it. The second figure matches the taller column in size, but the table does not label it, so have AccuteX confirm the cutting height of the version you order.

04 Should I choose the AU-1000iA or the AU-10iA?

Both travel 1,100 mm (43.3 in) by 650 mm (25.6 in). The AU-10iA is listed with a 4,000 kg (8,818 lb) workpiece, 100 x 100 mm (3.9 x 3.9 in) of U and V travel and a ±21° H=100 taper limit. The AU-1000iA carries 5,000 kg (11,023 lb), tapers to ±30° / H100 and has the Z600 option.
