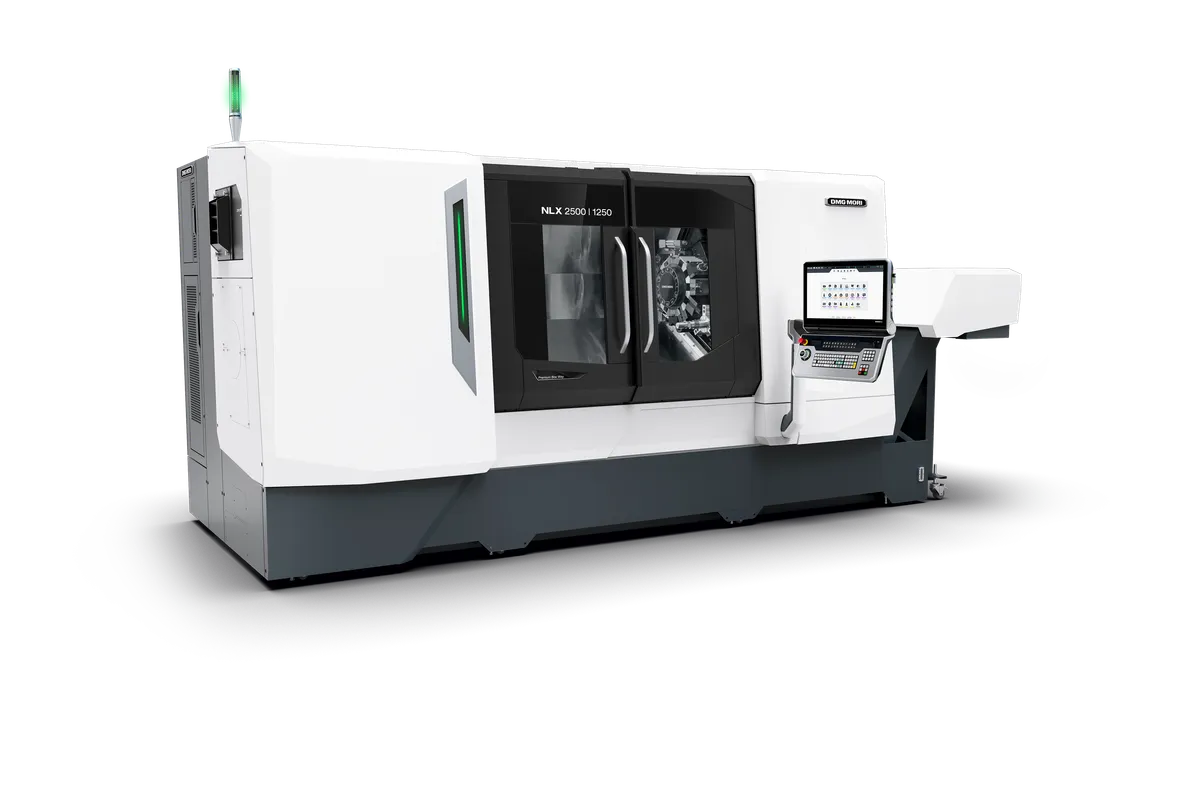

DMG Mori NLX 2500 2nd Generation

Specs verified 2026-10-02 · dmgmori.com Updated 2026-10-02

Image: us.dmgmori.com, DMG Mori

Key Specifications

X Travel

260 mm (10.2 in)

Y Travel

120 mm (4.7 in)

Z Travel

795 mm (31.3 in) [Type 700] / 1,345 mm (53 in) [Type 1250]

Max Spindle

5,000 rpm (10" left spindle); 3,000 rpm (12" left spindle, optional)

Max Workpiece ⌀

366 mm (14.4 in)

max bar capacity

105 mm (4.1 in)

How much does the DMG Mori NLX 2500 2nd Generation cost?

Price estimate

Uncertain

We do not have a price for the DMG Mori NLX 2500 2nd Generation that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The DMG MORI NLX 2500 2nd Generation is a universal turning center for 6-sided complete machining of workpieces up to Ø 366 x 1,258 mm, with a +/- 60 mm Y-axis and an optional right spindle. Travels are 260 mm (10.2 in) in X and 120 mm (4.7 in) in Y. Z travel is 795 mm (31.3 in) on the Type 700 and 1,345 mm (53 in) on the Type 1250, for maximum workpiece lengths of 708 mm (27.9 in) and 1,258 mm (49.5 in). Bar capacity is 105 mm (4.1 in).

The left spindle is the first thing to specify. The standard version is 10 in with 5,000 rpm and 843 Nm. The optional version is 12 in with 3,000 rpm and 1,273 Nm: about 50% more torque for 40% less speed, a trade that favours roughing at larger diameters over small bar. DMG MORI covers its MASTER spindles with a 36-month warranty and unlimited spindle hours.

The right spindle is optional. It ranges from a 6 in version with 7,000 rpm and 95 Nm up to a 10 in version with 5,000 rpm and a maximum of 577 Nm. Without it the back of the part cannot be finished in the same cycle, so the 6-sided machining DMG MORI describes depends on ordering it.

The BMT turret takes up to 20 tool stations; the VDI version has 12 stations. Two driven-tool drives are listed. High-Speed runs up to 12,000 rpm and 86 Nm, High-Torque up to 6,000 rpm and 100 Nm. One is for small cutters at speed, the other for larger drills, taps and cutters at half the speed.

For series production DMG MORI lists a 900 l coolant tank with an integrated sludge and oil collection system, stainless steel and ceramic coated covers, a self-cleaning chip conveyor and an automation interface that can be retrofitted. Compared with the NLX 2500, the 2nd Generation has 120 mm (4.7 in) of Y travel instead of 100 mm (3.9 in) on the same X and Z travels.

Full Specifications

Parameter	Value
X-Axis Travel	260 mm (10.2 in)
Y-Axis Travel	120 mm (4.7 in)
Max Workpiece Diameter	366 mm (14.4 in)
Max Bar Capacity	105 mm (4.1 in)
Z-Axis Travel	795 mm (31.3 in) [Type 700] / 1,345 mm (53 in) [Type 1250]
Max Workpiece Length	708 mm (27.9 in) [Type 700] / 1,258 mm (49.5 in) [Type 1250]
Max Spindle Speed	5,000 rpm (10" left spindle); 3,000 rpm (12" left spindle, optional)
Spindle Torque	843 Nm (10" left spindle); 1,273 Nm (12" left spindle, optional)
Driven Tool Speed	Up to 12,000 rpm (High-Speed); up to 6,000 rpm (High-Torque)
Driven Tool Torque	Up to 86 Nm (High-Speed); up to 100 Nm (High-Torque)
Sub Spindle Speed	Right spindle (optional): from 7,000 rpm (6") to 5,000 rpm (10")
Sub Spindle Torque	Right spindle (optional): from 95 Nm (6") up to max. 577 Nm (10")
Turret Stations	Up to 20 tool stations (BMT); 12 stations (VDI)
Coolant Tank	900 l

Specifications sourced from dmgmori.com — verified 2026-10-02

Strengths & Limitations

Strengths

Left spindle choice: 10 in with 5,000 rpm and 843 Nm, or the optional 12 in with 3,000 rpm and 1,273 Nm
BMT turret with up to 20 tool stations and driven tools up to 12,000 rpm or 100 Nm
120 mm (4.7 in) of Y travel (+/- 60 mm), against 100 mm (3.9 in) on the NLX 2500
105 mm (4.1 in) bar capacity, with workpieces up to 1,258 mm (49.5 in) long on the Type 1250
MASTER spindles carry a 36-month warranty with unlimited spindle hours
900 l coolant tank with integrated sludge and oil collection, and an automation interface that can be retrofitted

Limitations

The right spindle is optional, so finishing both ends in one cycle depends on ordering it; its smallest version is 6 in with 95 Nm
The two turret drives are alternatives: 12,000 rpm comes with 86 Nm, and 100 Nm comes with a 6,000 rpm limit
The VDI turret version has 12 stations, against up to 20 tool stations on the BMT turret
Maximum workpiece diameter is 366 mm (14.4 in), which rules out larger flange and disc work
The optional 12 in left spindle is limited to 3,000 rpm, which holds back surface speed on small diameters

Best For

Complete machining of parts up to Ø 366 x 1,258 mm with the optional right spindle Bar work from stock up to 105 mm (4.1 in) Series production with automation and the 900 l coolant tank Turn-mill parts needing driven tools up to 12,000 rpm or 100 Nm Shafts up to 1,258 mm (49.5 in) long on the Type 1250

Frequently Asked Questions

01 What spindle options does the NLX 2500 2nd Generation have?

The left spindle is 10 in with 5,000 rpm and 843 Nm, or optionally 12 in with 3,000 rpm and 1,273 Nm. The right spindle is itself an option, from 6 in with 7,000 rpm and 95 Nm up to 10 in with 5,000 rpm and a maximum of 577 Nm. DMG MORI gives its MASTER spindles a 36-month warranty with unlimited spindle hours.

02 What is the difference between the High-Speed and High-Torque turret drives?

High-Speed runs driven tools up to 12,000 rpm with 86 Nm. High-Torque runs up to 6,000 rpm with 100 Nm. Choose High-Speed for small end mills and drills that need rpm, and High-Torque for larger drills, taps and cutters. The BMT turret has up to 20 tool stations; the VDI version has 12 stations.

03 Is the sub-spindle standard on the NLX 2500 2nd Generation?

No. DMG MORI lists the right spindle as optional. The versions run from 6 in with 7,000 rpm and 95 Nm up to 10 in with 5,000 rpm and a maximum of 577 Nm. A machine ordered without it cannot machine the back of the part in the same cycle.

04 Which bed lengths is the NLX 2500 2nd Generation available in?

Two. The Type 700 has 795 mm (31.3 in) of Z travel and a maximum workpiece length of 708 mm (27.9 in). The Type 1250 has 1,345 mm (53 in) of Z travel and takes workpieces up to 1,258 mm (49.5 in). X travel is 260 mm (10.2 in) and Y travel 120 mm (4.7 in) on both.

05 What energy and coolant figures does DMG MORI give for this machine?

Under GREENMODE, DMG MORI quotes 16% less energy, 44% less lubrication oil and 12% less compressed air consumption, and notes that the energy value is for the NLX 2500 | 700. A machine with 400 V is listed with up to 6% reduced energy consumption. The coolant tank holds 900 l and has an integrated sludge and oil collection system intended to extend coolant life.

06 How is the 2nd Generation different from the earlier NLX 2500?

In the travels, only Y changes: the NLX 2500 2nd Generation has 120 mm (4.7 in) against 100 mm (3.9 in) on the NLX 2500, with the same 260 mm (10.2 in) of X and the same 795 mm (31.3 in) and 1,345 mm (53 in) Z travels.
