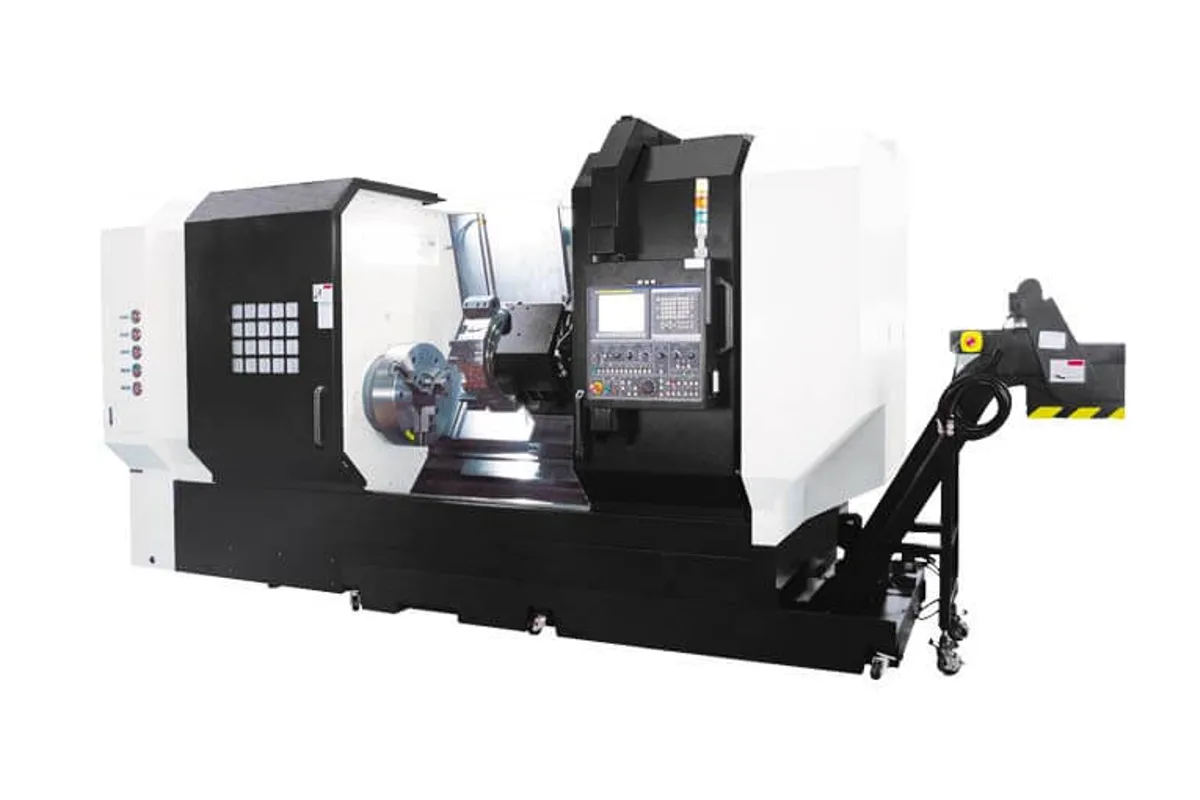

You Ji AH12
Image: image.youji.com, You Ji
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
max swing diameter
max turning diameter
bar capacity
How much does the You Ji AH12 cost?
Price estimate
We do not have a price for the You Ji AH12 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With Ø306 mm (12.0 in) of bar capacity and an A2-20 spindle nose, the You Ji AH12 is the largest-bore machine in the AH family of heavy-duty horizontal turning lathes. Casing, large-diameter line pipe and hollow rolls go through the headstock so that only the end being machined sits in the work zone.
The bore is listed as manual. Unlike the AH09, whose table gives a second, smaller figure for hydraulic chucking, the AH12 prints one figure and prints the chuck as an option. A buyer who wants power chucking at this bore should raise it with You Ji, since the catalogue does not show it.
400 rpm is the top speed. The 3-step gearbox divides the range into 1-120, 120-260 and 260-400 rpm behind a 37/45 kW (49.6/60.3 hp) motor. On a Ø306 mm (12.0 in) pipe that is ample; on a small-diameter journal it is not, and that is the dividing line between this model and the 1,200 rpm AH06.
Everything around the spindle matches the rest of the series. Swing is Ø950 mm (37.4 in), turning diameter Ø900 mm (35.4 in) with the 12-station turret or Ø800 mm (31.5 in) on M models with the 12-station BMT75 turret, and turning length 1,000, 2,100 or 3,200 mm (39.4, 82.7 or 126.0 in). Machine height is 2,685 mm (105.7 in).
Full Specifications
| Parameter | Value |
|---|---|
| Max Swing Diameter | Ø950 mm (37.4 in) |
| Max Turning Diameter | Ø900 mm (35.4 in); Ø800 mm (31.5 in) on M models |
| Max Turning Length | 1,000/2,100/3,200 mm (39.4/82.7/126.0 in) |
| Bar Capacity | Ø306 mm (12.0 in) manual |
| Spindle Motor Power | 37/45 kW (49.6/60.3 hp) |
| Turret Type | 12-st.; 12-st. (BMT75) on M models |
| Spindle Nose | A2-20 |
| Max Spindle Speed | 1-120/120-260/260-400 rpm |
| Machine Length | 5,925/7,025/8,125 mm (233.3/276.6/319.9 in) |
| Machine Width | 2,395 mm (94.3 in) |
| Machine Height | 2,685 mm (105.7 in) |
Specifications sourced from image.youji.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Ø306 mm (12.0 in) bar capacity, the largest in the AH series
- A2-20 spindle nose, a size up from the A2-15 of the AH06 and AH09
- Low gear of 1-120 rpm with 37/45 kW (49.6/60.3 hp) for threading large pipe
- Same three bed lengths and M-model BMT75 turret choice as the smaller-bore models
Limitations
- 400 rpm maximum spindle speed restricts small-diameter finishing
- Bar capacity is listed for manual chucking only
- Chuck is an option; no chuck size appears in the table
- Swing of Ø950 mm (37.4 in) is no larger than on the AH06, so the bigger bore does not bring a bigger envelope
Best For
Frequently Asked Questions
01
Bar capacity is Ø306 mm (12.0 in), listed as manual. The spindle nose is A2-20. For comparison the AH09 passes Ø232 mm (9.1 in) manual and the AH06 Ø153 mm (6.0 in).
02
Three gear steps: 1-120 rpm, 120-260 rpm and 260-400 rpm. The spindle motor is 37/45 kW (49.6/60.3 hp), the same rating as on the other two AH sizes, so the lower speeds here come from gearing for the larger spindle.
03
No. Swing is Ø950 mm (37.4 in) and turning diameter Ø900 mm (35.4 in), or Ø800 mm (31.5 in) on M models, exactly as on the AH06 and AH09. Turning lengths are also the same: 1,000, 2,100 and 3,200 mm (39.4, 82.7 and 126.0 in). Only the spindle differs.
04
Machine length is 5,925, 7,025 or 8,125 mm (233.3, 276.6 or 319.9 in) for the three beds, width 2,395 mm (94.3 in) and height 2,685 mm (105.7 in). Allow extra length behind the headstock for pipe that extends through the bore.
