Campro CPL-208

Q: How much does the Campro CPL-208 cost?

The price estimate for the Campro CPL-208 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-cpl-208#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

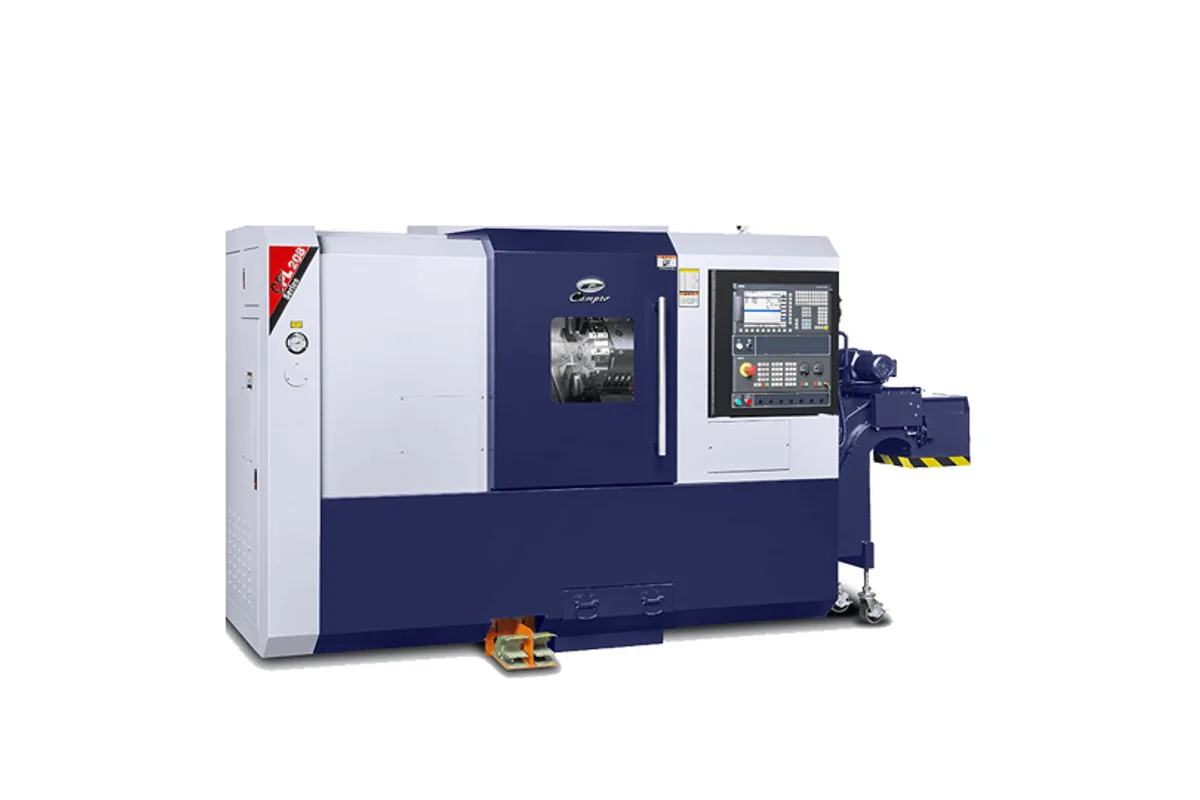

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

4,200 rpm

Spindle Power

11 / 15 kW (20 HP)

Max Turn Length

500 mm (19.6 in)

swing over bed

Ø540 mm (Ø21.2 in)

swing over carriage

Ø335 mm (Ø13.1 in)

distance between centers

580 mm (22.8 in)

How much does the Campro CPL-208 cost?

Price estimate

Uncertain

We do not have a price for the Campro CPL-208 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Campro CPL-208 is the general-purpose 8 in lathe of the CPL series. It turns up to Ø400 mm (15.7 in) in diameter and 500 mm (19.6 in) in length, with 580 mm (22.8 in) between centers, and its spindle motor is 11 / 15 kW (20 HP).

This is the size most job shops reach for first. The bed is long enough for shafts as well as chucking work. Swing over the bed is Ø540 mm (Ø21.2 in) and the standard turning diameter Ø320 mm (12.5 in). X travel is 200 + 20 mm and Z travel 500 mm (19.6 in).

Spindle hardware is shared with the CPL-158, with an A2-6 nose, a Ø52 mm (Ø2 in) hole through the draw tube and 4,200 rpm, but the motor is a step larger and the tailstock is heavier, with a Ø80 mm (Ø3.1 in) quill travelling 120 mm (4.7 in). A 10 in chuck is the option. The 10-station turret takes □25 / Ø40 mm tooling (O.D. / I.D.).

If the work needs more than this spindle, the CPL-3510 keeps the same Ø400 mm (15.7 in) maximum turning diameter but adds a 10 in chuck, a Ø75 mm (Ø2.9 in) draw tube hole and 22 / 26 kW (35 HP). The CPL-208 is the lighter, quicker choice, at 4,500 kg (9,920 lb) and 20 kVA.

Campro describes linear guideways on this model and a one-piece 45° box type casting. Rapids are 24 m/min on both axes. The floor plan with chip conveyor is 3,345 x 1,727 mm (131 in x 67 in), and the coolant tank holds 110 L (29 gal).

Full Specifications

Parameter	Value
Swing Over Bed	Ø540 mm (Ø21.2 in)
Swing Over Carriage	Ø335 mm (Ø13.1 in)
Distance Between Centers	580 mm (22.8 in)
Max Turning Length	500 mm (19.6 in)
Standard Turning Diameter	Ø320 mm (12.5 in)
Max Turning Diameter	Ø400 mm (15.7 in)
X Axis Travel	200 + 20 mm (7.8 in + 0.7 in)
Rapid Traverse X	24 m/min (944.8 in/min)
Z Axis Travel	500 mm (19.6 in)
Rapid Traverse Z	24 m/min (944.8 in/min)
Spindle Nose	A2-6
Chuck Size	8 in (OPT: 10 in)
Hole Through Draw Tube	Ø52 mm (Ø2 in)
Spindle Bearing Diameter	100 mm (3.9 in)
Spindle Motor Power	11 / 15 kW (20 HP)
Max Spindle Speed	4,200 rpm
Turret Type	10-Stations
Turret Tool Shank	□25 / Ø40 mm (O.D. / I.D.)
Turret Tool Change Time	0.3 sec
Tailstock Quill Diameter	Ø80 mm (Ø3.1 in)
Tailstock Quill Travel	120 mm (4.7 in)
Tailstock Quill Taper	MT-#4
Floor Plan with Chip Conveyor	3,345 x 1,727 mm (131 in x 67 in)
Machine Weight	4,500 kg (9,920 lb)
Coolant Tank Capacity	110 L (29 gal)
Power Requirement	20 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Ø400 mm (15.7 in) maximum turning diameter and 500 mm (19.6 in) turning length
11 / 15 kW (20 HP) spindle motor at up to 4,200 rpm
580 mm (22.8 in) between centers with a Ø80 mm (Ø3.1 in) tailstock quill
24 m/min rapids in X and Z on linear guideways
Moderate services: 20 kVA and 4,500 kg (9,920 lb)

Limitations

Draw tube hole is Ø52 mm (Ø2 in); the CPL-3510 passes Ø75 mm (Ø2.9 in)
10 turret stations and no driven tools
Chuck is 8 in as standard, with 10 in only as an option
Coolant tank of 110 L (29 gal) is small for long unattended runs

Best For

General job-shop turning of shafts and chucked parts Parts up to 500 mm (19.6 in) long supported by the tailstock Bar work up to the Ø52 mm (Ø2 in) draw tube hole Shops needing one lathe for mixed short runs

Frequently Asked Questions

01 What are the capacities of the CPL-208?

Swing over bed Ø540 mm (Ø21.2 in), swing over carriage Ø335 mm (Ø13.1 in), standard turning diameter Ø320 mm (12.5 in), maximum turning diameter Ø400 mm (15.7 in), maximum turning length 500 mm (19.6 in) and distance between centers 580 mm (22.8 in).

02 What spindle is on the CPL-208?

An A2-6 spindle nose with an 8 in hydraulic chuck, 10 in optional. Speed is 4,200 rpm and the motor 11 / 15 kW (20 HP). The hole through the draw tube is Ø52 mm (Ø2 in). Campro describes an AC spindle motor drive and a finned headstock for heat dissipation.

03 Does the CPL-208 have live tooling?

No. The table lists a 10-station turret with □25 / Ø40 mm (O.D. / I.D.) tooling, with a 0.3 sec tool change time, and no C axis. Campro's live-tool model with the same 8 in chuck is the CPL-20MC, which has a 12-position servo turret and a C axis.

04 What tailstock does the CPL-208 have?

The tailstock quill is Ø80 mm (Ø3.1 in) in diameter with 120 mm (4.7 in) of travel and an MT-#4 taper. With 580 mm (22.8 in) between centers, shaft work up to the 500 mm (19.6 in) turning length can be supported.
