Campro NT-2510SY

Q: How much does the Campro NT-2510SY cost?

The price estimate for the Campro NT-2510SY is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-nt-2510sy#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

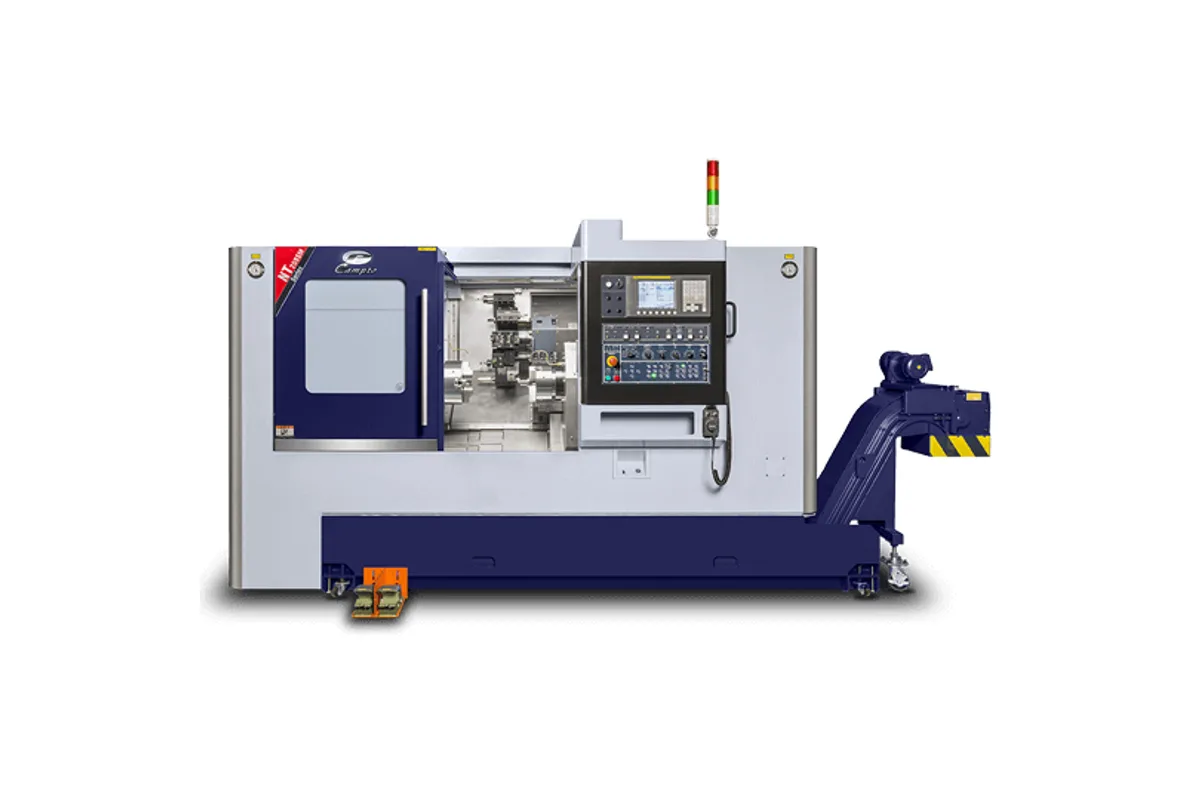

Campro NT series turning and milling center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

4,200 rpm

Spindle Power

11 / 15 kW (20 HP)

Max Turn Length

520 mm (20.4 in)

swing over bed

Ø680 mm (Ø26.7 in)

swing over carriage

Ø460 mm (Ø18.1 in)

max turning diameter

Ø400 mm (Ø15.7 in)

How much does the Campro NT-2510SY cost?

Price estimate

Uncertain

We do not have a price for the Campro NT-2510SY that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Campro presents the NT-2510SY as a 30° slant-bed, box way turning and milling center with a Y axis, a BMT living turret and a sub-spindle. The published table gives a maximum turning diameter of Ø400 mm (Ø15.7 in), a maximum turning length of 520 mm (20.4 in) and a Y travel of 100 (±50) mm.

The maker explains that it offers two configurations with the Y-axis function: one with a programmable tailstock and one with a sub-spindle. The NT-2510SY is the sub-spindle machine. Its sub-spindle works under synchronized control with the main spindle, so front and back-end turning are completed in a single machine setup. The companion with the Y axis and no sub-spindle is the NT-2510Y.

Read the spindle rows with care. As printed, they match the NT-208SY line for line: an A2-6 main spindle with an 8 in chuck, 11 / 15 kW (20 HP) and 4,200 rpm, and an A2-5 sub-spindle with a 6 in chuck, 5.5 / 7.5 kW (10 HP) and 5,000 rpm. The differences in the table are small. X travel is 210 + 20 mm, against 200 + 20 mm on the NT-208SY. Anyone choosing this model for a larger chuck or bore should have Campro confirm the spindle specification in writing.

The structure is described in more detail than for the other NT models. Campro cites a one-piece 30° slant bed designed with FEA and 3D CAD, hardened precision box guideways for heavy cutting, and a BMT style live turret for rigidity in forward and reverse turning. The turret has 12 stations, driven tools reach 5,000 rpm, and rapids are 20 / 10 / 24 m/min for X / Y / Z.

Size is 4,254 x 2,141 x 2,381 mm (W x D x H), weight 4,700 kg (10,361 lb) and power capacity 30 kVA.

Full Specifications

Parameter	Value
Swing Over Bed	Ø680 mm (Ø26.7 in)
Swing Over Carriage	Ø460 mm (Ø18.1 in)
Max Turning Length	520 mm (20.4 in)
Max Turning Diameter	Ø400 mm (Ø15.7 in)
X Axis Travel	210 + 20 mm (8.2 in + 0.7 in)
Y Axis Travel	100 (±50) mm (3.9 in (±1.9 in))
Z Axis Travel	630 mm (24.8 in)
Spindle Nose	A2-6
Chuck Size	8 in
Hole Through Draw Tube	Ø52 mm (Ø2.04 in)
Spindle Motor Power	11 / 15 kW (20 HP)
Max Spindle Speed	4,200 rpm
C Axis Indexing	0.001°
Sub Spindle Nose	A2-5
Sub Spindle Chuck Size	6 in
Sub Spindle Power	5.5 / 7.5 kW (10 HP)
Sub Spindle Speed	5,000 rpm
Turret Type	Servo
Turret Stations	12-Station
Turret Tool Shank	□25 / Ø40 mm (BMT-55) (O.D. / I.D.)
Turret Servo Motor	2.2 / 3.7 kW (3.0 / 5.0 hp)
Driven Tool Speed	5,000 rpm
Rapid Traverse Xyz	20 / 10 / 24 m/min (787.4 / 393.7 / 944.8 in/min)
Machine Dimensions	4,254 x 2,141 x 2,381 mm (167 in x 84 in x 93 in) (W x D x H)
Machine Weight	4,700 kg (10,361 lb)
Power Requirement	30 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Y axis of 100 (±50) mm, which Campro says allows servo compensation
Sub-spindle with synchronized control for front and back-end turning in one setup
12-station BMT live turret with driven tools to 5,000 rpm
One-piece 30° slant bed with hardened precision box guideways
X travel of 210 + 20 mm, against 200 + 20 mm on the NT-208SY

Limitations

The published spindle rows are the same as the NT-208SY: 8 in chuck and 11 / 15 kW (20 HP)
Turret servo motor is 2.2 / 3.7 kW
Y rapid of 10 m/min, against 24 m/min in Z
Hole through the draw tube is Ø52 mm (Ø2.04 in), which limits bar size

Best For

Off-centre machining across multiple processes, as Campro describes the Y-axis function Parts finished front and back using the sub-spindle Bar work up to the Ø52 mm (Ø2.04 in) draw tube hole Heavy turning cuts on box ways followed by light milling

Frequently Asked Questions

01 What configuration is the NT-2510SY?

Campro offers two configurations with the Y-axis function, one with a programmable tailstock and one with a sub-spindle. The NT-2510SY is equipped with the sub-spindle, which enables synchronized control with the main spindle for primary and secondary turning operations.

02 What are the spindle figures of the NT-2510SY?

The table lists an A2-6 main spindle with an 8 in hydraulic chuck, 11 / 15 kW (20 HP), 4,200 rpm and a Ø52 mm (Ø2.04 in) draw tube hole, and an A2-5 sub-spindle with a 6 in chuck, 5.5 / 7.5 kW (10 HP) and 5,000 rpm. These rows are identical to those of the NT-208SY.

03 How does the NT-2510SY differ from the NT-208SY?

In the published tables, very little. The NT-2510SY has 210 + 20 mm of X travel against 200 + 20 mm on the NT-208SY. Turning diameter, turning length, Y travel, spindles, turret, weight and overall size are printed the same. Ask Campro what else distinguishes the two.

04 What is the capacity and size of the NT-2510SY?

Maximum turning diameter Ø400 mm (Ø15.7 in), maximum turning length 520 mm (20.4 in), Z travel 630 mm (24.8 in) and Y travel 100 (±50) mm. The machine is 4,254 x 2,141 x 2,381 mm, weighs 4,700 kg (10,361 lb) and needs 30 kVA.
