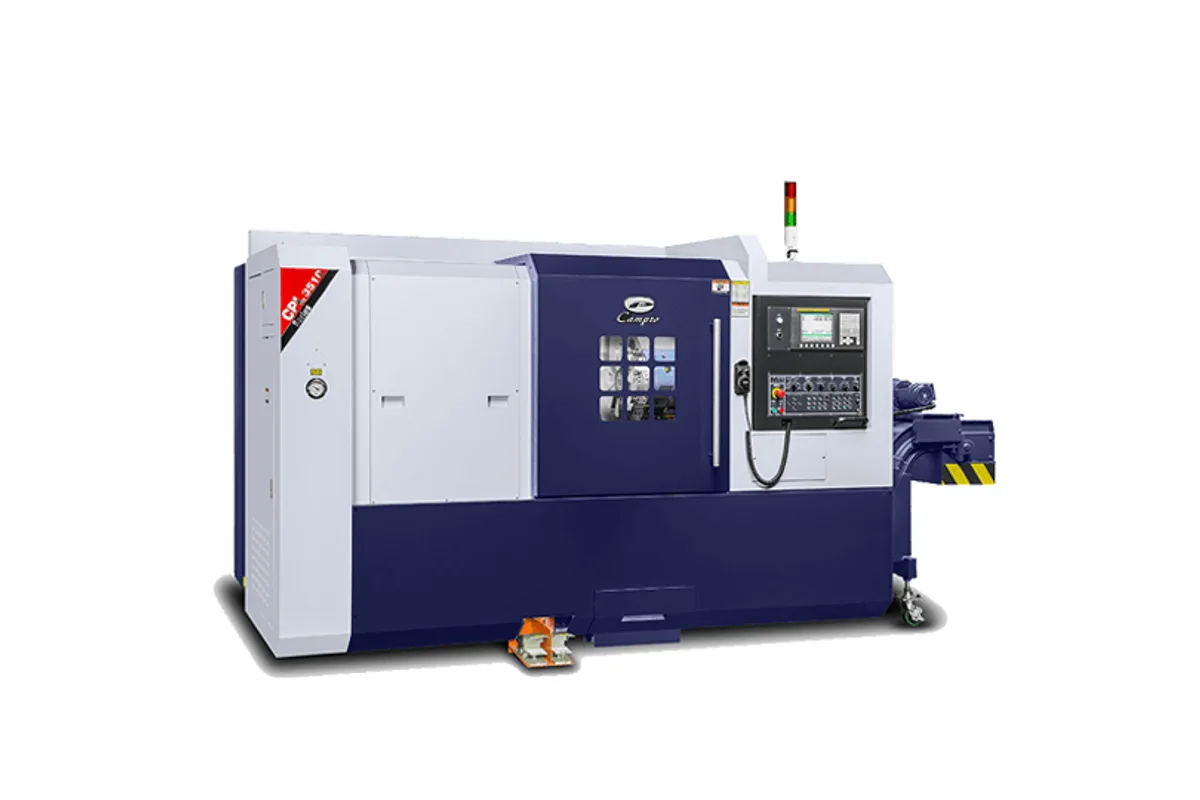

Campro CPL-3510
Image: camprocnc.com, Campro
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
swing over bed
swing over carriage
distance between centers
How much does the Campro CPL-3510 cost?
Price estimate
We do not have a price for the Campro CPL-3510 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Power is what distinguishes the Campro CPL-3510. This 10 in chuck CNC lathe carries a 22 / 26 kW (35 HP) spindle motor, the same rating Campro fits to its largest CPL machines, on a bed that turns Ø400 mm (15.7 in) by 700 mm (27.5 in).
Put that next to the CPL-208, which has the same maximum turning diameter and an 11 / 15 kW (20 HP) motor, and the intent is clear. The CPL-3510 is for taking heavy cuts on mid-size steel parts. The spindle nose is A2-8, the bearing diameter 130 mm (5.1 in) and the hole through the draw tube Ø75 mm (Ø2.9 in), so thick bar and tube can pass through. Speed is limited to 3,000 rpm, which is the trade for the larger spindle. A 12 in chuck is optional.
The bed has grown too. Distance between centers is 810 mm (31.8 in) and Z travel 700 mm (27.5 in). Swing over the bed is Ø570 mm (Ø22.4 in) and over the carriage Ø367 mm (Ø14.4 in). X travel is 200 + 20 mm.
Guideways are still linear on this model, by Campro's description, and rapids are 24 m/min in both axes. A lathe with this much motor on linear guideways will remove metal quickly in continuous cuts; for heavily interrupted cuts a buyer may prefer the box-way NT-208 (Box). The turret has 10 stations with □25 / Ø40 mm tooling, and the tailstock quill is Ø80 mm (Ø3.1 in).
Power capacity is 30 kVA. Weight is 5,500 kg (12,125 lb), and the floor plan with chip conveyor 3,785 x 1,727 mm (149 in x 67 in).
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | Ø570 mm (Ø22.4 in) |
| Swing Over Carriage | Ø367 mm (Ø14.4 in) |
| Distance Between Centers | 810 mm (31.8 in) |
| Max Turning Length | 700 mm (27.5 in) |
| Standard Turning Diameter | Ø320 mm (12.5 in) |
| Max Turning Diameter | Ø400 mm (15.7 in) |
| X Axis Travel | 200 + 20 mm (7.8 in + 0.7 in) |
| Rapid Traverse X | 24 m/min (944.8 in/min) |
| Z Axis Travel | 700 mm (27.5 in) |
| Rapid Traverse Z | 24 m/min (944.8 in/min) |
| Spindle Nose | A2-8 |
| Chuck Size | 10 in (OPT: 12 in) |
| Hole Through Draw Tube | Ø75 mm (Ø2.9 in) |
| Spindle Bearing Diameter | 130 mm (5.1 in) |
| Spindle Motor Power | 22 / 26 kW (35 HP) |
| Max Spindle Speed | 3,000 rpm |
| Turret Type | 10-Stations |
| Turret Tool Shank | □25 / Ø40 mm (O.D. / I.D.) |
| Turret Tool Change Time | 0.3 sec |
| Tailstock Quill Diameter | Ø80 mm (Ø3.1 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Taper | MT-#4 |
| Floor Plan with Chip Conveyor | 3,785 x 1,727 mm (149 in x 67 in) |
| Machine Weight | 5,500 kg (12,125 lb) |
| Coolant Tank Capacity | 110 L (29 gal) |
| Power Requirement | 30 kVA |
Specifications sourced from camprocnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 22 / 26 kW (35 HP) spindle motor on a 10 in chuck lathe
- Ø75 mm (Ø2.9 in) hole through the draw tube and A2-8 spindle nose
- 700 mm (27.5 in) turning length with 810 mm (31.8 in) between centers
- 24 m/min rapids on X and Z
- 12 in chuck available as an option
Limitations
- Spindle speed limited to 3,000 rpm
- Maximum turning diameter of Ø400 mm (15.7 in) is no larger than the CPL-208
- Needs 30 kVA, where the CPL-208 needs 20 kVA
- Coolant tank is only 110 L (29 gal) for a 35 HP machine
Best For
Frequently Asked Questions
01
The spindle motor is 22 / 26 kW (35 HP), driving an A2-8 spindle to 3,000 rpm. That is the same motor rating as the CPL-3512 and well above the 11 / 15 kW (20 HP) of the CPL-208. The spindle bearing diameter is 130 mm (5.1 in).
02
The hole through the draw tube is Ø75 mm (Ø2.9 in). The standard hydraulic chuck is 10 in and a 12 in chuck is listed as an option. Usable bar diameter depends on the chuck and cylinder fitted, so confirm it with Campro.
03
Maximum turning diameter Ø400 mm (15.7 in), standard turning diameter Ø320 mm (12.5 in), maximum turning length 700 mm (27.5 in). X axis travel is 200 + 20 mm and Z axis travel 700 mm (27.5 in). Distance between centers is 810 mm (31.8 in).
04
The floor plan with chip conveyor is 3,785 x 1,727 mm (149 in x 67 in). The machine weighs 5,500 kg (12,125 lb), has a 110 L (29 gal) coolant tank and a power capacity of 30 kVA.
