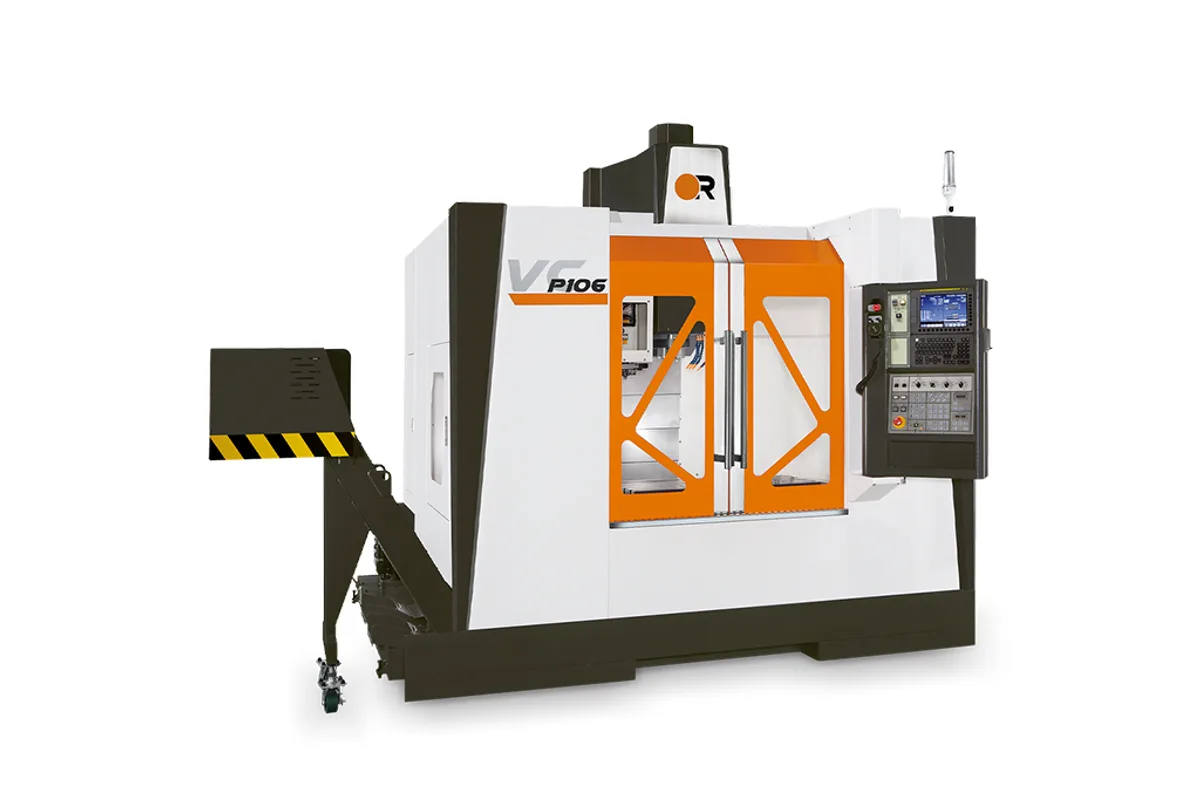

Victor Taichung Vcenter-P106
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Victor Taichung Vcenter-P106 cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-P106 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vcenter-P106 is the metre-class model of the P series: 1,060 mm (41.73 in), 600 mm (23.62 in) and 560 mm (22.04 in) of travel under a 12,000 rpm BBT-40 spindle, with 30 tools in the magazine. It is likely the size most shops look at first, big enough for plates and small mould bases and still quick.
Quick is the operative word. Victor Taichung quotes rapid feeds of 48/48/32 m/min on roller guideways, which is high for a machine with a 1,120 x 520 mm (44.09 x 20.47 in) table. The table takes 600 kg (1,322.77 lb), and the machine weighs 6,450 kg (14,219.79 lb).
Spindle power depends on whether coolant goes through the spindle. The Non CTS column lists 11 / 15 / 18.5 kW (15 / 20 / 25 HP), and the CTS column 7.5 / 11 / 15 kW (10 / 15 / 20 HP). The series notes speak of 18.5 KW at the S3 rating for the 12000rpm spindle.
One option belongs to this model alone: a higher column that extends Z-axis travel to 760mm, for tall parts or a rotary table with a fixture on top. Other options are a 15000 rpm direct-coupled spindle, a 40 tool magazine, linear scales and a 4th/5th axis interface. Bottom guarding with flushing coolant is standard on this size.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,060 mm (41.73 in) |
| Y Axis Travel | 600 mm (23.62 in) |
| Z Axis Travel | 560 mm (22.04 in) |
| Table Size | 1,120 x 520 mm (44.09 x 20.47 in) |
| T-Slots | 5 x 18 x 100 mm |
| Max Table Load | 600 kg (1,322.77 lb) |
| Spindle Taper | BBT-40 |
| Spindle Motor Power | Non CTS: 11 / 15 / 18.5 kW (15 / 20 / 25 HP); CTS: 7.5 / 11 / 15 kW (10 / 15 / 20 HP) |
| Max Spindle Speed | 12,000 rpm |
| Tool Capacity | 30 |
| Max Tool Weight | 7 kg (15.43 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 6,450 kg (14,219.79 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Rapid feeds of 48/48/32 m/min on a metre-class machine
- 12,000 rpm BBT-40 spindle with 30 tools
- Optional higher column with Z-axis travel extended to 760mm
- Bottom guarding flushing coolant and a spindle oil cooler are standard
- Listed accuracy 0.010 mm and repeatability 0.007 mm (±0.0035 mm)
Limitations
- Table load is 600 kg (1,322.77 lb)
- Table depth of 520 mm is less than the 600 mm (23.62 in) Y travel
- CTS machines are listed with the smaller motor rating
- Standard Z travel is 560 mm (22.04 in) unless the higher column is ordered
Best For
Frequently Asked Questions
01
Travels are 1,060 mm (41.73 in) in X, 600 mm (23.62 in) in Y and 560 mm (22.04 in) in Z. The table is 1,120 x 520 mm (44.09 x 20.47 in) and carries 600 kg (1,322.77 lb).
02
Yes. The P series option list includes a higher column with extended Z-axis travel of 760mm, and names the Vcenter-P106 as the model it applies to. Standard Z travel is 560 mm (22.04 in).
03
The standard spindle is BBT-40 at 12,000 rpm. A 15000 rpm direct-coupled spindle is on the option list, as is coolant through the spindle, which the table pairs with a motor of 7.5 / 11 / 15 kW (10 / 15 / 20 HP).
04
A Fanuc 0i-MF Plus control with a 10.4 in screen is listed as standard for the P series. Rigid tapping and a remote handwheel are standard as well.
