Campro CPL-158

Q: How much does the Campro CPL-158 cost?

The price estimate for the Campro CPL-158 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-cpl-158#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

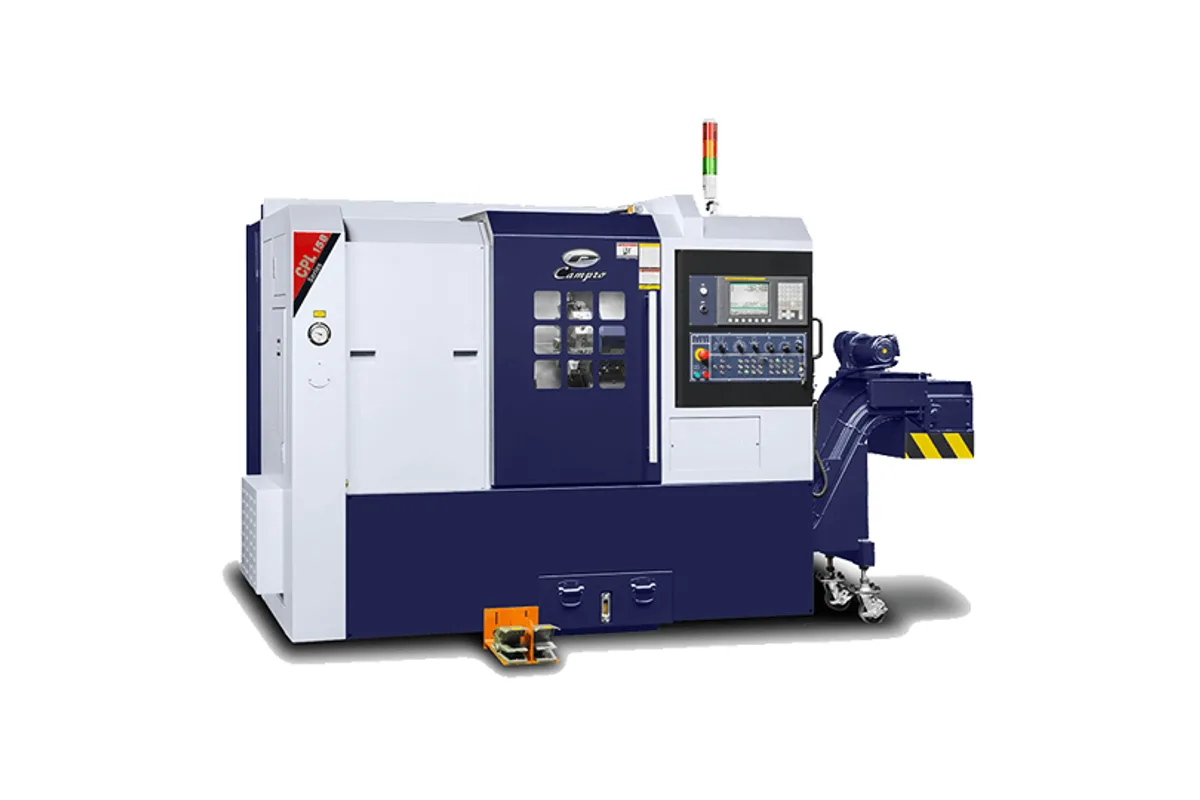

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

4,200 rpm

Spindle Power

7.5 / 11 kW (15 HP)

Max Turn Length

320 mm (12.5 in)

swing over bed

Ø450 mm (Ø17.7 in)

swing over carriage

Ø258 mm (Ø10.1 in)

distance between centers

320 mm (12.5 in)

How much does the Campro CPL-158 cost?

Price estimate

Uncertain

We do not have a price for the Campro CPL-158 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

An 8 in chuck on the smallest bed in the range: the Campro CPL-158 is a short, stout CNC lathe for chucking work. Its maximum turning diameter is Ø270 mm (10.6 in) and its maximum turning length only 320 mm (12.5 in), on the same 2,962 x 1,591 mm (116 in x 62 in) floor plan as the CPL-106.

Compared with that sibling, the spindle is a size larger in every respect. The nose is A2-6, the bearing diameter 100 mm (3.9 in), the hole through the draw tube Ø52 mm (Ø2 in) and the motor 7.5 / 11 kW (15 HP). Top speed is 4,200 rpm. The CPL-106 has an A2-5 nose and 5.5 / 7.5 kW (10 HP). The extra spindle takes room from the axes: X travel is 135 + 20 mm and Z travel 320 mm (12.5 in), each slightly less than on the CPL-106. Machine weight is 3,500 kg (7,716 lb).

So this is the model for discs, flanges, rings and short shafts that need torque at the chuck but no length. Tooling steps up as well, to □25 / Ø40 mm tooling (O.D. / I.D.) in a 10-station turret. A 10 in chuck is offered as an option.

The rest follows the small CPL machines. Rapids are 24 m/min in X and Z on linear guideways, tool change takes 0.3 sec, and the tailstock has a Ø70 mm (Ø2.7 in) quill with 80 mm (3.1 in) of travel. Campro lists a fully enclosed splash guard and ventilation at the heat sources. Coolant capacity is 120 L (31 gal) and power capacity 15 kVA.

Full Specifications

Parameter	Value
Swing Over Bed	Ø450 mm (Ø17.7 in)
Swing Over Carriage	Ø258 mm (Ø10.1 in)
Distance Between Centers	320 mm (12.5 in)
Max Turning Length	320 mm (12.5 in)
Standard Turning Diameter	Ø210 mm (8.2 in)
Max Turning Diameter	Ø270 mm (10.6 in)
X Axis Travel	135 + 20 mm (5.3 in + 0.7 in)
Rapid Traverse X	24 m/min (944.8 in/min)
Z Axis Travel	320 mm (12.5 in)
Rapid Traverse Z	24 m/min (944.8 in/min)
Spindle Nose	A2-6
Chuck Size	8 in (OPT: 10 in)
Hole Through Draw Tube	Ø52 mm (Ø2 in)
Spindle Bearing Diameter	100 mm (3.9 in)
Spindle Motor Power	7.5 / 11 kW (15 HP)
Max Spindle Speed	4,200 rpm
Turret Type	10-Stations
Turret Tool Shank	□25 / Ø40 mm (O.D. / I.D.)
Turret Tool Change Time	0.3 sec
Tailstock Quill Diameter	Ø70 mm (Ø2.7 in)
Tailstock Quill Travel	80 mm (3.1 in)
Tailstock Quill Taper	MT-#4
Floor Plan with Chip Conveyor	2,962 x 1,591 mm (116 in x 62 in)
Machine Weight	3,500 kg (7,716 lb)
Coolant Tank Capacity	120 L (31 gal)
Power Requirement	15 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

8 in chuck and A2-6 spindle in the footprint of the CPL-106: 2,962 x 1,591 mm (116 in x 62 in)
7.5 / 11 kW (15 HP) motor with a 100 mm (3.9 in) spindle bearing diameter
Ø52 mm (Ø2 in) hole through the draw tube for bar work
□25 / Ø40 mm tooling in a 10-station turret
10 in chuck available as an option

Limitations

Maximum turning length is 320 mm (12.5 in), the shortest in the CPL series
Maximum turning diameter of Ø270 mm (10.6 in) is below the Ø290 mm (11.4 in) of the CPL-106
4,200 rpm top speed, against 6,000 rpm on the CPL-106
2-axis only: no C axis, driven tools or sub-spindle in the table

Best For

Short chucking parts such as flanges, discs and rings Bar-fed parts up to the Ø52 mm (Ø2 in) draw tube hole Steel parts that need more torque than a 6 in machine gives High-volume second operations in a small footprint

Frequently Asked Questions

01 What is the turning capacity of the CPL-158?

Standard turning diameter Ø210 mm (8.2 in), maximum turning diameter Ø270 mm (10.6 in), maximum turning length 320 mm (12.5 in). Swing over the bed is Ø450 mm (Ø17.7 in). X axis travel is 135 + 20 mm and Z axis travel 320 mm (12.5 in).

02 Which chuck sizes are offered on the CPL-158?

The hydraulic chuck is 8 in as standard with 10 in as the option. The spindle nose is A2-6, the hole through the draw tube Ø52 mm (Ø2 in), and the spindle runs to 4,200 rpm on a 7.5 / 11 kW (15 HP) motor.

03 How does the CPL-158 compare with the CPL-208?

Both have an A2-6 nose, an 8 in chuck and 4,200 rpm. The CPL-208 is the longer and stronger machine: 500 mm (19.6 in) of turning length, a maximum turning diameter of Ø400 mm (15.7 in) and an 11 / 15 kW (20 HP) motor. The CPL-158 turns 320 mm (12.5 in) with 7.5 / 11 kW (15 HP).

04 What does the CPL-158 weigh and require?

Machine weight is 3,500 kg (7,716 lb). The floor plan with chip conveyor is 2,962 x 1,591 mm (116 in x 62 in). Power capacity is 15 kVA and the coolant tank holds 120 L (31 gal). No air requirement is listed in the table.
