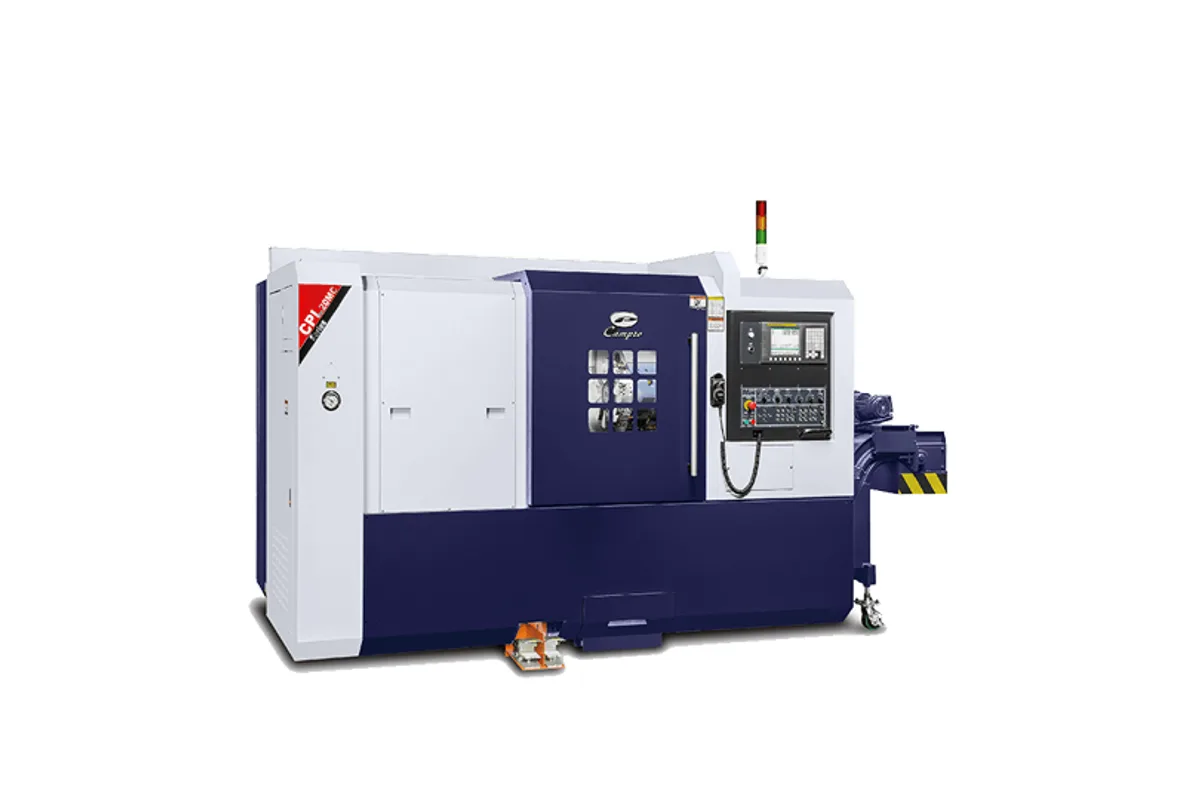

Campro CPL-20MC
Image: camprocnc.com, Campro
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
swing over bed
swing over carriage
max milling length
How much does the Campro CPL-20MC cost?
Price estimate
We do not have a price for the Campro CPL-20MC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With an 8 in chuck, an 11 / 15 kW (20 HP) spindle and a VDI-40 live turret, the Campro CPL-20MC is the mid-size turning and milling center of the CPL-MC series. It turns up to 260 mm (10.2 in) in diameter and 470 mm (18.5 in) in length, and mills over 432 mm (17 in).
For most shops this is the practical size. The spindle is the A2-6, 4,200 rpm unit of the CPL-208, with a Ø52 mm (Ø2 in) hole through the draw tube, so a wide range of bar and chucked parts fits. The step from the CPL-10MC is mainly in the tooling: the larger VDI-40 holders, and a turret servo motor of 3.7 / 5.5 kW in place of the 2.2 / 3.7 kW of the CPL-10MC. Driven tools turn at up to 4,000 rpm.
What the machine does is combine operations. With the C axis indexing in 0.001° steps and every one of the 12 turret positions able to hold a rotating tool, a flange can be turned, drilled on a bolt circle and tapped without leaving the chuck. A shaft can have its keyway milled after turning, held by the tailstock, whose quill is Ø80 mm (Ø3.1 in) with 120 mm (4.7 in) of travel.
The axes are X 200 + 5 mm and Z 475 mm (18.7 in), both at 24 m/min. Campro lists linear guideways for this model and a one-piece 45° box type casting. A 10 in chuck is an option.
Weight is 4,500 kg (9,920 lb), the floor plan with chip conveyor 3,455 x 1,785 mm (136 in x 70 in), power capacity 25 kVA and coolant capacity 110 L (29 gal).
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | 540 mm (21.2 in) |
| Swing Over Carriage | 300 mm (11.8 in) |
| Max Turning Length | 470 mm (18.5 in) |
| Max Milling Length | 432 mm (17 in) |
| Max Turning Diameter | 260 mm (10.2 in) |
| X Axis Travel | 200 + 5 mm (7.8 in + 0.19 in) |
| Rapid Traverse X | 24 m/min (944.8 in/min) |
| Z Axis Travel | 475 mm (18.7 in) |
| Rapid Traverse Z | 24 m/min (944.8 in/min) |
| Spindle Nose | A2-6 |
| Chuck Size | 8 in (OPT: 10 in) |
| Hole Through Draw Tube | Ø52 mm (Ø2 in) |
| Spindle Bearing Diameter | Ø100 mm (Ø3.9 in) |
| Max Spindle Speed | 4,200 rpm |
| Spindle Motor Power | 11 / 15 kW (20 HP) |
| C Axis Indexing | 0.001° |
| Turret Type | 12-Servo |
| Turret System | VDI-40 |
| Turret Tool Change Time | 0.2 sec |
| Turret Servo Motor | 3.7 / 5.5 kW (5.0 / 7.4 hp) |
| Driven Tool Speed | 4,000 rpm |
| Tailstock Quill Diameter | Ø80 mm (Ø3.1 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Taper | MT-#4 |
| Floor Plan with Chip Conveyor | 3,455 x 1,785 mm (136 in x 70 in) |
| Machine Weight | 4,500 kg (9,920 lb) |
| Coolant Tank Capacity | 110 L (29 gal) |
| Power Requirement | 25 kVA |
Specifications sourced from camprocnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 11 / 15 kW (20 HP) spindle with an 8 in chuck and Ø52 mm (Ø2 in) draw tube hole
- 12-position servo live turret on VDI-40, with any position able to drive a tool
- Turret servo motor of 3.7 / 5.5 kW and 4,000 rpm driven tools
- C axis indexing of 0.001°
- Tailstock with Ø80 mm (Ø3.1 in) quill for shaft work
Limitations
- Maximum turning diameter is 260 mm (10.2 in); the 2-axis CPL-208 turns Ø400 mm (15.7 in)
- Driven tool speed of 4,000 rpm is lower than the 5,000 rpm of the CPL-10MC
- No Y axis or sub-spindle in the table
- Needs 25 kVA, against 20 kVA for the CPL-208
Best For
Frequently Asked Questions
01
Maximum turning diameter 260 mm (10.2 in), maximum turning length 470 mm (18.5 in) and maximum milling length 432 mm (17 in). Swing over the bed is 540 mm (21.2 in). X axis travel is 200 + 5 mm and Z axis travel 475 mm (18.7 in).
02
A 12-position servo turret on the VDI-40 system. Maximum tool speed is 4,000 rpm and the turret servo motor is 3.7 / 5.5 kW. Campro says the VDI turret gives a quick change tooling solution, and tool change time is 0.2 sec.
03
The CPL-208 is the 2-axis lathe with a 10-station turret and a Ø400 mm (15.7 in) maximum turning diameter. The CPL-20MC adds a C axis and a live turret, and its maximum turning diameter is 260 mm (10.2 in). Both use an A2-6 spindle at 4,200 rpm with 11 / 15 kW (20 HP).
04
A floor plan of 3,455 x 1,785 mm (136 in x 70 in) with the chip conveyor, and a 25 kVA supply. The machine weighs 4,500 kg (9,920 lb) and its coolant tank holds 110 L (29 gal).
