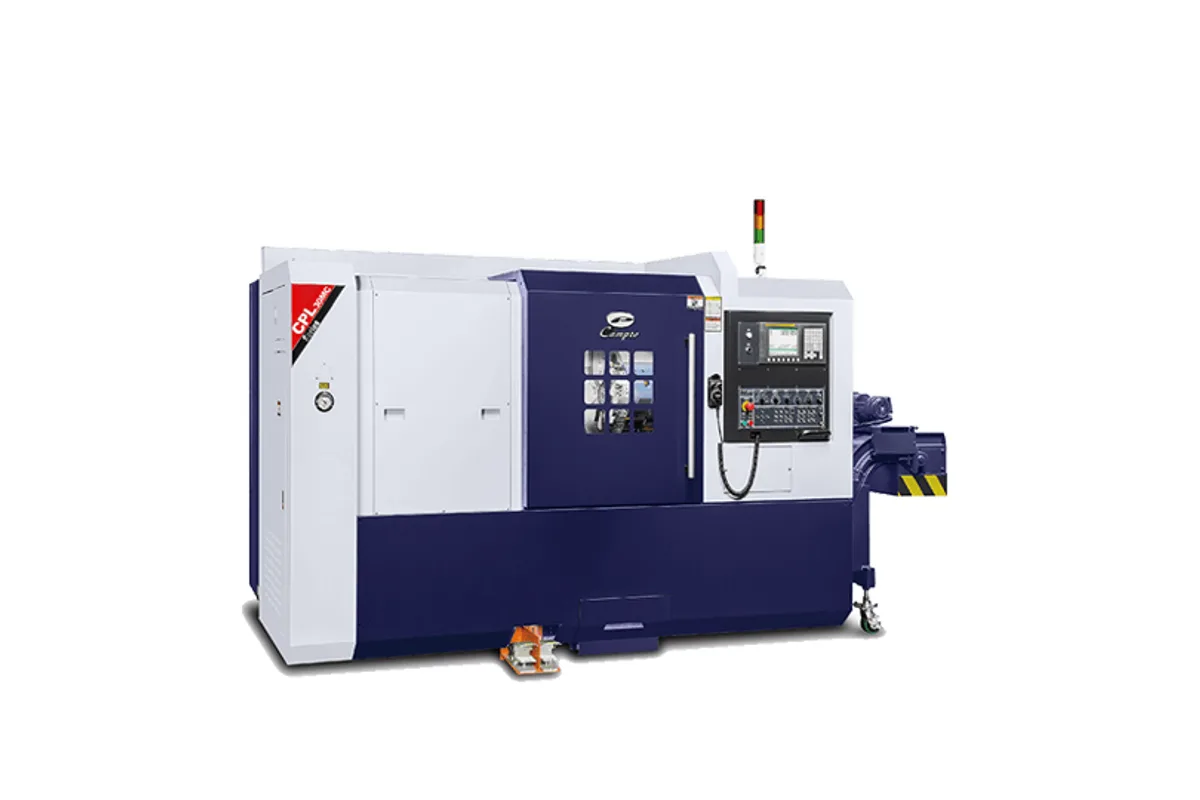

Campro CPL-30MC
Image: camprocnc.com, Campro
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
swing over bed
swing over carriage
max milling length
How much does the Campro CPL-30MC cost?
Price estimate
We do not have a price for the Campro CPL-30MC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Campro CPL-30MC stretches the maker's VDI-40 turning and milling center to 670 mm (26.3 in) of turning length and gives it a 10 in chuck and a Ø75 mm (Ø2.9 in) hole through the draw tube. Maximum turning diameter is 260 mm (10.2 in).
Longer, thicker stock is the reason for this model. The A2-8 spindle passes bar that the CPL-20MC cannot, and the extra bed means shafts can be turned and milled between chuck and tailstock over 632 mm (24.8 in) of milling length. The spindle motor is 15 / 18.5 kW (25 HP) with a 3,000 rpm limit, and a 12 in chuck is optional.
Two comparisons help place it. Against the CPL-20MC, the turret is the same: VDI-40, 12 positions, a 3.7 / 5.5 kW servo motor and 4,000 rpm driven tools. Milling capacity has not grown with the spindle. Against the 2-axis CPL-3510, which has the same chuck and bore, this machine has the smaller main motor; the CPL-3510 is listed at 22 / 26 kW (35 HP). So the CPL-30MC is the choice for finished parts in one setup, and the CPL-3510 for heavy roughing.
The C axis indexes at 0.001°. X travel is 200 + 5 mm and Z travel 675 mm (26.5 in), with 24 m/min rapids on linear guideways. The tailstock quill is Ø80 mm (Ø3.1 in) with an MT-#4 taper.
The floor plan with chip conveyor is 3,875 x 1,785 mm (152 in x 70 in). The machine weighs 5,500 kg (12,125 lb) and needs 30 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | 570 mm (22.4 in) |
| Swing Over Carriage | 335 mm (13.1 in) |
| Max Turning Length | 670 mm (26.3 in) |
| Max Milling Length | 632 mm (24.8 in) |
| Max Turning Diameter | 260 mm (10.2 in) |
| X Axis Travel | 200 + 5 mm (7.8 in + 0.19 in) |
| Rapid Traverse X | 24 m/min (944.8 in/min) |
| Z Axis Travel | 675 mm (26.5 in) |
| Rapid Traverse Z | 24 m/min (944.8 in/min) |
| Spindle Nose | A2-8 |
| Chuck Size | 10 in (OPT: 12 in) |
| Hole Through Draw Tube | Ø75 mm (Ø2.9 in) |
| Spindle Bearing Diameter | Ø130 mm (Ø5.1 in) |
| Max Spindle Speed | 3,000 rpm |
| Spindle Motor Power | 15 / 18.5 kW (25 HP) |
| C Axis Indexing | 0.001° |
| Turret Type | 12-Servo |
| Turret System | VDI-40 |
| Turret Tool Change Time | 0.2 sec |
| Turret Servo Motor | 3.7 / 5.5 kW (5.0 / 7.4 hp) |
| Driven Tool Speed | 4,000 rpm |
| Tailstock Quill Diameter | Ø80 mm (Ø3.1 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Taper | MT-#4 |
| Floor Plan with Chip Conveyor | 3,875 x 1,785 mm (152 in x 70 in) |
| Machine Weight | 5,500 kg (12,125 lb) |
| Coolant Tank Capacity | 110 L (29 gal) |
| Power Requirement | 30 kVA |
Specifications sourced from camprocnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 670 mm (26.3 in) turning length and 632 mm (24.8 in) milling length
- A2-8 spindle with a Ø75 mm (Ø2.9 in) hole through the draw tube
- 15 / 18.5 kW (25 HP) spindle motor with a 10 in chuck, 12 in optional
- 12-position VDI-40 servo live turret and 0.001° C axis
- 24 m/min rapids on both axes
Limitations
- Turret drive is unchanged from the CPL-20MC: 3.7 / 5.5 kW and 4,000 rpm
- Maximum turning diameter stays at 260 mm (10.2 in)
- Main motor is smaller than the 22 / 26 kW (35 HP) of the CPL-3510
- Spindle speed limited to 3,000 rpm; no Y axis
Best For
Frequently Asked Questions
01
Maximum turning diameter is 260 mm (10.2 in), maximum turning length 670 mm (26.3 in) and maximum milling length 632 mm (24.8 in). Swing over the bed is 570 mm (22.4 in). The hole through the draw tube is Ø75 mm (Ø2.9 in).
02
The main spindle motor is 15 / 18.5 kW (25 HP) at up to 3,000 rpm on an A2-8 nose. The turret servo motor for driven tools is 3.7 / 5.5 kW, and maximum tool speed is 4,000 rpm.
03
The CPL-3512MC is the next size: a 12 in chuck on an A2-11 spindle with a Ø117.5 mm (Ø4.6 in) bore, 955 mm (37.5 in) of turning length, a VDI-50 turret and a 5.5 / 7.5 kW turret servo motor. The CPL-30MC has a 10 in chuck, a Ø75 mm (Ø2.9 in) bore and a VDI-40 turret.
04
Campro states that CPL-10MC to 3512MC use high rigidity, high precision linear guideways, on a one-piece 45° box type structure made from cast iron. It also describes an AC spindle motor drive and a finned headstock for heat dissipation.
