Campro NT-208SM

Q: How much does the Campro NT-208SM cost?

The price estimate for the Campro NT-208SM is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-nt-208sm#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

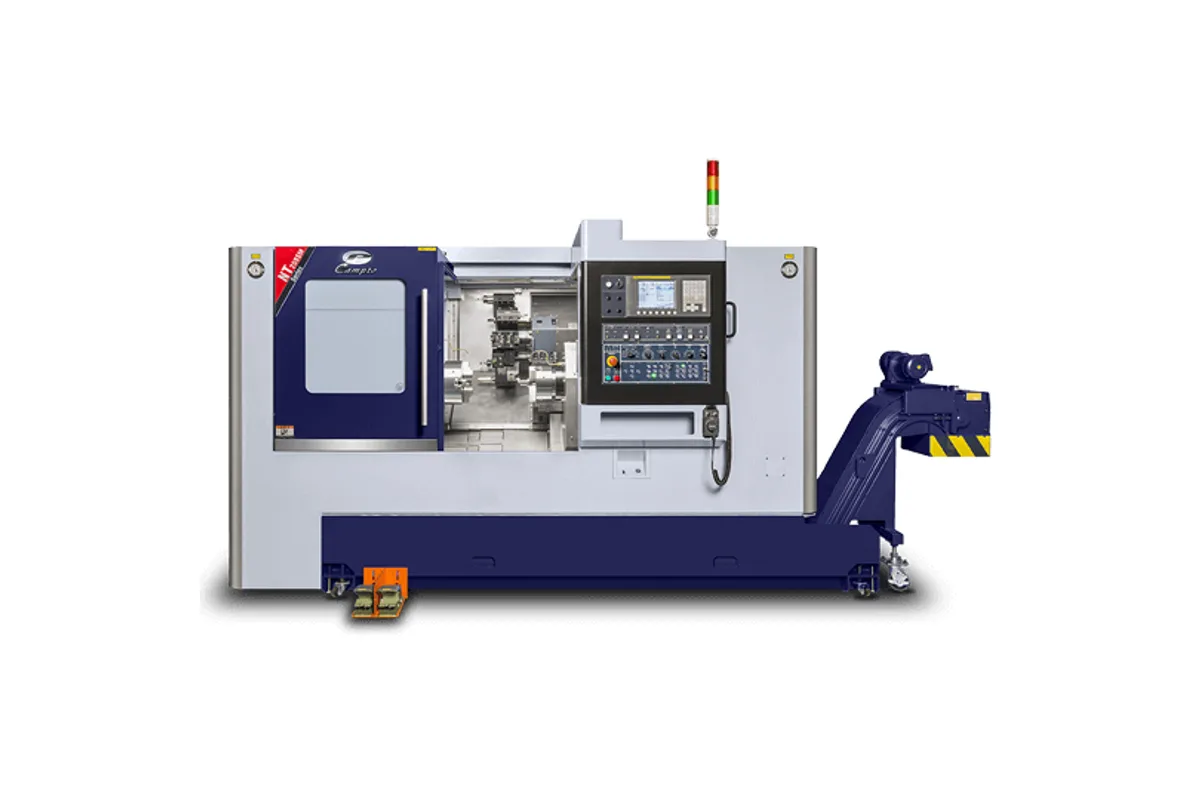

Campro NT-208SM turning and milling center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

4,200 rpm

Spindle Power

11 / 15 kW (20 HP)

Max Turn Length

520 mm (20.4 in)

swing over bed

Ø660 mm (Ø25.9 in)

swing over carriage

Ø460 mm (Ø18.1 in)

max turning diameter

Ø400 mm (Ø15.7 in)

How much does the Campro NT-208SM cost?

Price estimate

Uncertain

We do not have a price for the Campro NT-208SM that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Campro NT-208SM is a twin-spindle turning and milling center: an 8 in main spindle, a 6 in sub-spindle and a 12-station servo live turret with C-axis control, on the box-way slant bed of the NT series. It has no Y axis.

Campro sums up the purpose as synchronized control of the two spindles to complete the greatest possible amount of primary and secondary turning in one compact platform. A part is machined in the main spindle, handed to the sub-spindle with both turning in step, and finished on the back. Add driven tools at up to 5,000 rpm and a C axis indexing at 0.001°, and holes and flats can be put on both ends without a second machine.

The two spindles are sized differently. The main is A2-6 with 11 / 15 kW (20 HP), 4,200 rpm and a Ø52 mm draw tube hole. The sub is A2-5 with 5.5 / 7.5 kW (10 HP) and 5,000 rpm. Heavy cuts therefore belong on the first side, and the second side should be planned as the lighter operation.

Maximum turning diameter is Ø400 mm (Ø15.7 in) and maximum turning length 520 mm (20.4 in). Z travel is 630 mm (24.8 in), against 530 mm (20.8 in) on the plain NT-208S, and X travel is 200 + 20 mm. Rapids are 24 m/min on both axes. The turret takes □25 / Ø40 mm tooling on a BMT-55 interface, with a 2.2 / 3.7 kW servo motor for the live tools.

The footprint is 4,254 x 2,256 x 1,842 mm (W x D x H). Weight is 4,700 kg (10,361 lb) and power capacity 25 kVA.

Full Specifications

Parameter	Value
Swing Over Bed	Ø660 mm (Ø25.9 in)
Swing Over Carriage	Ø460 mm (Ø18.1 in)
Max Turning Length	520 mm (20.4 in)
Max Turning Diameter	Ø400 mm (Ø15.7 in)
X Axis Travel	200 + 20 mm (7.8 in + 0.78 in)
Z Axis Travel	630 mm (24.8 in)
Rapid Traverse Xz	24 / 24 m/min (944.8 / 944.8 in/min)
Spindle Nose	A2-6
Chuck Size	8 in
Hole Through Draw Tube	Ø52 mm (Ø2.04 in)
Spindle Motor Power	11 / 15 kW (20 HP)
Max Spindle Speed	4,200 rpm
C Axis Indexing	0.001°
Sub Spindle Nose	A2-5
Sub Spindle Chuck Size	6 in
Sub Spindle Power	5.5 / 7.5 kW (10 HP)
Sub Spindle Speed	5,000 rpm
Turret Type	Servo Live Turret
Turret Stations	12-Station
Turret Tool Shank	□25 / Ø40 mm (BMT-55) (O.D. / I.D.)
Turret Servo Motor	2.2 / 3.7 kW (3.0 / 5.0 hp)
Driven Tool Speed	5,000 rpm
Machine Dimensions	4,254 x 2,256 x 1,842 mm (167 in x 88 in x 72 in) (W x D x H)
Machine Weight	4,700 kg (10,361 lb)
Power Requirement	25 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

8 in main spindle and 6 in sub-spindle with synchronized control
12-station servo live turret, BMT-55, with driven tools to 5,000 rpm
C axis indexing at 0.001°
24 / 24 m/min rapids in X / Z
Compact for a twin-spindle machine: 4,700 kg (10,361 lb) and 25 kVA

Limitations

No Y axis; off-centre features need the NT-208SY
Sub-spindle motor is 5.5 / 7.5 kW (10 HP), half the main spindle rating
Turret servo motor of 2.2 / 3.7 kW keeps milling light
No tailstock, so long shafts cannot be centre-supported

Best For

Parts turned and drilled on both ends in one cycle Bar-fed production with automatic transfer to the sub-spindle Fittings, couplings and small housings with cross holes Shops replacing two lathe operations and a drilling operation

Frequently Asked Questions

01 What do the two spindles of the NT-208SM offer?

The main spindle is A2-6 with an 8 in chuck, 11 / 15 kW (20 HP) and 4,200 rpm. The sub-spindle is A2-5 with a 6 in chuck, 5.5 / 7.5 kW (10 HP) and 5,000 rpm. Campro describes synchronized control of the two for primary and secondary turning on one platform.

02 Can the NT-208SM mill and drill?

Yes. It has a servo live turret with 12 stations on a BMT-55 interface, a maximum tool speed of 5,000 rpm and a 2.2 / 3.7 kW turret servo motor, with C-axis indexing of 0.001°. There is no Y axis, so features lie on the spindle centreline or are placed with the C axis.

03 How does the NT-208SM differ from the NT-208SY?

The NT-208SY adds a Y axis with 100 (±50) mm of travel and is taller, at 4,254 x 2,141 x 2,381 mm, with a 30 kVA power capacity. The NT-208SM has no Y axis, needs 25 kVA and rapids at 24 / 24 m/min in X / Z.

04 What is the turning capacity of the NT-208SM?

Maximum turning diameter is Ø400 mm (Ø15.7 in) and maximum turning length 520 mm (20.4 in). Swing over the bed is Ø660 mm (Ø25.9 in) and over the carriage Ø460 mm (Ø18.1 in). The hole through the draw tube is Ø52 mm (Ø2.04 in).
